Case Study: M Series Connectors Empower Industrial Camera Systems

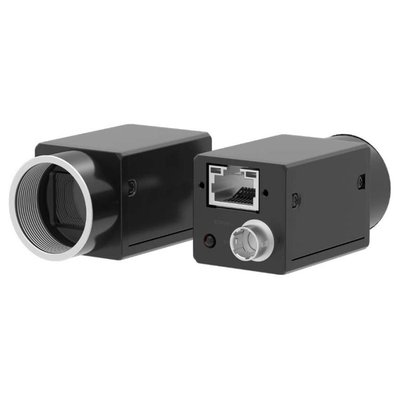

In the era of industrial automation and intelligent manufacturing, industrial cameras serve as the "eyes" of machine vision systems, performing precision inspection, recognition, and positioning tasks. Behind every stable imaging system lies a crucial component — the M Series Connectors from Shenzhen STA Electronics Co., Ltd. With excellent protection, high-speed data transmission, and structural reliability, the STA M Series has become the invisible yet indispensable guardian of industrial camera systems.

M Series Connectors — Engineered for Harsh Industrial Environments

The STA M Series covers M5, M8, M9, M12, M16, M23, M40, and 7/8 series, offering both panel-mount and cable-end configurations. They provide threaded and snap-lock coupling options, ensuring secure and stable connections under vibration and frequent plug-unplug conditions.

Among them, M8 and M12 connectors are most widely used in industrial camera systems for their compact size, power-signal hybrid capability, and standardized interface.

• M8 series complies with IEC 61076-2-104 standard
• M12 series complies with IEC 61076-2-101 and supports Industrial Ethernet, NMEA2000, and Industry 4.0 standards



Core Advantages of STA M Series Connectors

1. Stable High-Speed Data Transmission

M8 4-pin D-coded and M12 4-pin D-coded connectors support 100 Mbps Ethernet; M12 8-pin X-coded connectors enable up to 10Gb/s transmission — meeting the latest Industrial Ethernet standards. They ensure reliable, lossless data transfer for high-speed image acquisition.

2. Excellent Protection and Durability

All M Series connectors are rated IP67 for dustproof and waterproof performance. Threaded or snap-lock coupling provides strong anti-vibration capability, maintaining stable signals even in harsh industrial environments.

3. Premium Material and Craftsmanship

• Gold-plated contacts for superior conductivity and corrosion resistance
• Brass housings withstand over 48-hour salt spray tests
• Optional stainless-steel versions available for outdoor or medical applications

4. Reliable Electrical Performance

M12 4-pin A-coded connectors support 4A/250V, while 5-pin versions support 4A/60V — ensuring safe and stable power delivery for industrial camera systems.

5. Flexible Cable Assembly Options

STA provides multiple customized cable solutions:

• M8 5-pin power cables
• M12 12-pin hybrid power + signal cables
• M12 17-pin high-density cables

Typical Application Scenarios

• High-Speed Production Line Inspection – M8 5-pin connectors transmit trigger signals for real-time image capture and defect detection.
• Robotic Vision Systems – M8 4-pin or 6-pin connectors deliver control signals for accurate positioning and object recognition.
• High-Precision Detection Equipment – M12 X-coded connectors enable 10GigE + PoE data and power transfer for micro-defect inspection.
• Smart Logistics Sorting – M12 D-coded connectors connect cameras to PoE switches for high-speed barcode scanning.
• Medical and Laboratory Automation – M12 A-coded connectors ensure integrated data, control, and power connectivity in IVD and imaging systems.

Conclusion — Reliable Connectivity for Intelligent Vision

In the Industry 4.0 era, the stability of industrial cameras determines the precision and efficiency of entire production systems. The STA M Series Connectors, with their rugged design, high-speed transmission, and environmental adaptability, are the ideal connection solution for industrial vision applications.

At STA Electronics, we uphold the principle of “Professional Focus, Perfect Every Connection”, continuously advancing industrial connection technology to provide reliable solutions for global automation and vision industries.
