In high-precision PTZ (Pan-Tilt-Zoom) infrared thermal imaging systems, stable electrical connectivity is the "nervous system" of the entire unit. Connectors like the MIL-DTL-26482 Series (PT06E 10-6S / PT02E 10-6P) serve as the critical hub for power, control signals, and high-definition video data. In environments ranging from North American industrial sites to European border security, these military-standard connectors prevent system failures and ensure precise temperature monitoring.
Thermal sensors capture incredibly subtle temperature variances. Any resistance in the signal path can degrade image clarity.
Gold-Plated Contacts: STA’s 26482 series features gold-plated copper contacts, ensuring minimal contact resistance (<5mΩ) and maximum conductivity.
Environmental Sealing: With an IP67/IP68 rating, our PT series utilizes multiple seals (shell, peripheral, and interface) to block moisture and dust, essential for outdoor surveillance.
To assist engineers in quick selection, we provide a cross-reference for standard mounting styles compatible with Amphenol PT and ITT Cannon KPT series:
| Model (STA/Mil) | Mounting Style | Key Application | Intermateable Brands |
|---|---|---|---|
| PT02E / MS3112 | Box Mount Receptacle | Compact internal panel mounting | Amphenol PT, ITT Cannon |
| PT06E / MS3116 | Straight Plug | Cable-to-panel connection with strain relief | Souriau 851, Glenair |
| PT07E / MS3114 | Jam Nut Receptacle | Single-hole rear panel mounting (O-ring) | Military Std 26482 |
| PT00E / MS3110 | Wall Mount Receptacle | Cable protection for external enclosures | Global Industry Standard |
Plug Or Receptacle Selection Drawings |
||||||
|
|
|
|
|
|
|
|
|

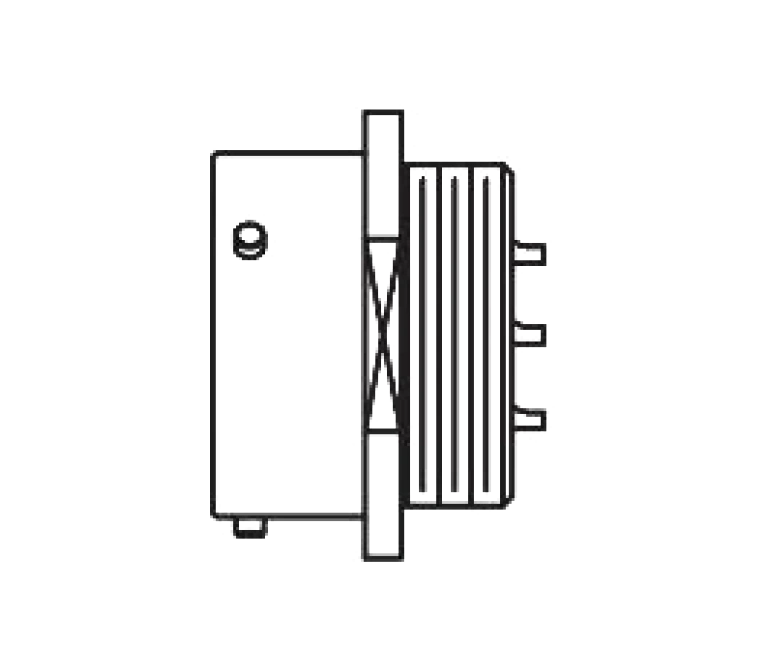

MS3110(PT00,SP00,PW00,KPT00,85100) – Wall Mounting Receptacle |

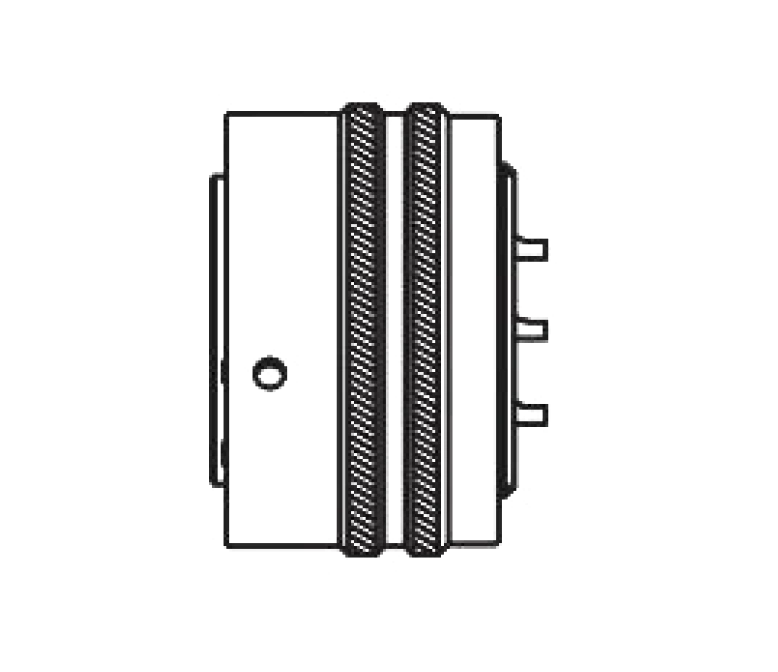

MS3111(PT01,PW01,KPT01,85101) – Cable Connecting Plug |

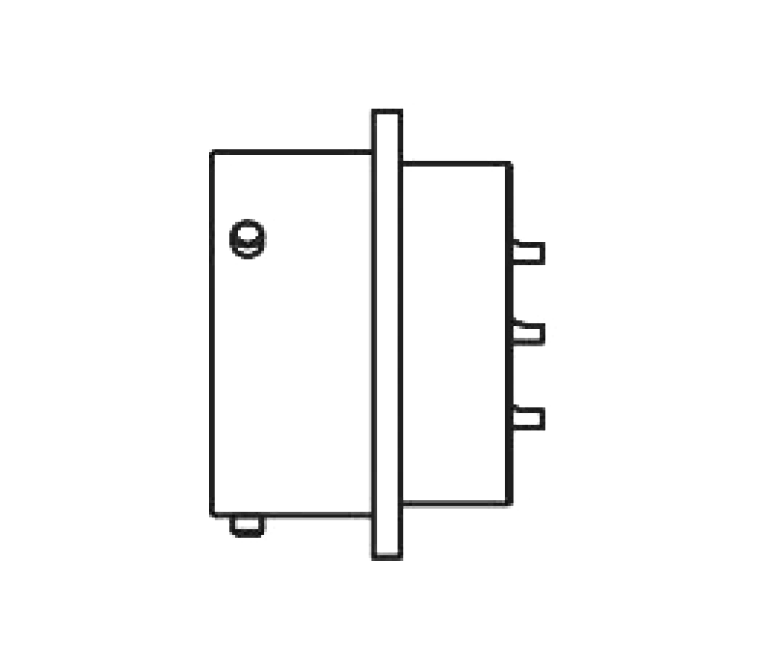

MS3112(PT02,PW02,KPT02,85102E-50) – Box Mounting Receptacle |

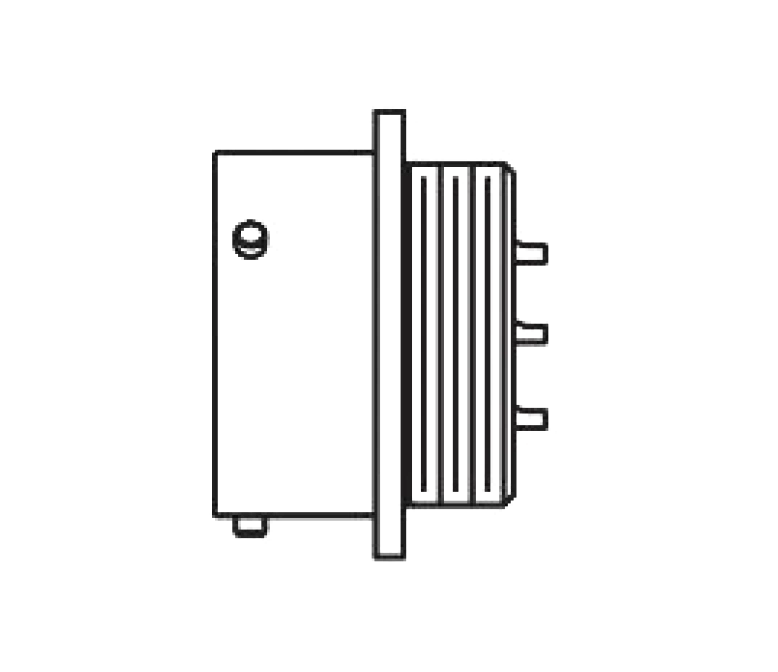

MS3114(PT07,PW07,KPT07,85107) – Jam Nut Mounting Receptacle |

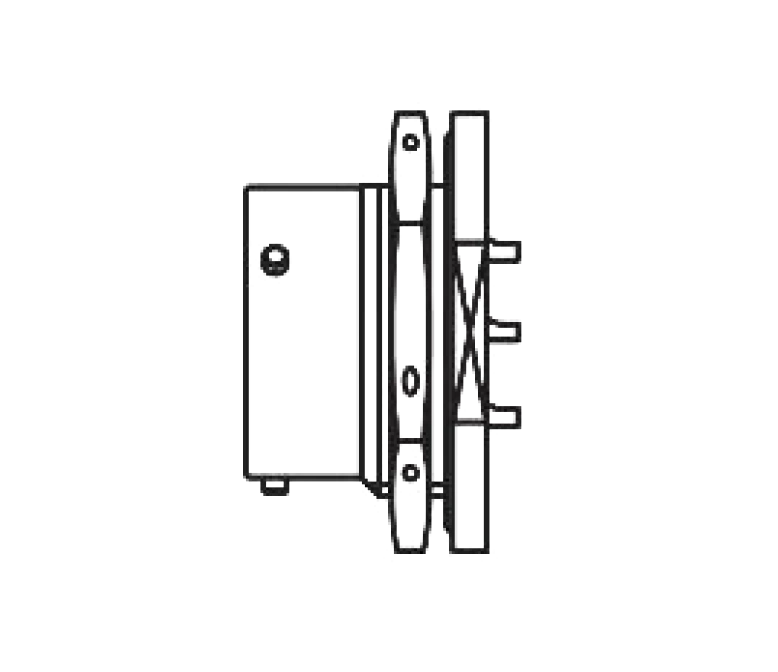

MS3114A(PT07A,PW07A,KPT07A,85107A) – Jam Nut Receptacle |

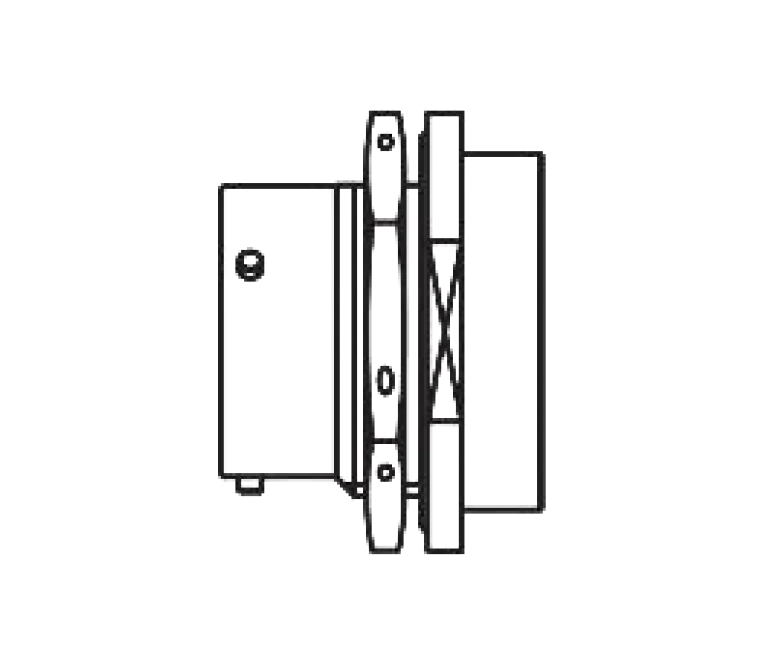

MS3116(PT06,PW06,KPT06,85106) – Straight Plug |

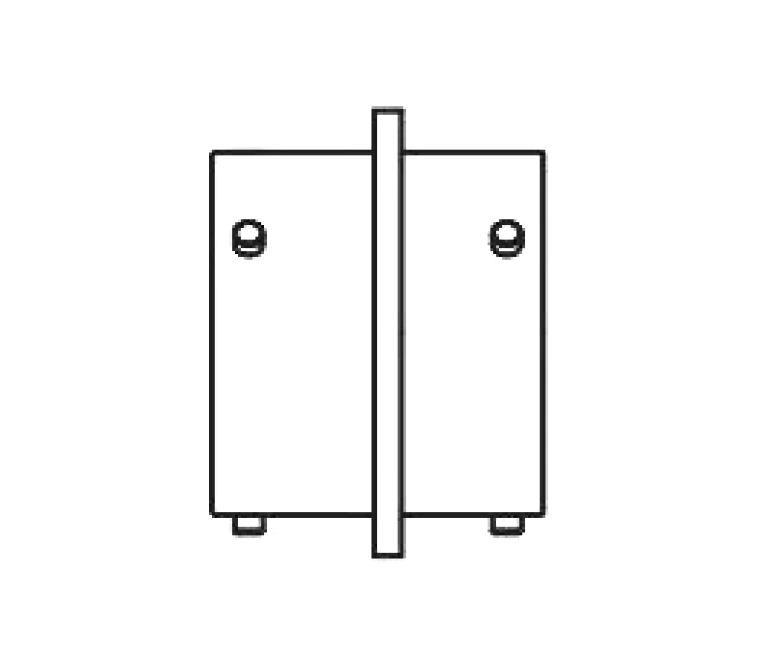

MS3119(PTB) – Thru-Bulkhead Receptacle |
Durability for Dynamic PTZ Rotation
PTZ systems involve continuous 360° horizontal movement. The Bayonet Quick-Locking mechanism of the 26482 series resists intense vibration and prevents accidental decoupling, ensuring over 500 mating cycles of reliability.
Conclusion:
As a leading manufacturer based in Shenzhen, China, STA Electronics provides cost-effective, high-reliability alternatives for global integrators. Our products meet UL, TUV, and VDE standards, ensuring your systems are ready for international export.
