In flight control computer systems, the precision and stability of signal transmission directly determine aircraft control quality and mission safety. As a specialist in high-end military and aerospace interconnect fields,
STA Electronics proudly highlights its

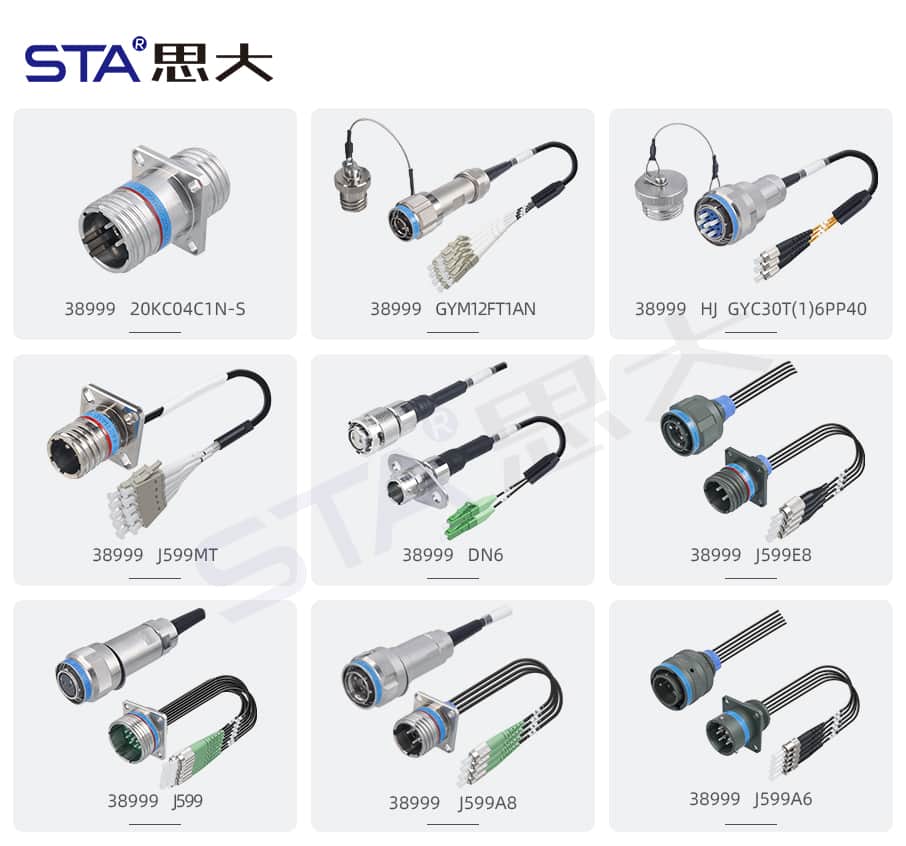

J599A8 (ARINC 801) Fiber Optic Connector series. As an extension of the American standard
MIL-DTL-38999 Series III, our interfaces strictly follow the
GJB599B (MIL-DTL-38999) standards, with performance fully compliant with
ARINC 801. It is engineered to provide stable, reliable multi-channel fiber communication for flight control computers in aerospace, marine, and high-end electronic systems.
Technical Specifications & Optical Performance
| Feature / Parameter |
Technical Specification & Performance Details |
| Product Series |
STA J599A8 Series (ARINC 801 Standard) |
| Ferrule Technology |
1.25mm standard ceramic ferrule array with ultra-high alignment accuracy |
| Insertion Loss |
≤ 0.6 dB (Excellent optical performance with no signal attenuation) |
| Return Loss |
≥ 20 dB @ 850nm | ≥ 40 dB @ 1310nm |
| Mechanical Life |
≥ 500 mating cycles |
| Tensile Strength |
≥ 68 N |
| Operating Temperature |
-55°C to +125°C (Perfect for high-altitude extreme environments) |
| Compliance & Certifications |
GJB599B, MIL-DTL-38999 Series III, ARINC 801, CE, RoHS, UL |
Key Benefits for Flight Control Computer Applications
- Ultimate EMI/RFI Immunity: It completely eliminates signal crosstalk or distortion caused by complex airborne electromagnetic environments, ensuring zero-error transmission of critical flight control commands.
- High Bandwidth & Low Loss: It easily meets the massive, real-time data transmission demands of modern avionics.
- Lightweight Design: It reduces the overall payload of the aircraft, directly boosting flight efficiency and performance.
- Robust Environment Resistance: Featuring heavy-duty salt spray protection and high hermetic sealing, it withstands extreme vibration and thermal shocks.
Design Features for Seamless Integration
1. Easy Maintenance with Removable Alignment Sleeve Arrays
The ceramic alignment sleeve (sleeve array) can be completely detached and replaced, making field maintenance and post-installation support incredibly efficient.
2. Fool-Proof 5-Keyway Polarization
A precision 5-keyway positioning layout effectively prevents mis-mating and incorrect insertion, safeguarding complex electronics from manual installation errors.
3. Full Range of Shell Sizes (11# to 25#)
Available in full shell sizes from size 11 to 25 with complete plug and receptacle configurations. It seamlessly adapts to different channel counts and limited physical installation spaces.
Cross-Reference & Global Supply Chain Security
As fly-by-light (FBL) technology becomes the standard in modern aerospace and defense industries, the demand for mil-spec fiber optic connectors continues to spike.
STA J599A8 (ARINC 801) connectors are 100% intermateable and interchangeable with industry equivalents from Amphenol and ITT Cannon. It serves as a high-performance, cost-effective, and highly reliable alternative solution, resolving global supply chain bottlenecks and lead-time issues for major equipment manufacturers.
About STA Electronics: Your Trusted Interconnect Partner
Founded in 2008 and headquartered in Shenzhen, with advanced R&D and manufacturing bases in Huizhou, Shenzhen STA Electronics Co., Ltd. is an integrated interconnect solution provider combining in-house R&D, manufacturing, and global distribution.
Our facility is
ISO9001 and IATF 16949 certified, covering a full internal supply chain from product conceptual design, simulation, mold making, and precision machining to automated assembly. We offer custom capabilities spanning Euro-style connectors, terminal blocks, aviation plugs, waterproof connectors, heavy-duty connectors, and RF coaxial connectors across industrial, energy (solar & storage), telecommunications, and autonomous transport markets.
Looking for a Mil-Spec Fiber Optic Solution?
Contact STA Engineers Today for technical datasheets, 3D CAD models, or custom cable assembly quotes!
