Introduction: The First Line of Defense in Industrial IoT
In the era of Industry 4.0 and the Industrial Internet of Things (IIoT), industrial edge gateways act as crucial communication bridges linking physical field devices to cloud platforms. These devices are heavily deployed in harsh environments such as factory automation lines, outdoor cabinets, intelligent cell sites, and mobile vehicular terminals. However, high-density dust, humidity, severe mechanical vibrations, and severe electromagnetic interference (EMI) frequently threaten data integrity, often causing signal dropouts and unexpected downtime.
To deliver high-density, multi-signal, and absolutely stable power and data transmissions within a compact enclosure, engineers consistently turn to M12 waterproof connectors. Due to their globally standardized circular architecture and rugged electrical performance, M12 interfaces have become the definitive interconnect standard for modern edge computing hardware.
As a premier interconnect manufacturer with 20 years of deep industry expertise, Shenzhen Sta Electronic Co., Ltd. (STA) delivers a comprehensive portfolio of industrial-grade M12 aviation plugs specifically optimized to resolve the field connection challenges of edge gateways.
Table of Contents
- STA M12 Connector Selection Matrix for Edge Gateways
- Interface Integration: M12 Coding and Pin Count Selection Guide
- Technical Edge: Why Edge Gateways Demand STA M12 Connectors
- Top 5 Deployment Scenarios in Modern Industry
- Frequently Asked Questions (FAQ)

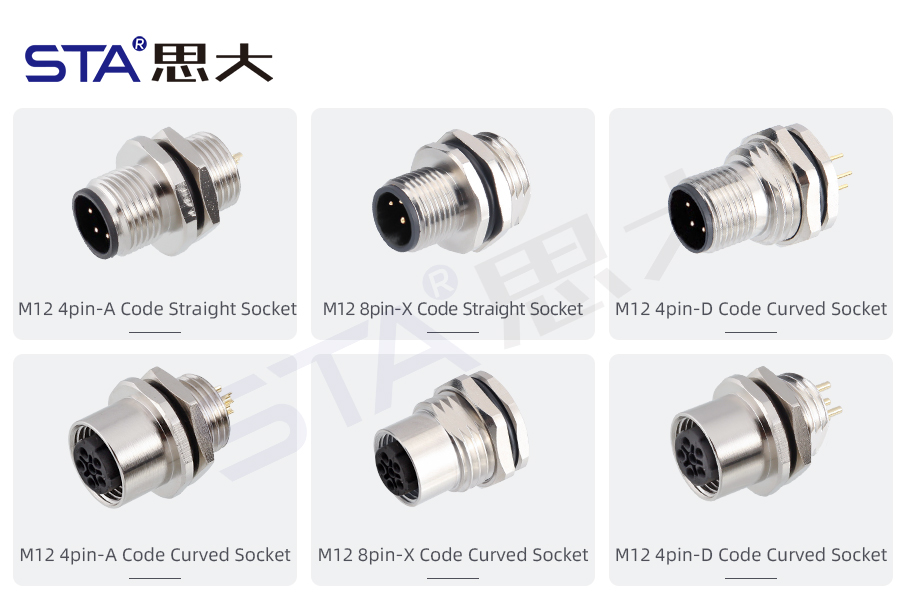

To streamline the procurement and engineering design process, STA has curated a high-performance selection of M12 panel-mount receptacles and overmolded cable assemblies tailored for edge computing nodes:
| Model Number |
Coding & Pin Configuration |
Description & Core Functions |
International Certifications |
M12T-02PBM-GW16
M12T-03PBM-GW16 |
M12 T-Coded
(2-Pin / 3-Pin)
Front Panel Mount Male Receptacle |
High-Current DC Power Supply: Engineered explicitly for high-power edge gateways and industrial PCs requiring robust DC power inputs. T-coding handles higher amperage safely with IP67 ingress protection. |
CE, RoHS, UL, VDE, TUV |
| M12D-04PBF-GP16 |
M12 D-Coded
(4-Pin)
Front Panel Mount Female Receptacle |
Standard Industrial Ethernet: Seamlessly interfaces with PLCs, sensors, and remote I/O blocks. Optimally transmits Profinet, EtherNet/IP, and Modbus TCP industrial protocols. |
CE, RoHS, UL, CQC |
| M12X-08PBF-GP16 |
M12 X-Coded
(8-Pin)
High-Speed Cat6a Shielded Socket |
High-Speed Data & Vision: Supports ultra-fast 10Gbps Gigabit/10-Gigabit Ethernet transmission. Equipped with a 360° complete shielding cross-structure for high-frequency data logging. |
CE, RoHS, UL |
M12A-04PBF-GP16
M12A-05PBF-GP16 |
M12 A-Coded
(4-Pin / 5-Pin)
Serial Bus & Sensor Interface |
Fieldbus & Analog I/O Link: Universally adopted for RS485, CANopen, and Modbus RTU instrument connectivity. Also handles 4-20mA / 0-10V analog sensor signals. |
CE, RoHS, UL, CSA |
| M12A-08PBF-GP16 |
M12 A-Coded
(8-Pin)
Multi-Signal Receptacle |
Multi-Channel Serial Integration: Enables a single tight panel footprint to manage multiple serial ports (RS232/RS422), maximizing space-saving layout efficiency. |
CE, RoHS, UL |
2. Interface Integration: M12 Coding and Pin Count Selection Guide
Industrial edge gateways are compact hubs that concurrently manage DC power, network communications, serial fieldbuses, and digital/analog I/Os. To eliminate human error during on-site deployment and prevent accidental cross-mating that could fry sensitive electronics, STA strictly adheres to the
IEC 61076-2-101 international standard utilizing mechanical "fool-proof" coding keys:
- Power Supply Input Loops: Choose T-Coding. Its dedicated geometric pin configuration accommodates higher power density with minimal thermal dissipation compared to traditional A-coded power wiring, ensuring long-term reliability for demanding computing processors.
- Industrial Ethernet Communication: D-Coded 4-Pin remains the backbone for standard 100Mbps factory networks. However, when an edge gateway handles high-definition vision streams, AI optical inspections, or large-capacity point-cloud transfers, migrating to X-Coded 8-Pin is mandatory. Its internal X-shaped metal shielding cross separates the pairs, mitigating crosstalk down to negligible levels.
- Serial Communications & Signal I/Os: A-Coded (4, 5, or 8-Pin) offers the widest cross-brand compatibility. It is the default choice for polling flowmeters, temperature transmitters, and motor variable frequency drives (VFDs).
3. Technical Edge: Why Edge Gateways Demand STA M12 Connectors
- IP67/IP68 Ultimate Waterproofing: When fully mated, STA M12 circular connectors guarantee an IP67 rating, with high-end custom versions reaching IP68 continuous immersion depth protection. They completely seal out moisture, volatile chemical lubricants, washdown spray, and corrosive dust to ensure the interior gateway hardware remains entirely dry.
- 360° Comprehensive EMI/RFI Shielding: Edge computing nodes are frequently mounted right next to high-power motors and variable frequency drives that broadcast heavy electromagnetic pollution. STA's metal-shell M12 variants utilize a 360° complete shielded structure coupled with low-resistance, gold-plated contacts. This blocks signal distortion, prevents packet loss, and guarantees "zero-error" data collection under intense electromagnetic fields.
- Vertically Integrated Supply Chain & Cost Efficiency: Operating a state-of-the-art 20,000-square-meter manufacturing and R&D base across Shenzhen and Huizhou, STA controls the complete internal workflow—from precision mold fabrication, injection molding, and high-speed stamping to automated assembly line packaging. This robust capability allows us to offer premium industrial quality matching VDE, TUV, and UL guidelines while maintaining highly competitive market reference unit prices starting around $1.70 USD (approx. 12 RMB) depending on custom specs, significantly optimizing your B2B OEM/ODM procurement overhead.
4. Top 5 Deployment Scenarios in Modern Industry
- Automated Factory Production Lines: Mounted on robotic arm stations or 3C electronics assembly platforms, our threaded coupling mechanism prevents loosening despite non-stop high-frequency structural vibration.
- Extreme Outdoor IoT Infrastructure: Widely deployed across smart water management systems, solar PV power stations, and public weather networks. Resilient against harsh UV exposure, rapid thermal shifts (-40°C to +105°C), and heavy rain.
- Heavy Duty Mobile Vehicular Gateways: Used in logistics vehicles, agricultural equipment, construction machinery, and rail transit systems where cable pull-force resistance and anti-shock build quality are essential.
- Compact In-Cabinet & Wall-Mount Enclosures: The miniaturized structural footprint of the M12 interface saves up to 60% faceplate space compared to traditional terminal blocks, allowing high-density array clustering.
- Hazardous & Explosion-Proof Areas: Combined with flame-retardant materials (UL94 V-0) and sealed explosion-proof enclosures, these connectors satisfy the safety criteria required in petrochemical and natural gas processing installations.
Conclusion & Call to Action (CTA)
Interconnect components might be small, but they dictate the uptime of your entire automated ecosystem. Specifying a top-tier M12 waterproof aviation plug is the single most cost-effective way to maximize the service life of an industrial edge gateway and drop ongoing maintenance costs to zero.
Shenzhen Sta Electronic Co., Ltd. is fully certified under the ISO9001 and IATF 16949 international quality management systems. Our internal laboratory carries a complete suite of electrical, environmental, and mechanical test equipment to customize shell dimensions, wire lengths, and PCB layouts tailored to your custom specifications.
5. Frequently Asked Questions (FAQ)
Q1: What is the main structural difference between
M12 D-Coded and X-Coded connectors?
A1: The main differences lie in data throughput bandwidth and internal physical isolation.
M12 D-Coded typically features 4 pins and supports standard Fast Ethernet up to 100 Mbps (ideal for standard Profinet loops). Conversely,
M12 X-Coded features 8 pins and incorporates an internal X-shaped metal shield that isolates the four data pairs from each other. This geometry allows it to support high-speed data transmission up to
10 Gbps (Cat6a), making it ideal for edge gateways handling high-res industrial cameras or massive real-time data feeds.
Q2: Are STA's M12 connectors fully compatible as drop-in replacements for Amphenol or TE Connectivity?
A2: Yes, 100%. All M12 waterproof connectors manufactured by STA are designed and tested in strict accordance with the international standard IEC 61076-2-101. This ensures that our thread pitches, pin layouts, and mechanical tolerances are completely intermateable and interchangeable with premier global brands like Amphenol LTW, TE Connectivity, Phoenix Contact, and Binder, providing a secure, high-quality, and cost-effective secondary supply chain alternative.
Q3: Should I choose Front Panel Mount or Rear Panel Mount M12 sockets for my gateway enclosure?
A3: This depends entirely on your mechanical housing design and assembly line preference. Front Panel Mount (Front Lock) sockets secure the locking nut from the outside of the enclosure, which makes it very convenient for quick field replacements and manual installation. Rear Panel Mount (Rear Lock) sockets secure the hex nut from inside the enclosure casing, leaving only the threaded interface visible on the outside. Rear mounting offers a cleaner cosmetic exterior, saves external clearance space, and places the waterproof O-ring securely inside the box for superior environmental protection.
