Key Advantages
IP65/IP67 Protection
Reliable moisture protection allows the connector to be used in outdoor, industrial, and field conditions without the risk of corrosion or short circuits.
Wide Range of D-SUB Configurations
DB9, D15H, and combined DB2W2/DB5W1 power versions are supported, suitable for signal and power circuits.
Flexible Mounting Options
Straight and angled connectors, soldering, and PCB mounting are available, including versions with guide pins (PEG) for secure fit.
High-Reliability Gold-Plated Contacts

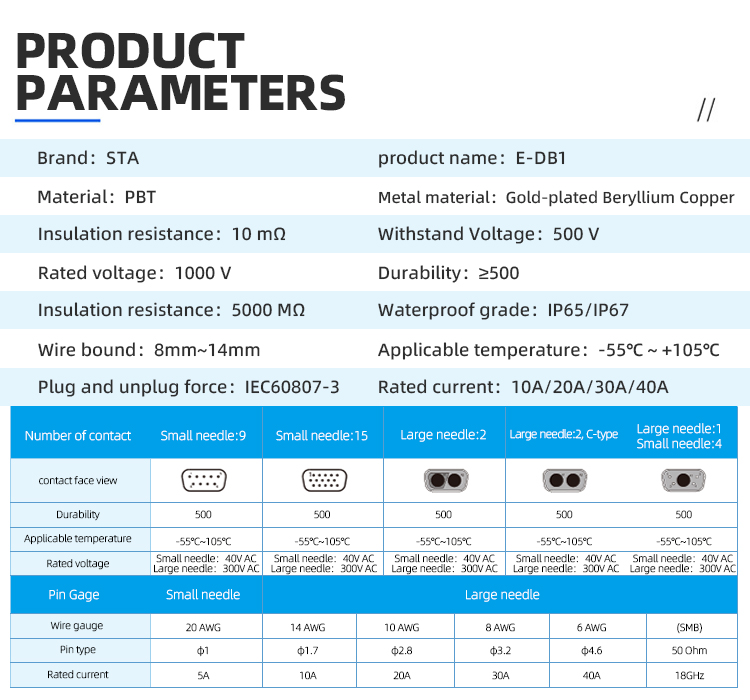

Solid gold-plated contacts and power contacts up to 5A are used for stable signal and current transmission.
Industrial Durability
Sustainable lifespan of up to 500 mating cycles, vibration resistance, and a temperature range of -55°C to +105°C.

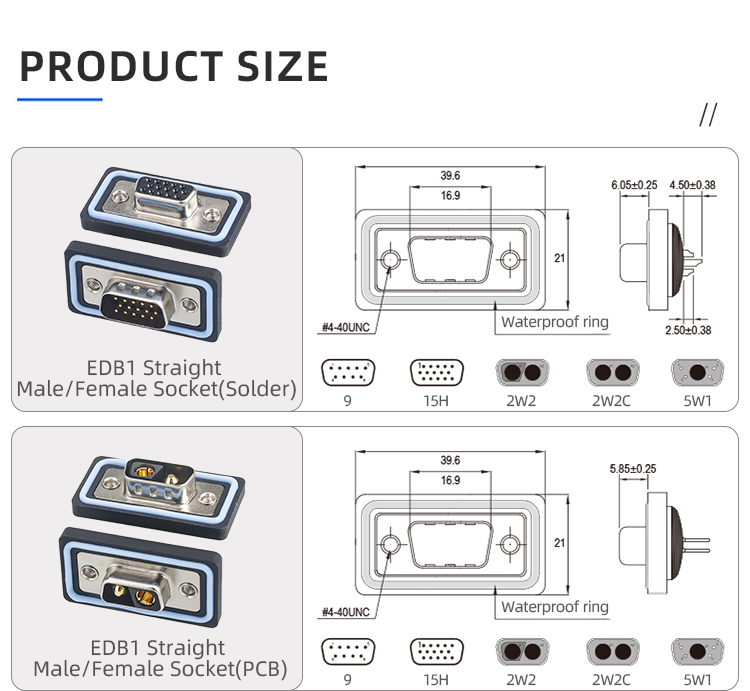

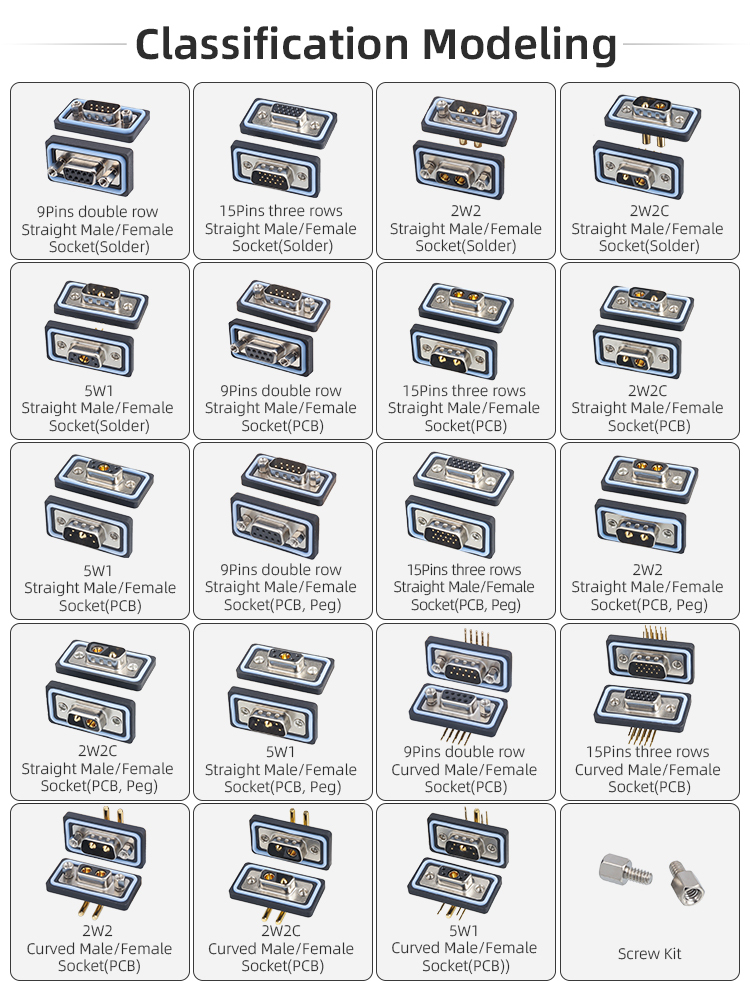

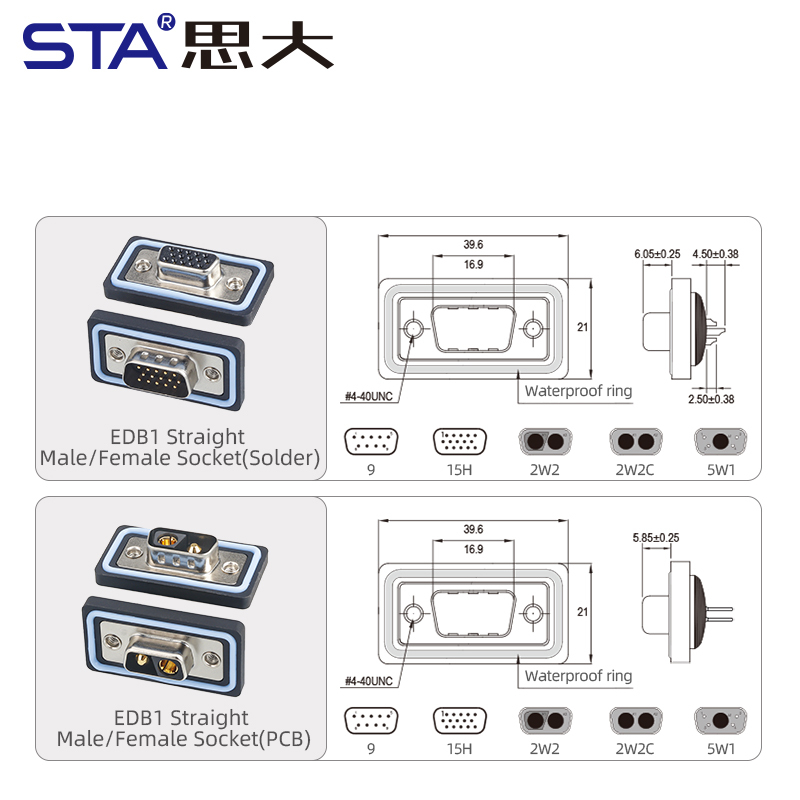

| Straight Male socket(solder) |

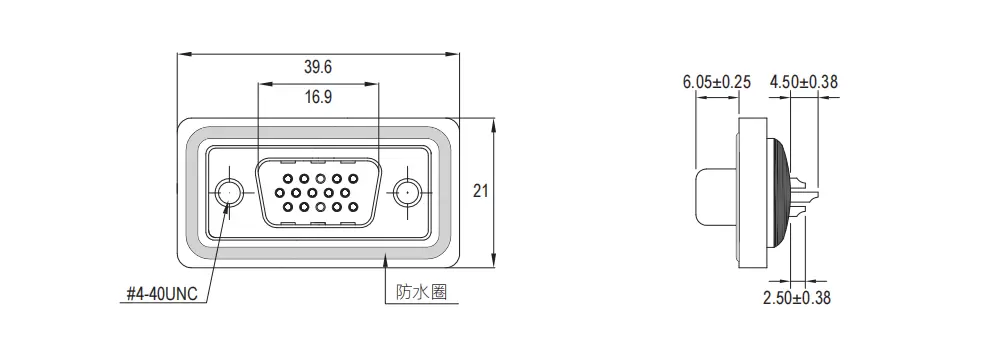

Straight Female socket(solder) |
 |
 |
| Straight Male socket(PCB) |

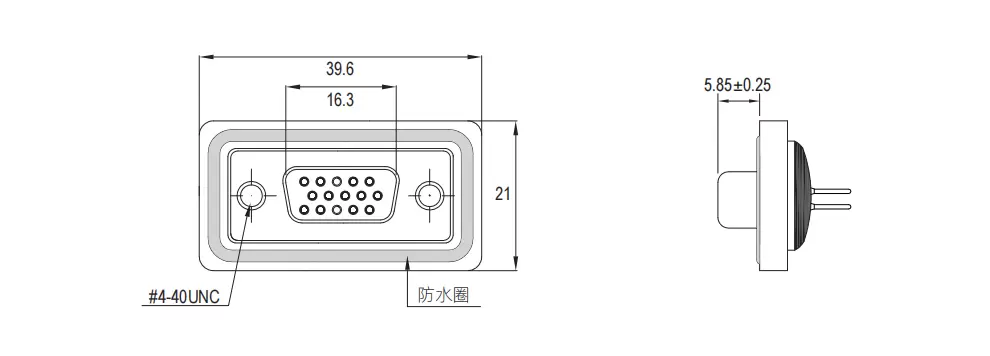

Straight Female Socket(PCB) |
 |
 |

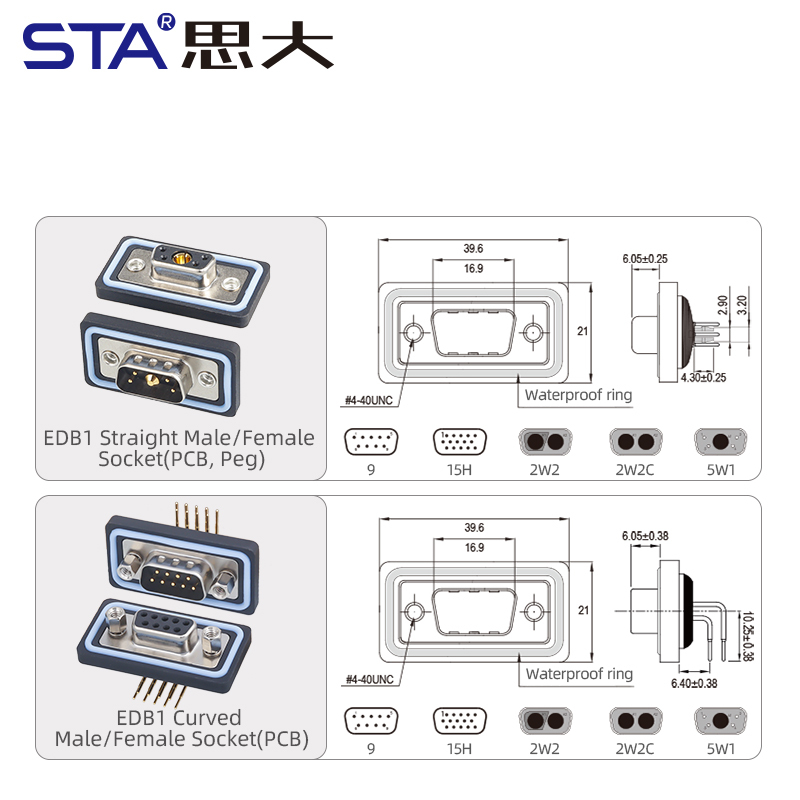

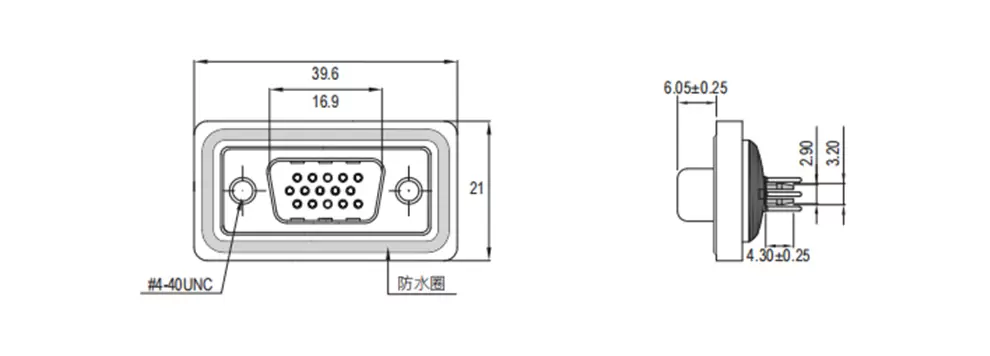

| Straight Male Socket(PCB, Peg) |

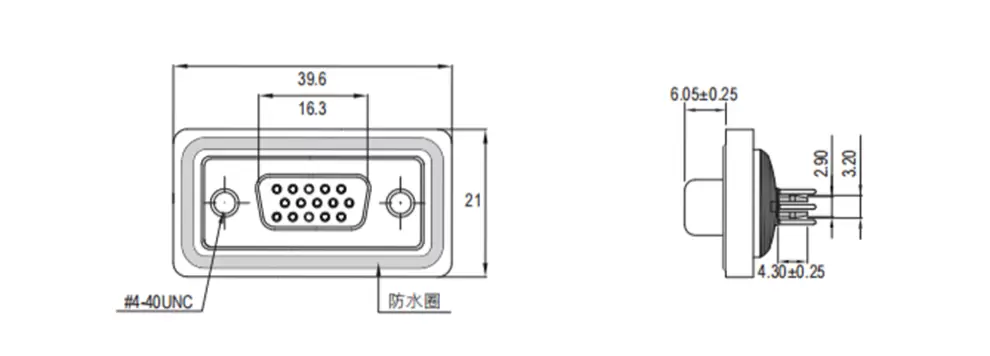

Straight Female Socket(PCB, Peg) |
 |
 |

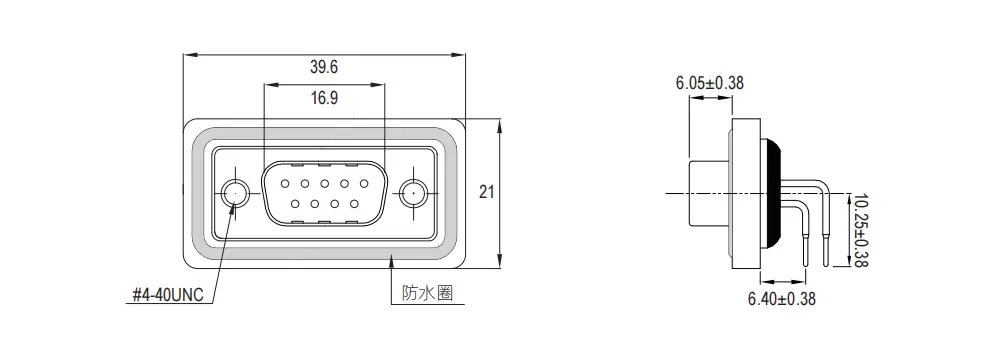

| Angled Male Socket(PCB) |
Angled Female Socket(PCB) |
 |
 |
EDB9 / DB9 IP67 Waterproof D-SUB — Applications
-
Industrial sensor and actuator connections using RS-232 / RS-485 interfaces in compact automation systems.
-
Outdoor security and surveillance equipment requiring reliable waterproof signal transmission.
-
Measuring instruments and laboratory test devices using classic DB9 signal interfaces.
-
On-board electronics in transportation systems for stable data and signal communication.
-
Embedded controllers and small PCB-mounted control boxes with limited installation space.
Positioning:
Low pin count · Signal communication · Compact industrial devices
FAQ
1. What is the difference between the solder-on and PCB versions?
The solder-on version is suitable for cable assemblies, while the PCB version is for direct mounting on a printed circuit board.
2. Are the connectors suitable for outdoor use?
Yes, the IP65/IP67 rating ensures resistance to moisture and dust.

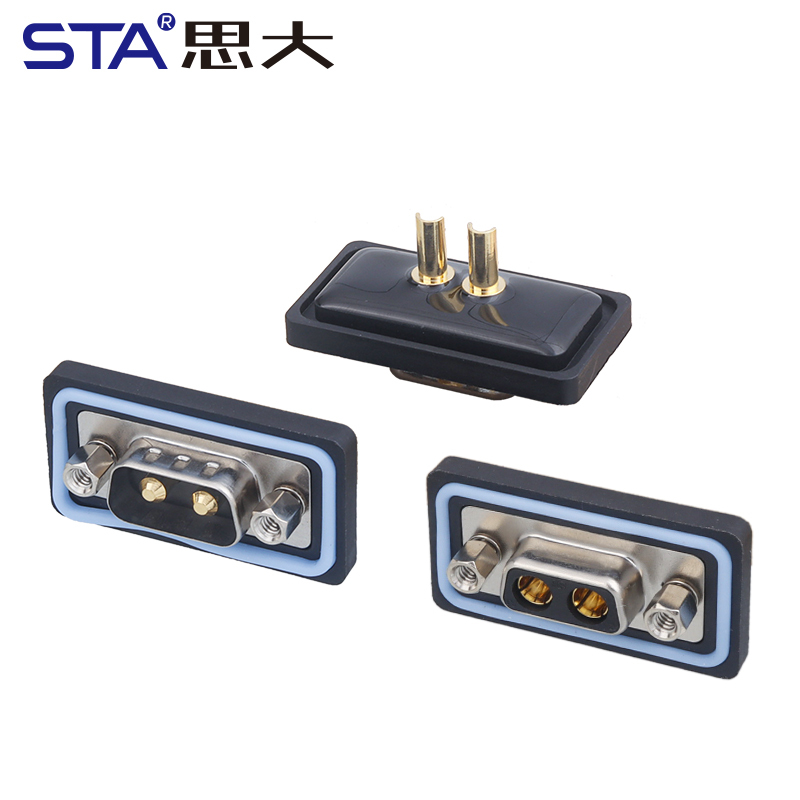

3. Can power and signal contacts be used simultaneously?
Yes, the DB2W2/DB5W1 versions support mixed circuits.

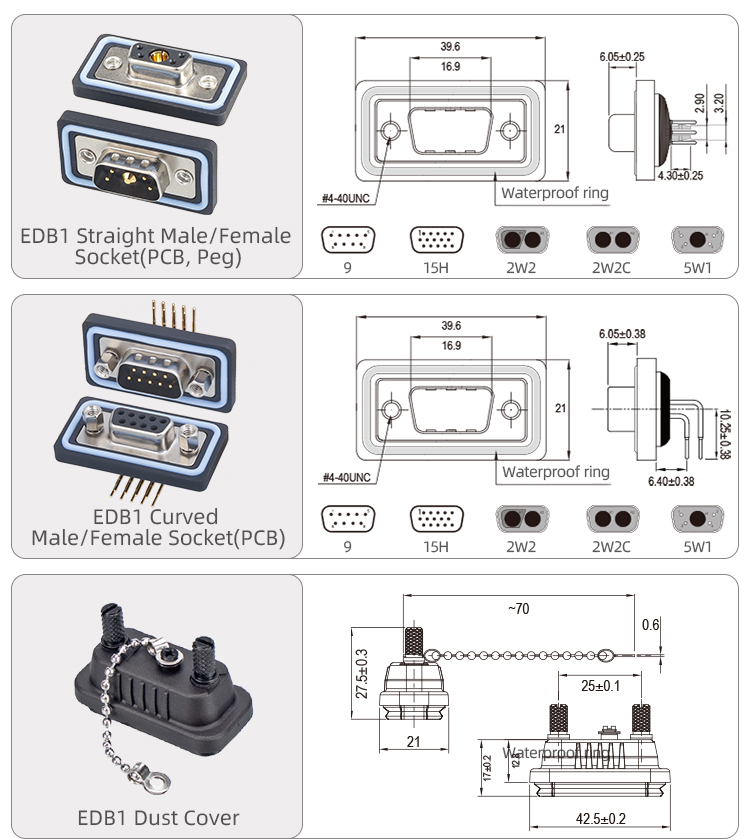

4. Are there any accessories to protect the connector?
Dust covers and mounting screws are included.
