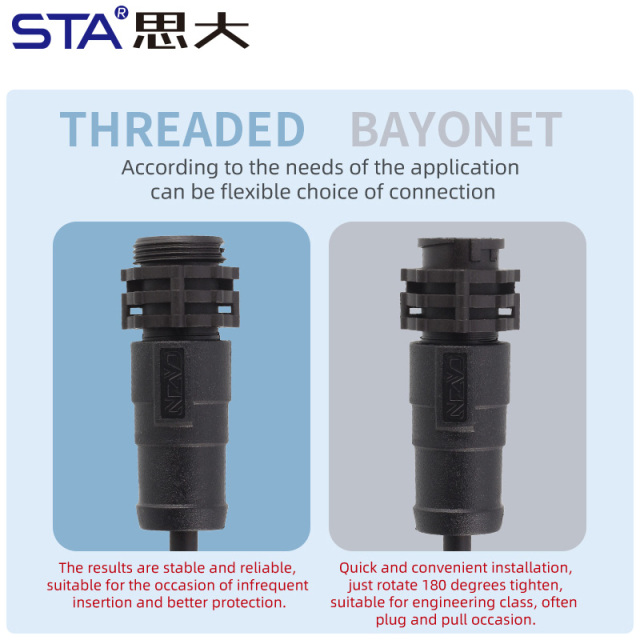

The bayonet locking structure allows rapid connection with a simple 180-degree rotation, ensuring secure mating and efficient installation in engineering-grade applications with frequent plug-and-pull cycles.

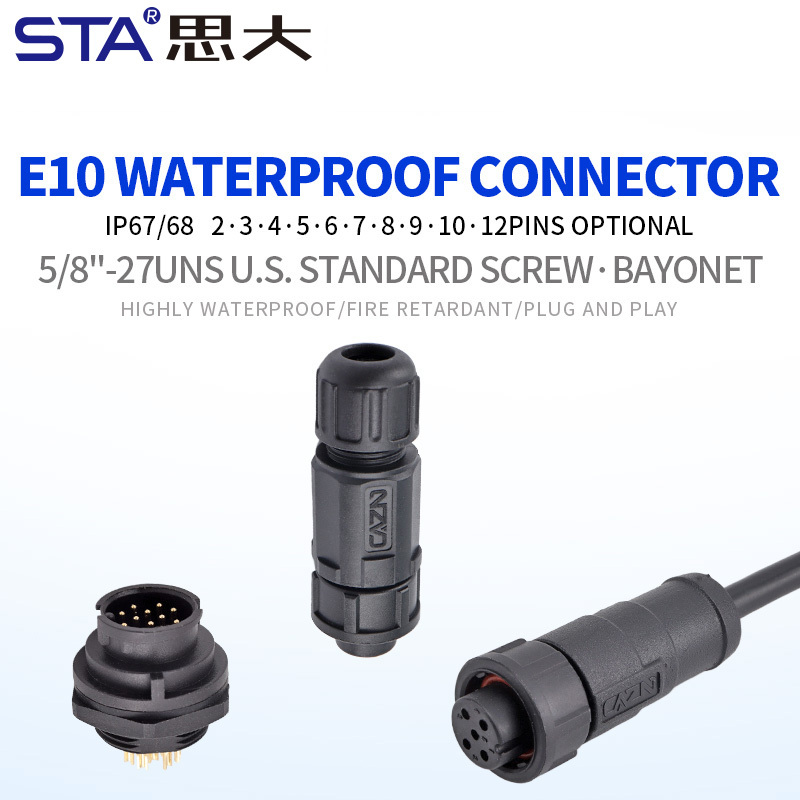

Supports 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 12 pin configurations, including B Code (2/3/4 pins) and C Code (2/3/4 pins), enabling flexible signal and power layouts across diverse industrial systems.

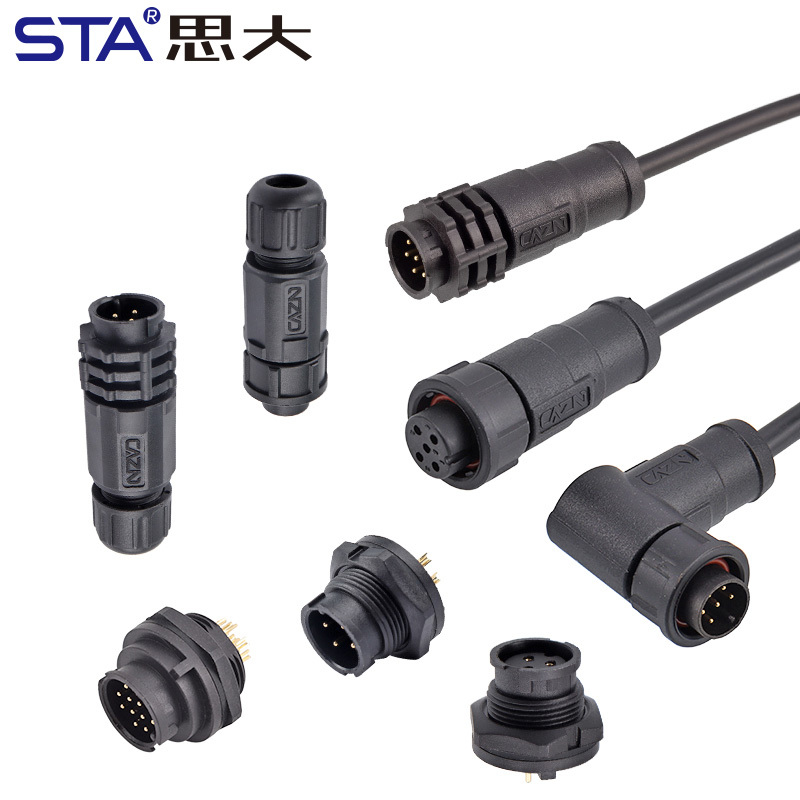

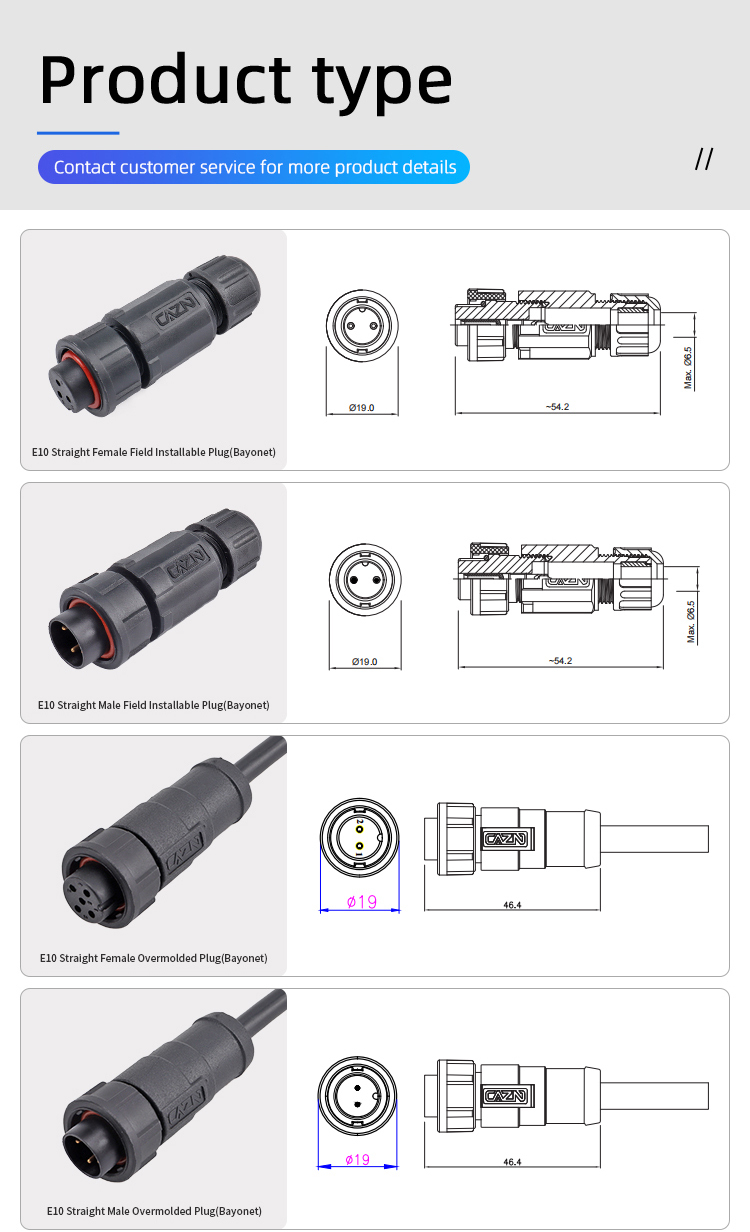

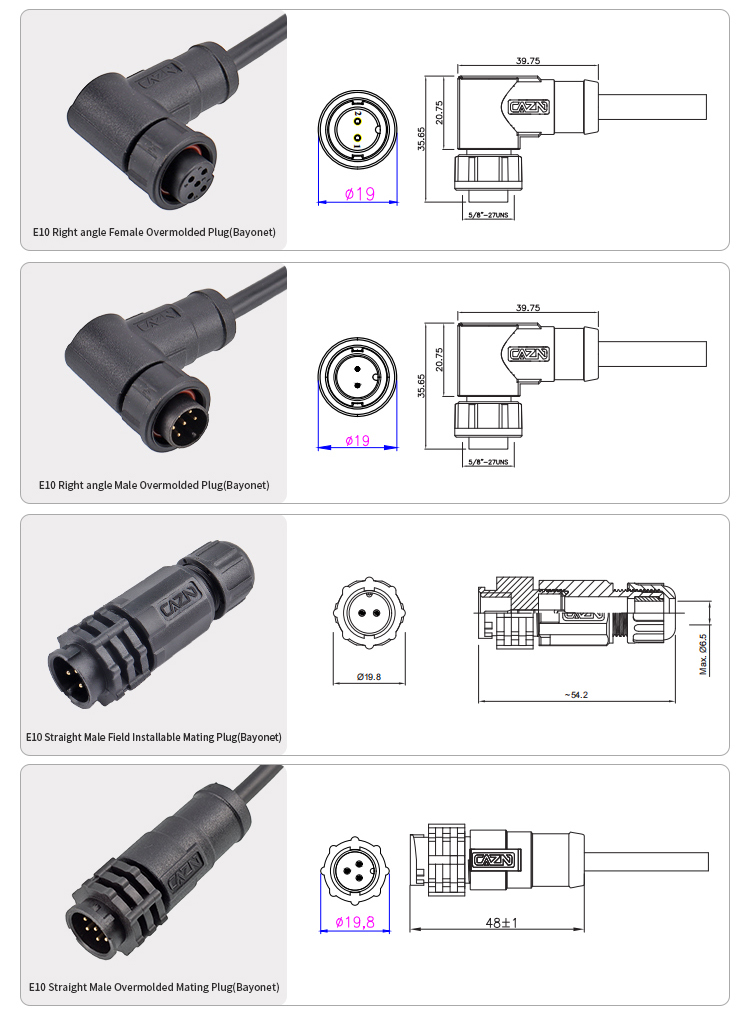

Available as Field Installable plugs for on-site wiring or Overmolded plugs for factory-assembled cables, adapting easily to different installation and maintenance requirements.

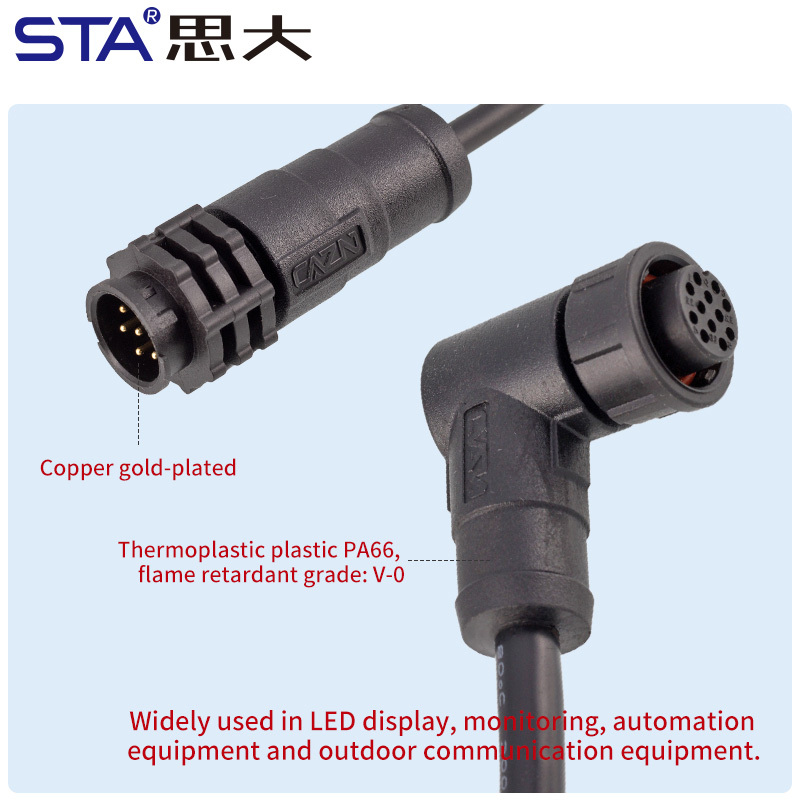

Gold-plated copper contacts provide stable conductivity, reduced contact resistance, and enhanced corrosion resistance, ensuring reliable electrical performance over extended service life.
The PA66 thermoplastic housing with UL94 V-0 flame-retardant rating delivers excellent mechanical strength, heat resistance, and safety in harsh industrial and outdoor environments.
Industrial automation and control equipment
LED display and outdoor lighting systems
Monitoring and inspection devices
Outdoor communication equipment
Machinery requiring frequent connector mating
1. What is the advantage of the bayonet locking design?
The bayonet mechanism enables fast connection, strong anti-vibration performance, and reliable locking for applications with frequent mating cycles.
2. Can this connector be used outdoors?
Yes, the IP67/IP68 rating ensures protection against dust, rain, and temporary water immersion.
3. What is the difference between Field Installable and Overmolded plugs?
Field Installable plugs allow on-site wiring, while Overmolded plugs provide factory-sealed cables for enhanced durability.
4. Does the connector support both signal and power transmission?
Yes, different pin and coding options allow flexible configurations for signal, power, or hybrid transmission.
