Key Advantages
Reliable IP67 protection
The sealed design makes the D-SUB connector resistant to water, dust, and aggressive industrial environments, ensuring stable equipment operation.
Combined signal contacts

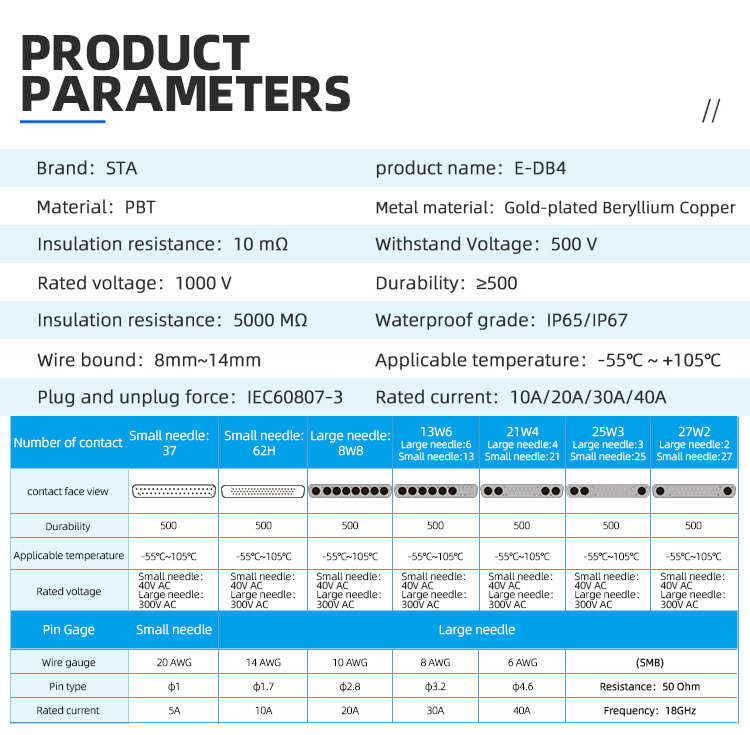

Support for 8W8, 13W6, 21W4, 25W3, and 27W2 configurations allows for flexible transmission of signals of varying power levels through a single IP67 D-SUB connector.
Flexible mounting options

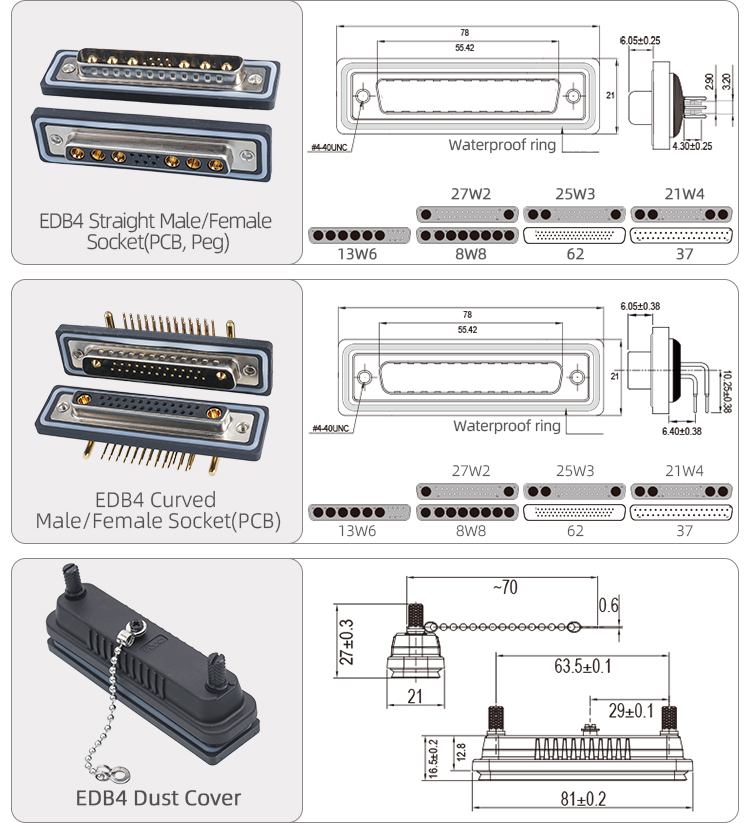

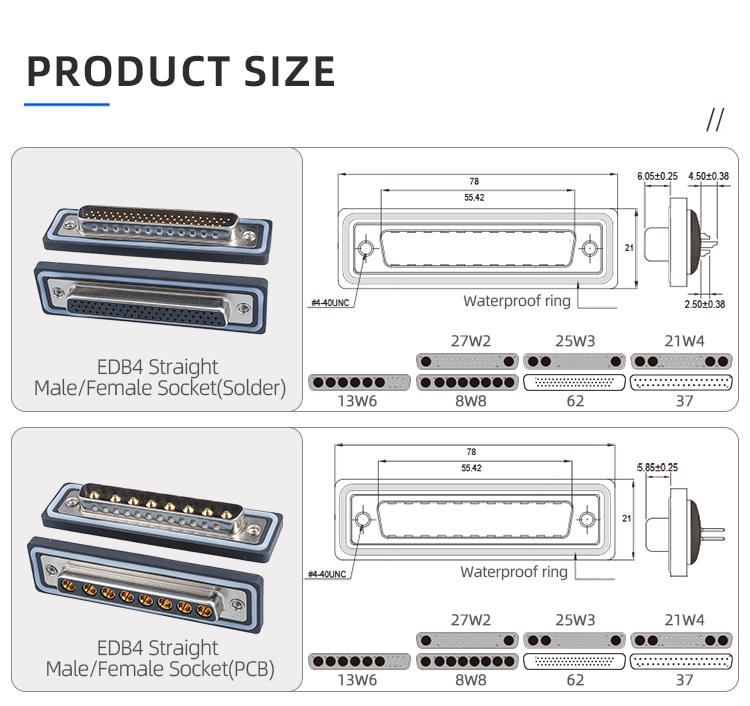

Straight and angled versions, as well as solder and PCB mounting options, simplify integration into control panels and electronic modules.
High-reliability gold-plated contacts
Gold-plated beryllium copper contacts provide low contact resistance and a long service life.
Industrial durability and stability
The EDB37 D-SUB connector is designed for multiple mating cycles and operation over a wide temperature range.
EDB37 / 62-Pin IP67 Waterproof D-SUB — Applications
Data acquisition (DAQ) systems and industrial servers requiring high-density signal interfaces.
Railway, marine, and special-purpose transportation electronic systems.
Automated test equipment (ATE) and industrial testing platforms.
High-reliability industrial and defense-grade electronic systems.
Central PLC units and distributed control systems (DCS).
Positioning:
Ultra-high pin density · Mission-critical systems · Maximum reliability
FAQ
Q1: Is the EDB37 suitable for high-density signal lines?
Yes, the 62-pin version provides compact and stable signal transmission.
Q2: What is the advantage of combined configurations?
They allow for optimal signal and current distribution in a single connector.
Q3: Can the connector be used outdoors?
Yes, the IP67 rating ensures reliable operation in outdoor environments.
Q4: Is PCB mounting supported?
Yes, solderable and PCB mounting versions are available.
