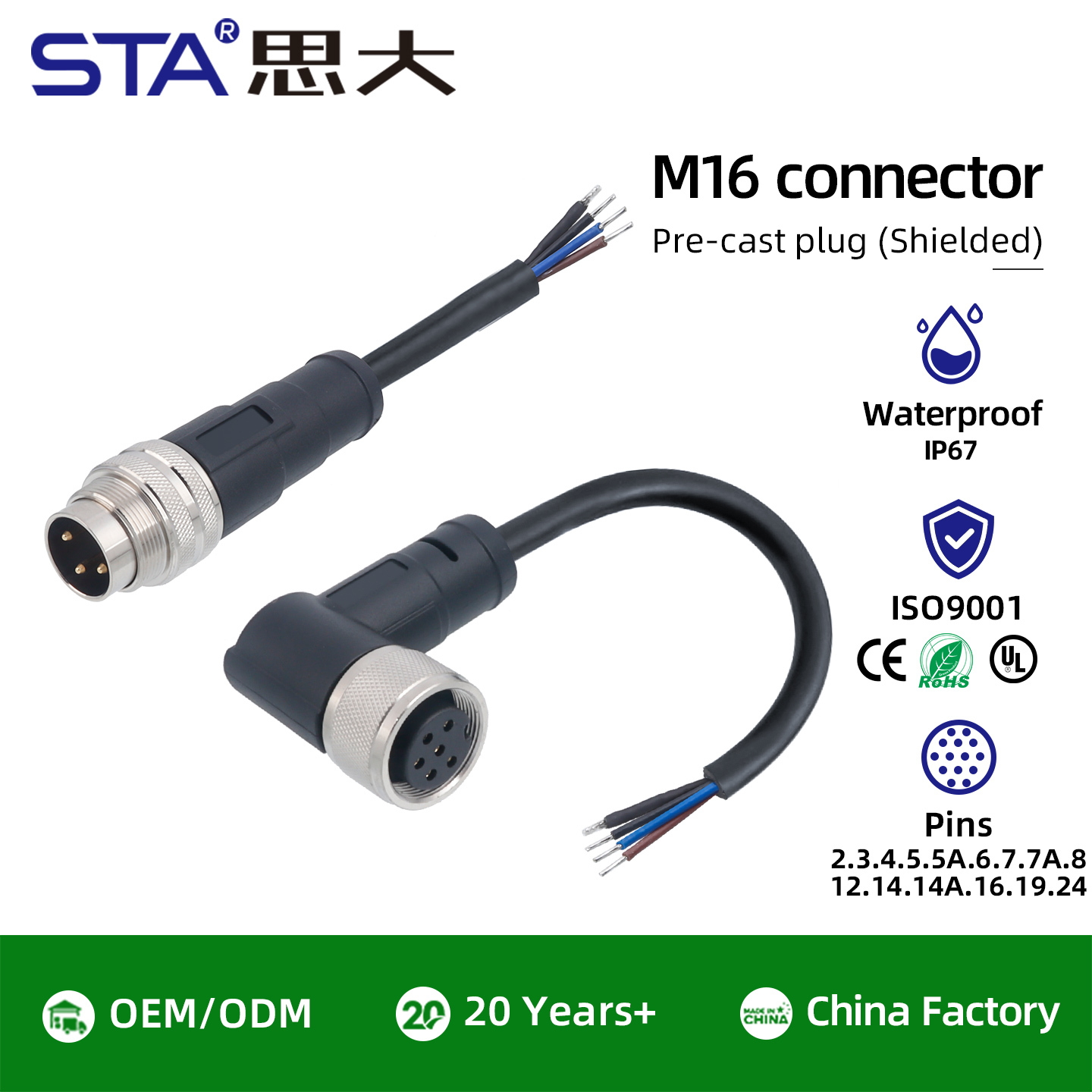

M16 Shielded Overmolded Connector | IP67 Straight & Angled

Name: M16 Shielded Overmolded Connector | IP67 Straight & Angled
Brand: STA Connector
SKU: M16 Shielded Plug

No.M16 Shielded Plug

The STA M16 Shielded Overmolded Connector provides IP67 waterproof protection with robust electromagnetic shielding for stable power and signal transmission. Available in 2–24 pins with straight and angled versions, it delivers plug-and-play installation, flame-retardant safety, and reliable performance in automation, robotics, and industrial equipment.

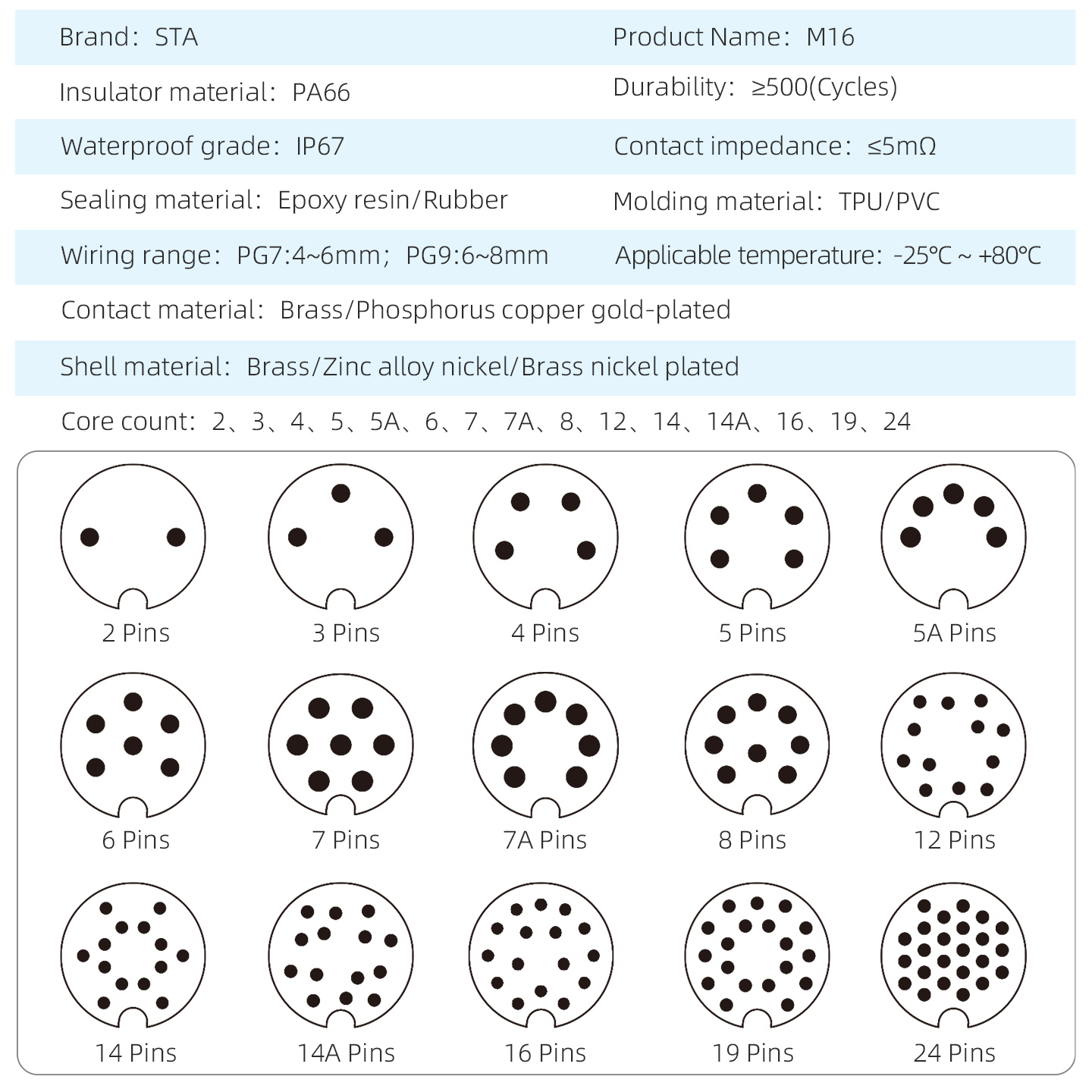

Connector Type

M16 Shielded Overmolded Plug

Pin Count

2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 16 / 19 / 24 pins

Mounting Style

Front-mount / Back-mount panel installation

Shell Material

Brass / Zinc Alloy, Nickel-Plated

Contact Material

Brass / Phosphor Bronze, Gold-Plated

Rated Voltage

AC 250V / DC 32V

Contact Resistance

≤5mΩ

Insulation Resistance

≥100MΩ

Temperature Range

-25°C ~ +85°C

Rated Current

5A / 7A / 14A (depending on pin configuration)

Cable Compatibility

Standard industrial cables (PVC, TPU, PUR)

M16 Solder Socket:

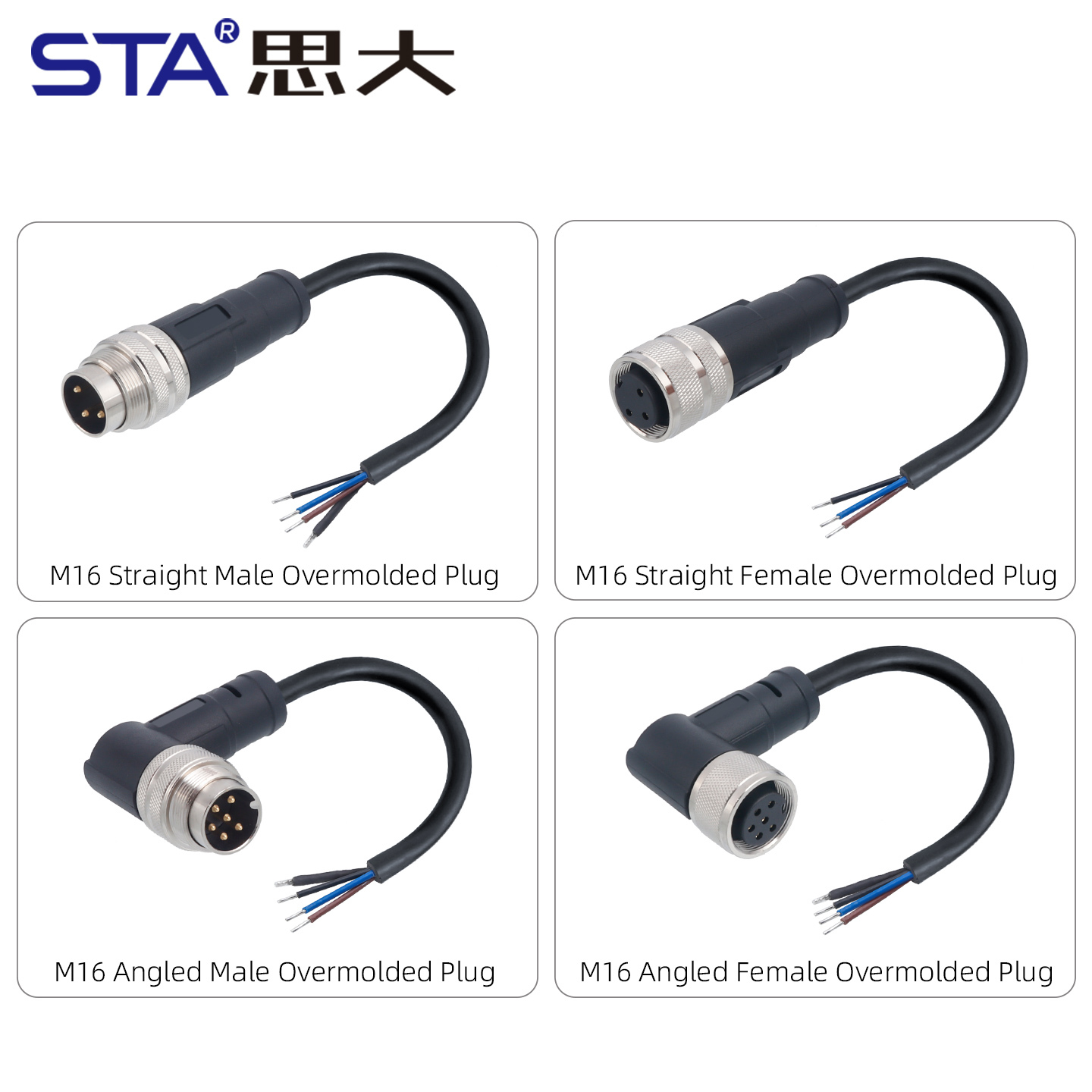

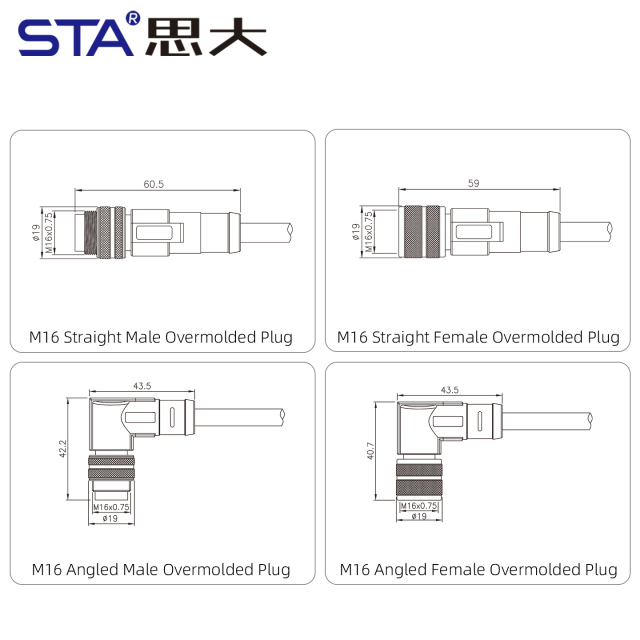

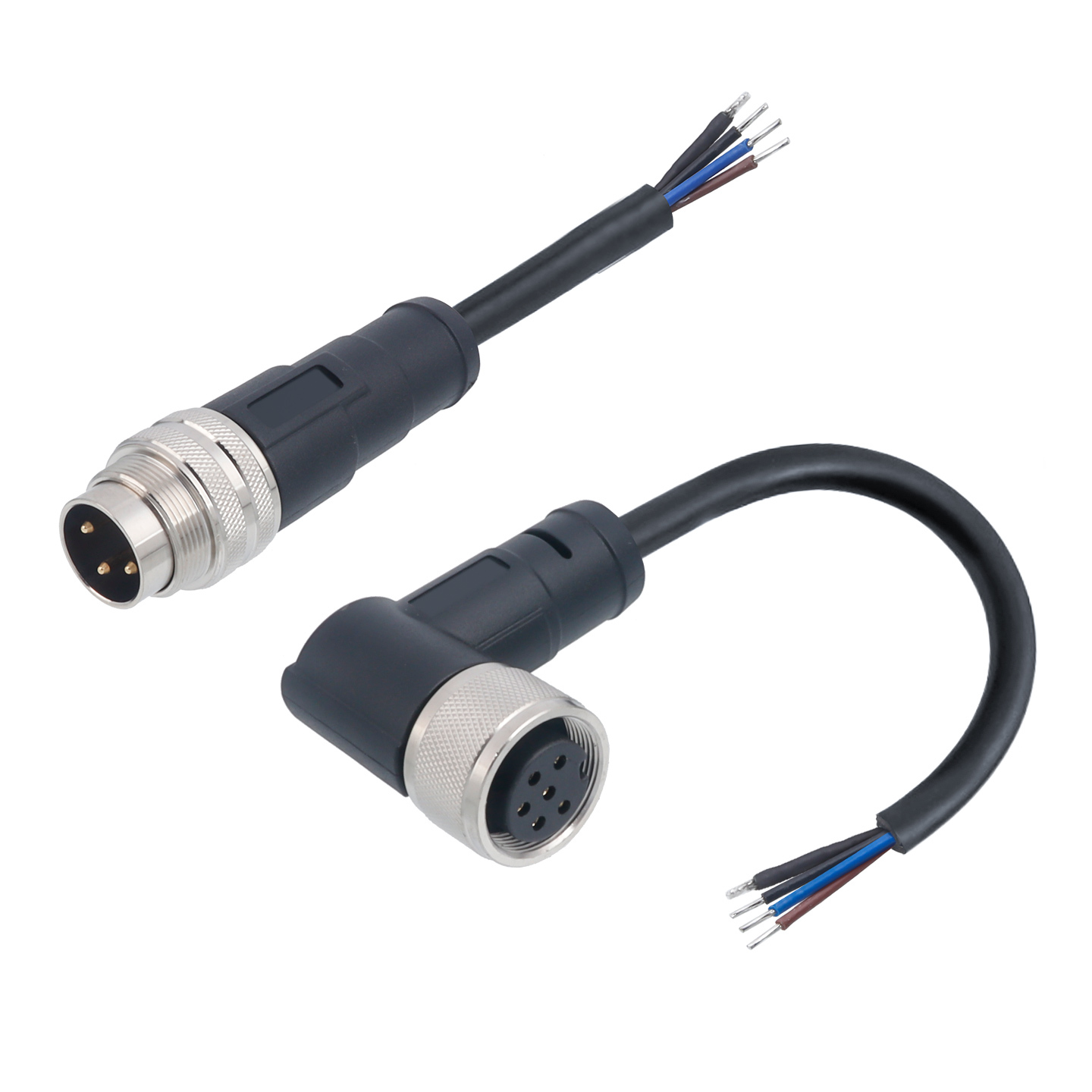

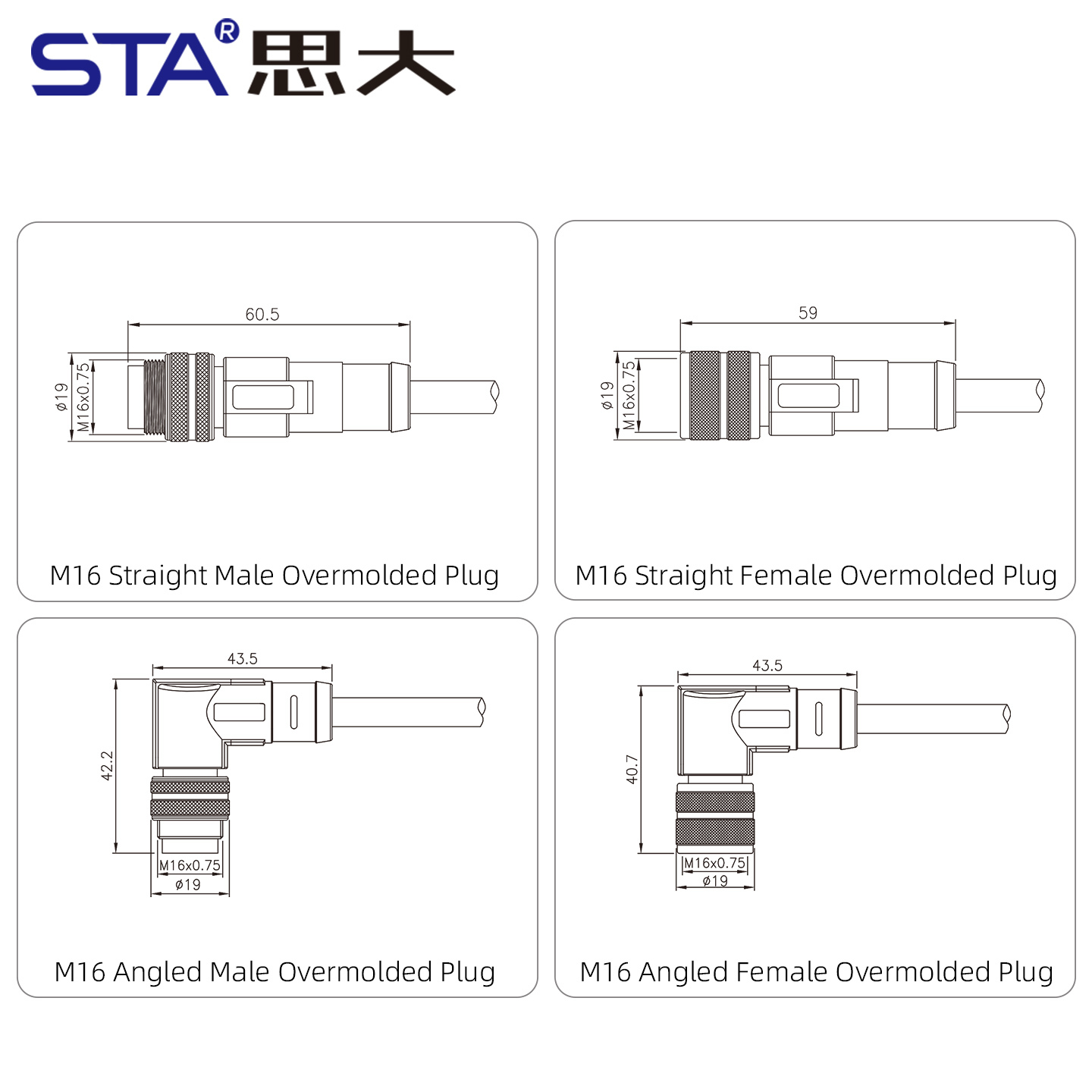

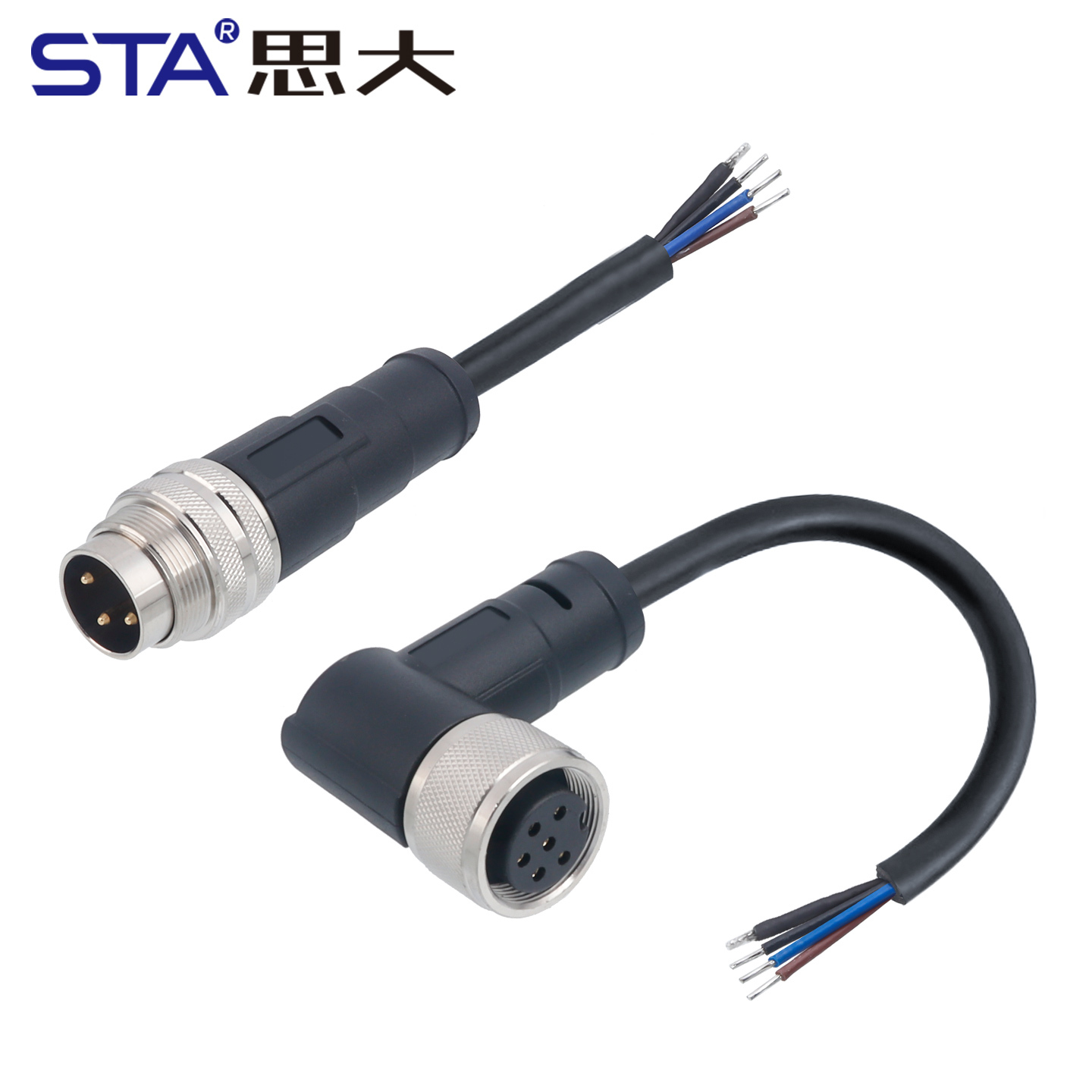

M16 Straight Male Overmolded Plug (Shielded)

M16 Straight Female Overmolded Plug (Shielded)

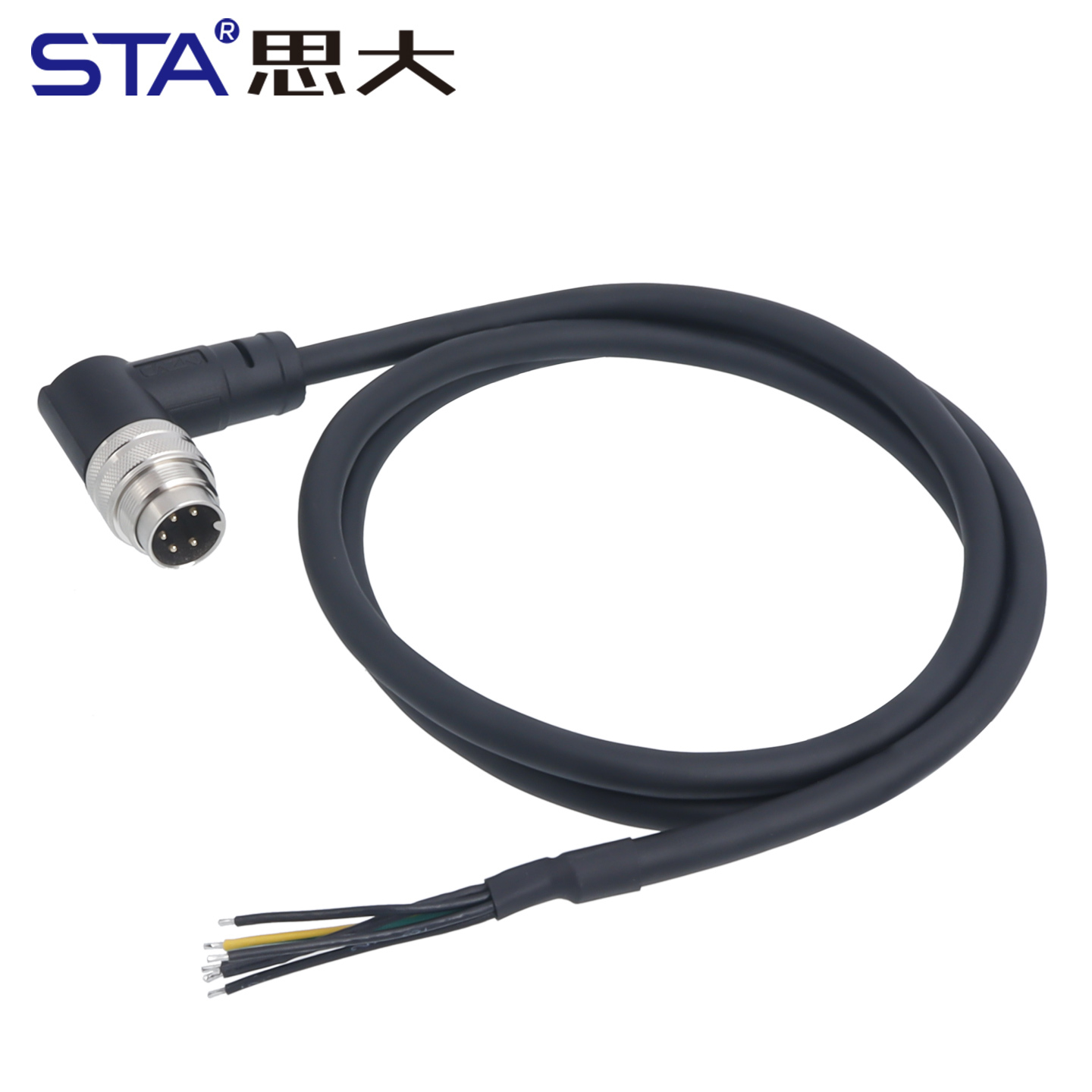

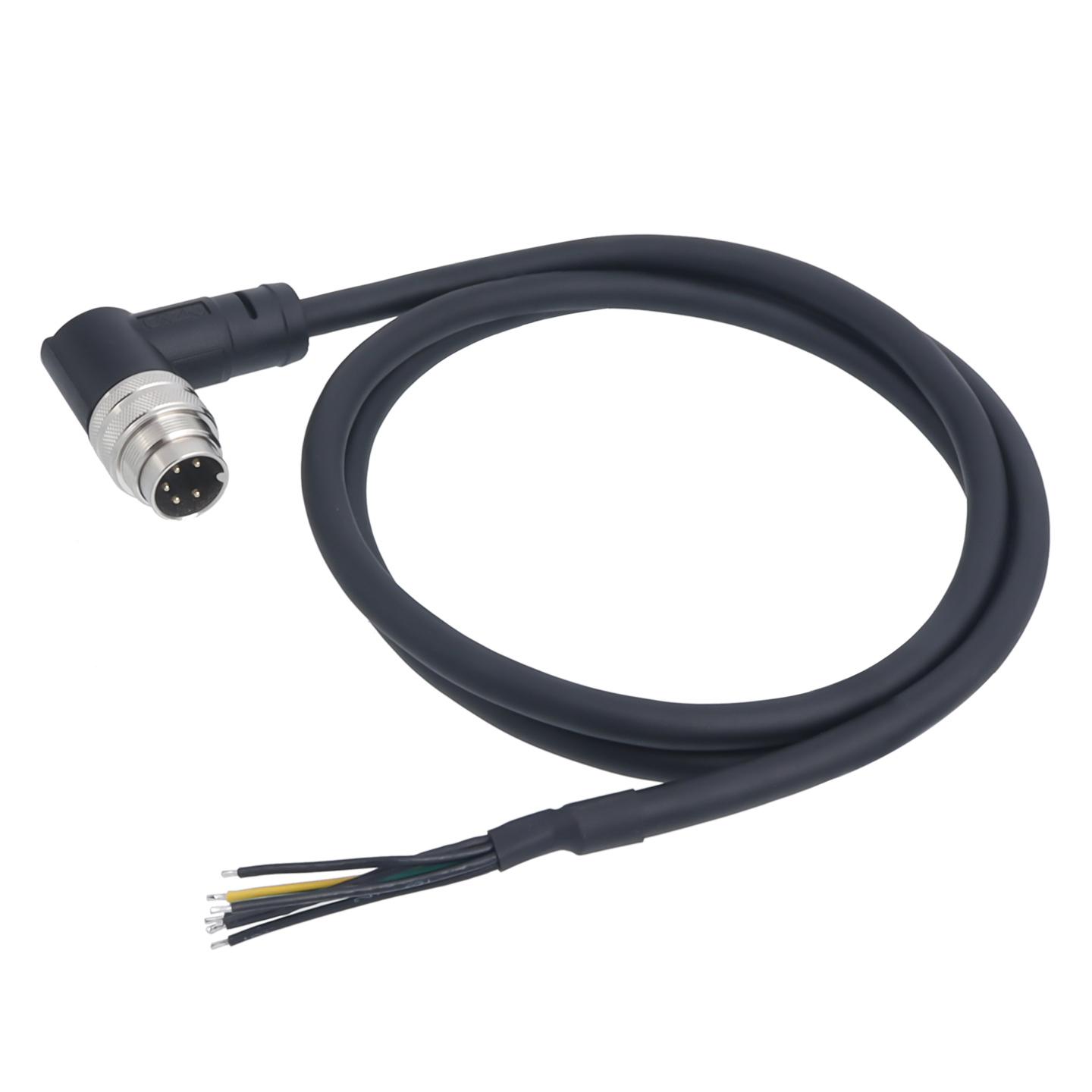

M16 Angled Male Overmolded Plug (Shielded)

M16 Angled Female Overmolded Plug(Shielded)

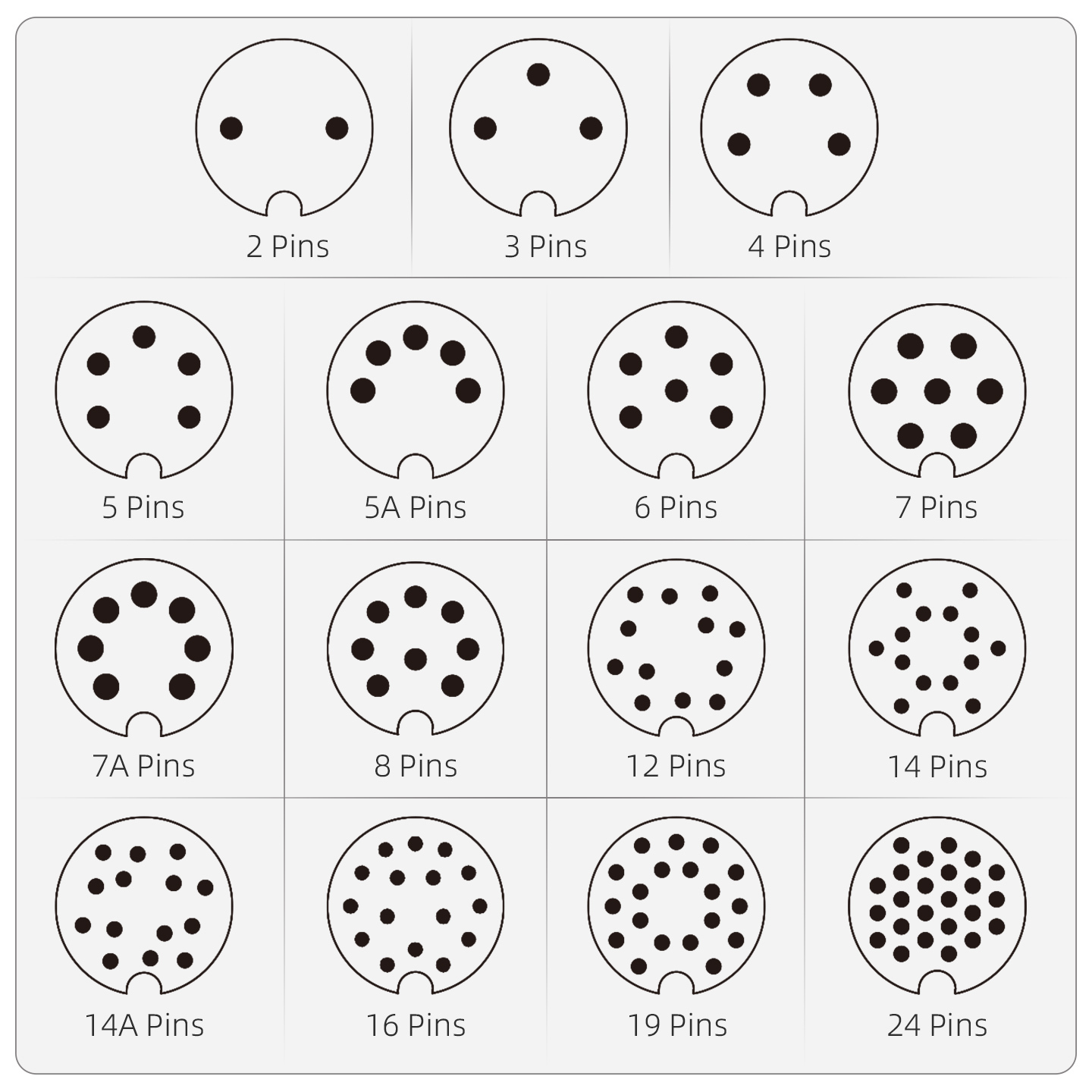

Pins:

2Pin

3Pin

4Pin

5Pin

6Pin

7Pin

8Pin

12Pin

14Pin

16Pin

19Pin

24Pin

Cable Type:

PVC

TPU

Cable Length:

Customized

GET A QUOTE

Description
Video

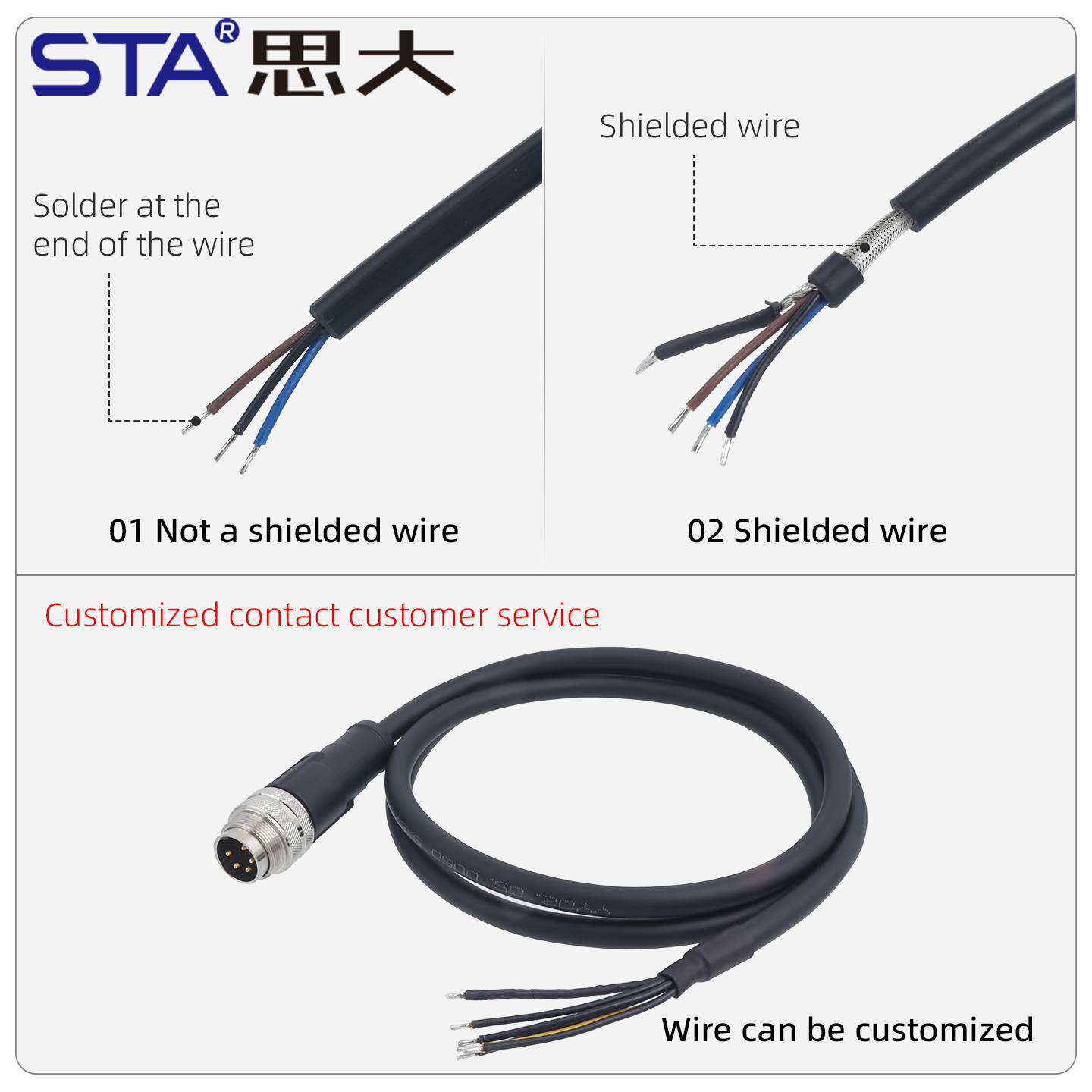

1. Shielded Overmolded Structure for EMI Protection

The shielded design ensures excellent electromagnetic interference resistance, improving signal integrity for automation systems, robotics, sensors, industrial machinery, and communication modules requiring stable M16 industrial connectors.

2. IP67 Waterproof and Field-Ready Durability

Engineered for harsh environments, the IP67 sealing prevents water, dust, and contaminants from affecting performance, making it ideal for outdoor equipment, control cabinets, and rugged industrial applications.

3. Wide Pin Range for Power and Signal Flexibility

Available from 2 to 24 pins, the connector supports power distribution, multi-channel signals, control systems, and measurement devices, offering versatile M16 shielded connectivity for OEM and integration projects.

4. Straight and Angled Options for Compact Installation

Straight and right-angle plug versions provide flexible wiring paths in tight spaces, enabling optimized cable routing for automated machinery, field sensors, and panel-mounted industrial modules.

5. Flame-Retardant, Reliable, and Plug-and-Play

Made from UL94 V-0 flame-retardant materials, the connector offers safe operation, strong strain relief, and plug-and-play installation, enhancing long-term reliability in demanding industrial environments.

Product Uses

Automation robots, servo systems, and motion control
Industrial sensors, encoders, and field measurement devices
Control panels, machinery wiring, and OEM equipment
Communication modules requiring EMC shielding
Outdoor industrial equipment and mobile machinery
