Sensor M5 Female Connector Panel Mount Socket Size

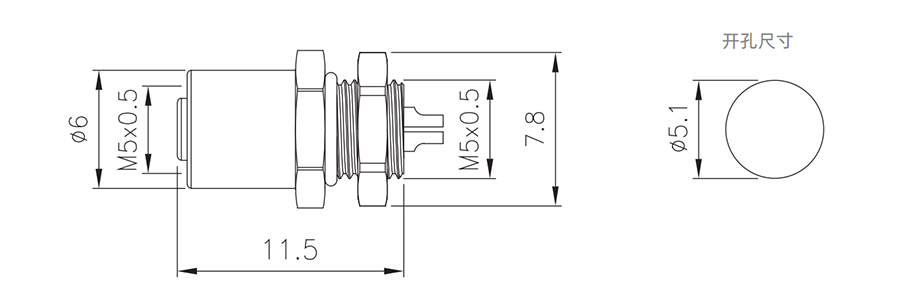

| M5 front-mount metal Female Socket Connector Drawing |
 |
| Pin Count |
Male core position diagram |
Rated current |
Rated voltage |
Conductor specifications |
Female core position diagram |
| A/C |
D/C |
AWG |
mm² |
| M5 3pin |
 |
1A |
60V |
60V |
26 |
0.14 |
 |
| M5 4pin |
 |
1A |
60V |
60V |
26 |
0.14 |
 |
M5 Circular Connector Receptacle Order Code
| M5A-03PBF-GW5 |

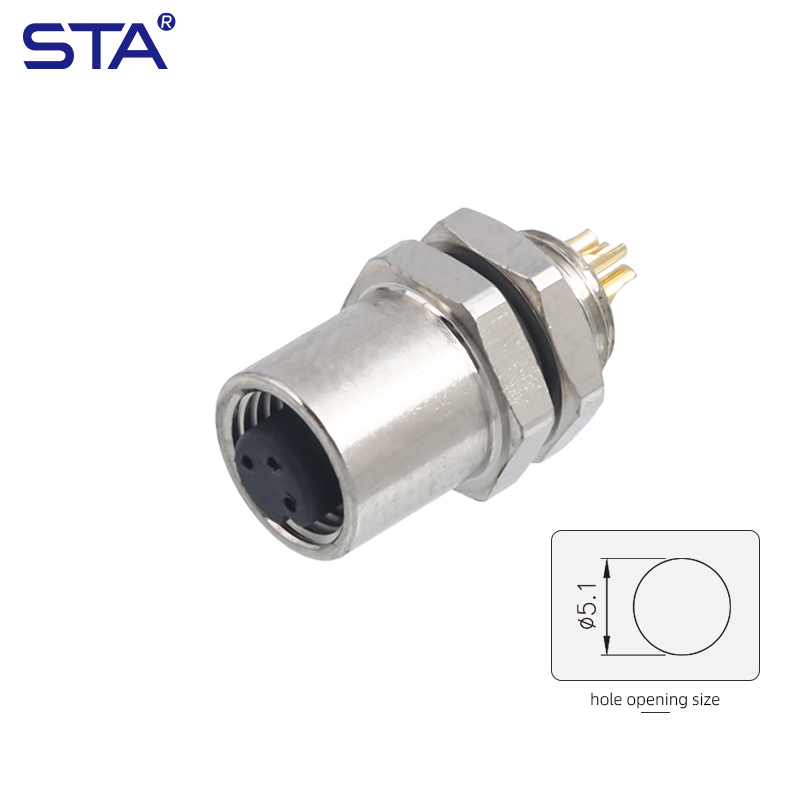

M5 front-mount metal female receptacle, 3-pin, solder type, M5x0.5 panel mount thread |
| M5A-04PBF-GW5 |
M5 front-mount metal female receptacle, 4-pin, solder type, M5x0.5 panel mount thread |
Technical Specifications
| Parameter Item |
Specification Details |
| Series & Interface |
M5 Miniature Socket / 5mm Interface / M5 x 0.5 Threaded Lock |
| Type & Gender |
M5 Front Panel Mount Receptacle / M5 Female Bulkhead Socket |
| Pins & Termination |
3-Pin or 4-Pin Layouts / High-Precision Solder Cups / 26AWG Max |
| Electrical Rating |
1A Current Capacity / 60V AC/DC Voltage (Same for 3/4 Pin) |
| Resistance Specs |
Contact Resistance ≤ 5 mΩ / Insulation Resistance ≥ 100 MΩ |
| Sealing & Temp |
IP67 Dustproof & Waterproof / Operating Temp: -25°C to +85°C |
| Premium Materials |
Gold-Plated Copper Alloy Contacts / Nickel-Plated Brass Shell |
Product Advantages
- Miniature Panel Space Optimization: Designed with a 5mm outer interface, this front mount circular socket minimizes the required footprint on control boxes, enabling dense multi-port device layouts.
- Stable Solder Cup Connections: High-precision internal solder contacts provide permanent wire attachment, minimizing contact resistance and ensuring uninterrupted signal routing under physical stress.
- Reliable Equipment Sealing Class: Certified with an IP67 waterproof rating, the integrated front panel O-ring forms an airtight barrier that protects internal PCBs against moisture and heavy dust environments.
- Standardized Configuration Options: Available in identical 1A 60V parameter ratings for both M5 3 pin and M5 4 pin models, simplifying procurement logistics and universal device-side engineering.
- Industrial Threaded Locking Safety: Features an M5x0.5 mechanical screw-lock thread compliant with international standards, delivering high vibration resistance and total intermateability with global plug brands.
Application Scenarios
- Micro Sensor Device Ports: Functioning as the main bulkhead panel interface for subminiature proximity switches, photo-electric sensors, and limit monitors.
- Compact Robotics Controllers: Integrating into small robotic arm joints, pneumatic valve manifolds, and miniature servo motor control panels.
- Industrial Vision Systems: Serving as the high-speed data transmission port on space-restricted automation cameras and optical inspection hardware.
- Smart IoT Edge Gateways: Providing a sealed external signal reception link for compact environmental sensors, wireless transmitters, and digital nodes.
- Medical Diagnostic Hardware: Implementing as a low-current, sterile-safe electrical interface on portable patient monitoring equipment and laboratory analyzers.
Frequently Asked Questions (FAQ)
Q1: Is the Staconnector M5 socket fully compatible with other international brands?
Yes, every Staconnector M5 socket is manufactured strictly according to global industrial standards (IEC 61076-2-105). They serve as high-quality, 100% compatible drop-in replacements for standard-compliant series from major industry brands such as Phoenix Contact, Binder, TE Connectivity, and Molex, ensuring seamless integration without any mechanical interference.
Q2: What premium materials are used to manufacture the waterproof M5 female connector socket?
Our high-durability waterproof M5 female connector socket 3pin 4pin housing is meticulously crafted from premium brass nickel-plated material. This specific material selection provides outstanding anti-corrosion properties, superior mechanical wear resistance, and long-lasting durability in demanding factory automation and outdoor applications.
Q3: Can Staconnector customize specialized waterproof connectors based on our drawings?
Absolutely. As an experienced direct manufacturer, we house an advanced integrated facility complete with precision mold processing, injection molding production lines, automated wire extrusion systems, and a hardware machining workshop. We can fully customize any waterproof connector or cable assembly based directly on your engineering drawings or physical samples.
Q4: Do your M5 female connector receptacles hold international quality certifications?
Yes. Quality compliance is our highest priority for global distribution. The vast majority of our industrial interconnect products, including the M5 female connector range and overmolded cable assemblies, are fully certified with CE and RoHS compliance. Our manufacturing facility operates under a strict, certified ISO9001 quality management system to guarantee stable bulk product delivery.
Q5: Can you provide a brief overview of Staconnector’s manufacturing scale and catalog?
Staconnector has over two decades of specialized industrial connector production experience, a dedicated workforce of over 300 skilled employees, and a certified factory achieving annual sales exceeding 20 million USD. Our full portfolio includes M-series circular connectors, USB connectors, and military standard connectors; we also offer free samples to qualified procurement managers for initial testing.
