The M8 Solder Straight & Angled Plastic Assembled Plug Connector is engineered for reliable industrial signal and data transmission in compact automation systems. Available in 3-pin, 4-pin, 5-pin, 6-pin, and 8-pin configurations, it features a lightweight plastic body, secure threaded coupling, and IP67 sealing when mated. This M8 connector supports stable solder termination, providing strong anti-vibration performance and long-term electrical reliability. Ideal for factory automation, robot sensors, PLC wiring, and measurement devices, it delivers stable connectivity in harsh environments and offers flexible mounting with straight and right-angle versions.

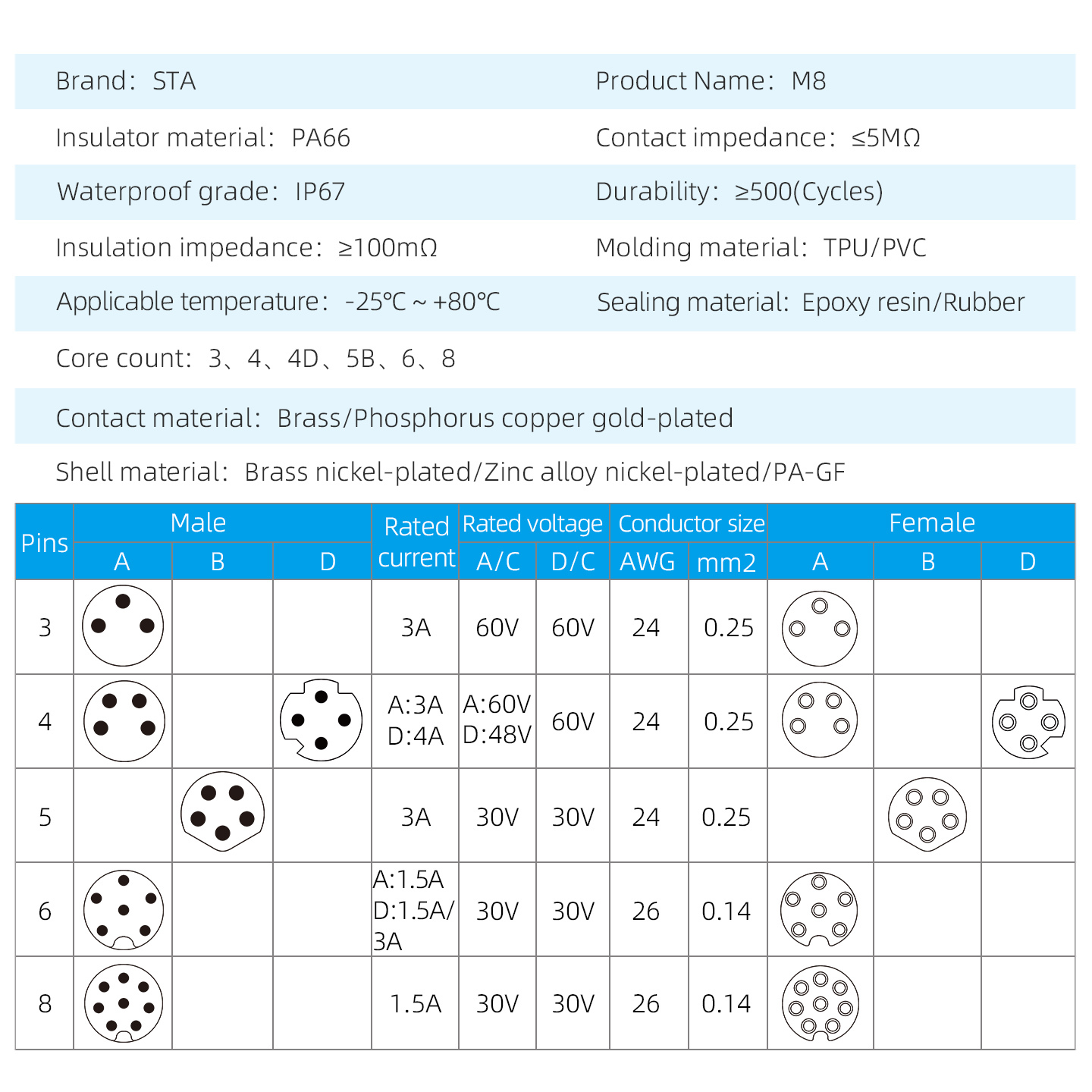

Connector Type
M8 Plastic Assembled Plug, Solder Type
Cable Outlet
Straight / Right Angled
Pin Count
3/4/5/6/8 pins
Gender
Male / Female
Contact Material
Copper alloy, gold-plated
Rated Voltage
1.5A–3A (depending on pin count)
Contact Resistance
≤10mΩ
Insulation Resistance
≥100MΩ
Temperature Range
-25°C ~ +85°C
Conductor size
24AWG-26AWG
Socket
Front Mount Solder Type, Back Mount Solder Type and PCB board type

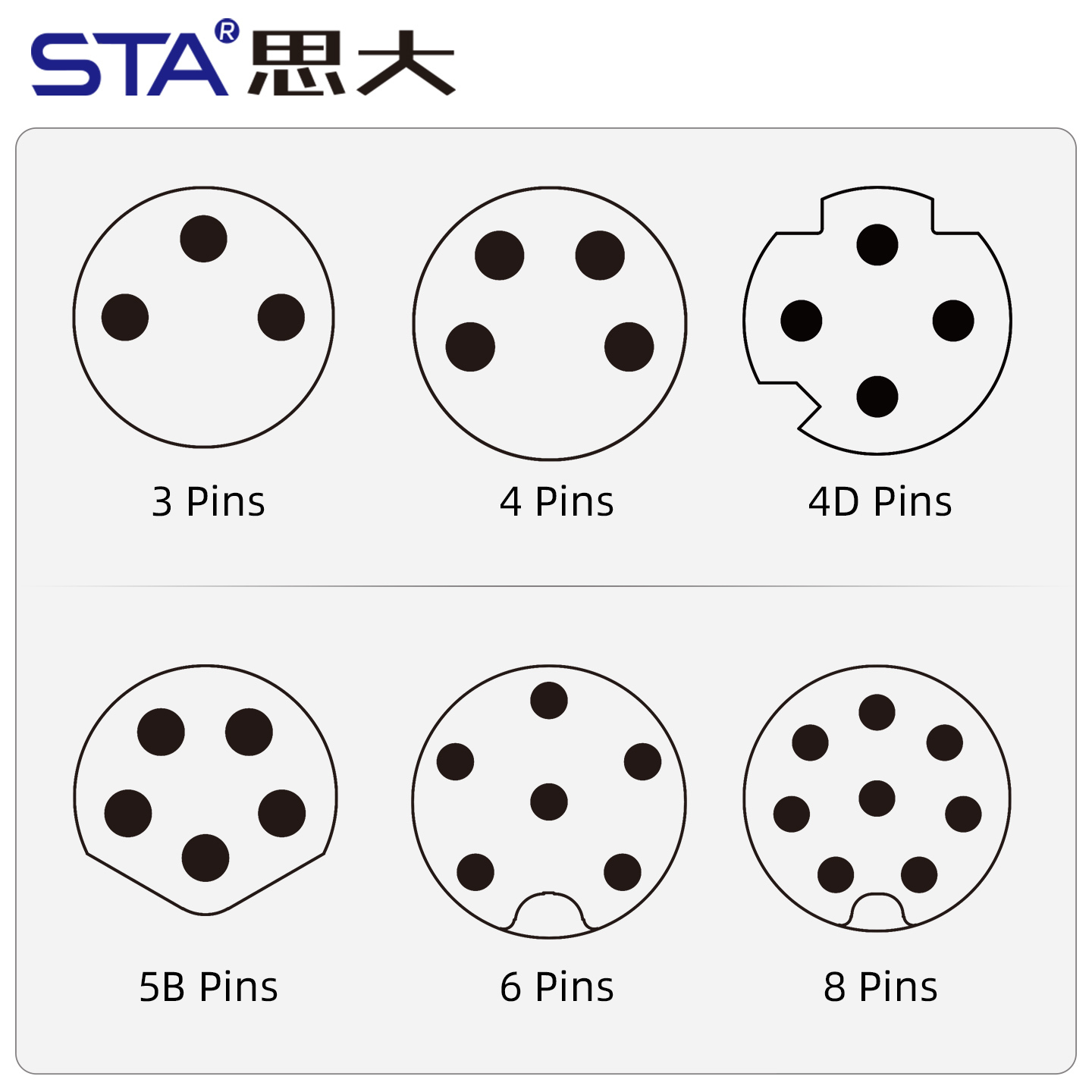

Available in 3/4/5/6/8-pin configurations, this M8 solder connector supports diverse signal and field communication requirements. It ensures reliable operation in sensor networks, industrial controllers, and automated systems where multiple signal channels and compact wiring are required.

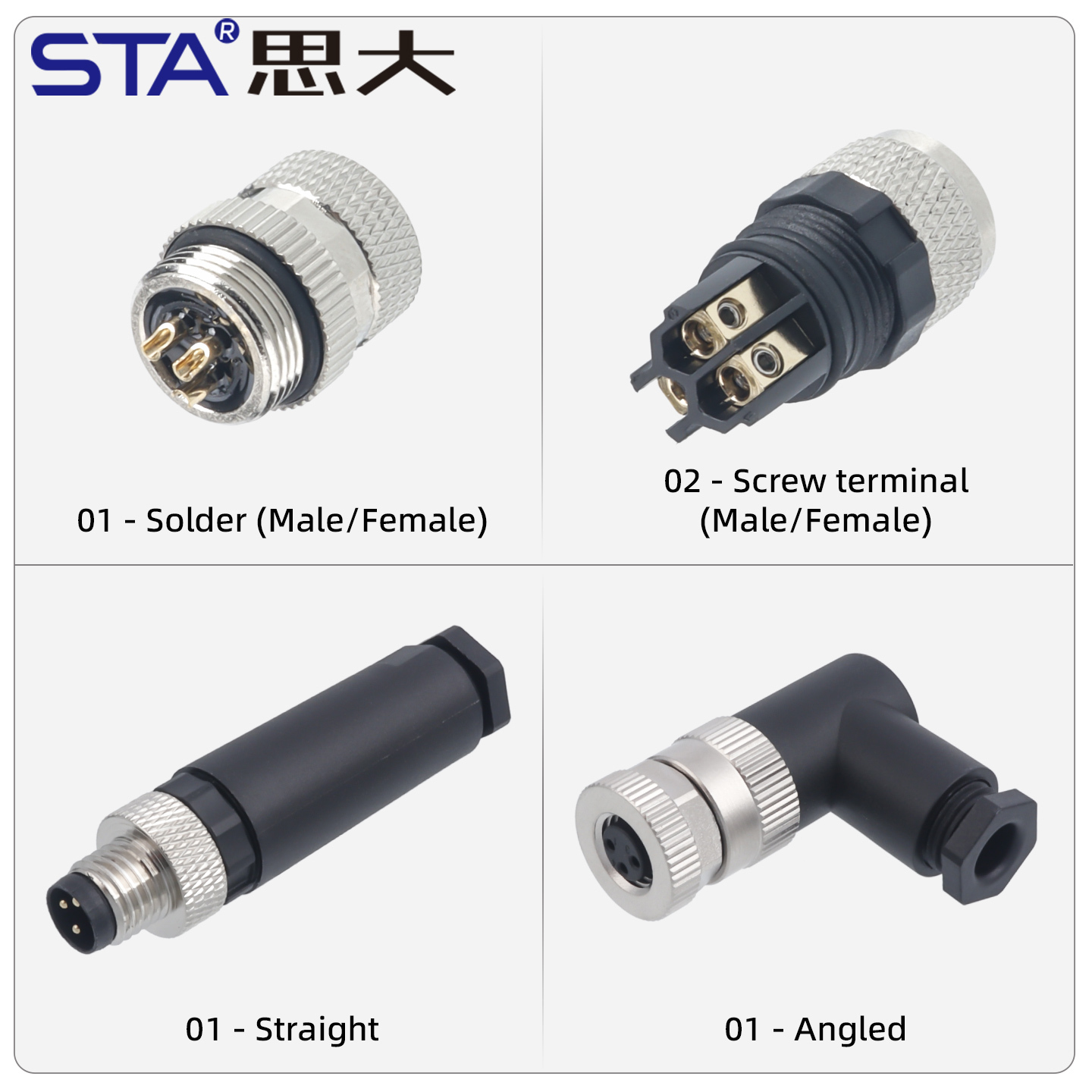

2. Solder Termination for Stable Signal Transmission
Solder contacts provide strong mechanical bonding and excellent electrical conductivity. This ensures secure signal transmission even under vibration, movement, or temperature fluctuations — ideal for robotics, conveyors, and precision automation machines.
3. IP67 Waterproof & Industrial-Grade Sealing
Designed with environmental sealing and a threaded locking interface, the connector reaches IP67 protection when mated. It resists dust, moisture, oil, and contaminants, making it suitable for outdoor equipment, CNC machines, industrial sensors, and harsh production lines.

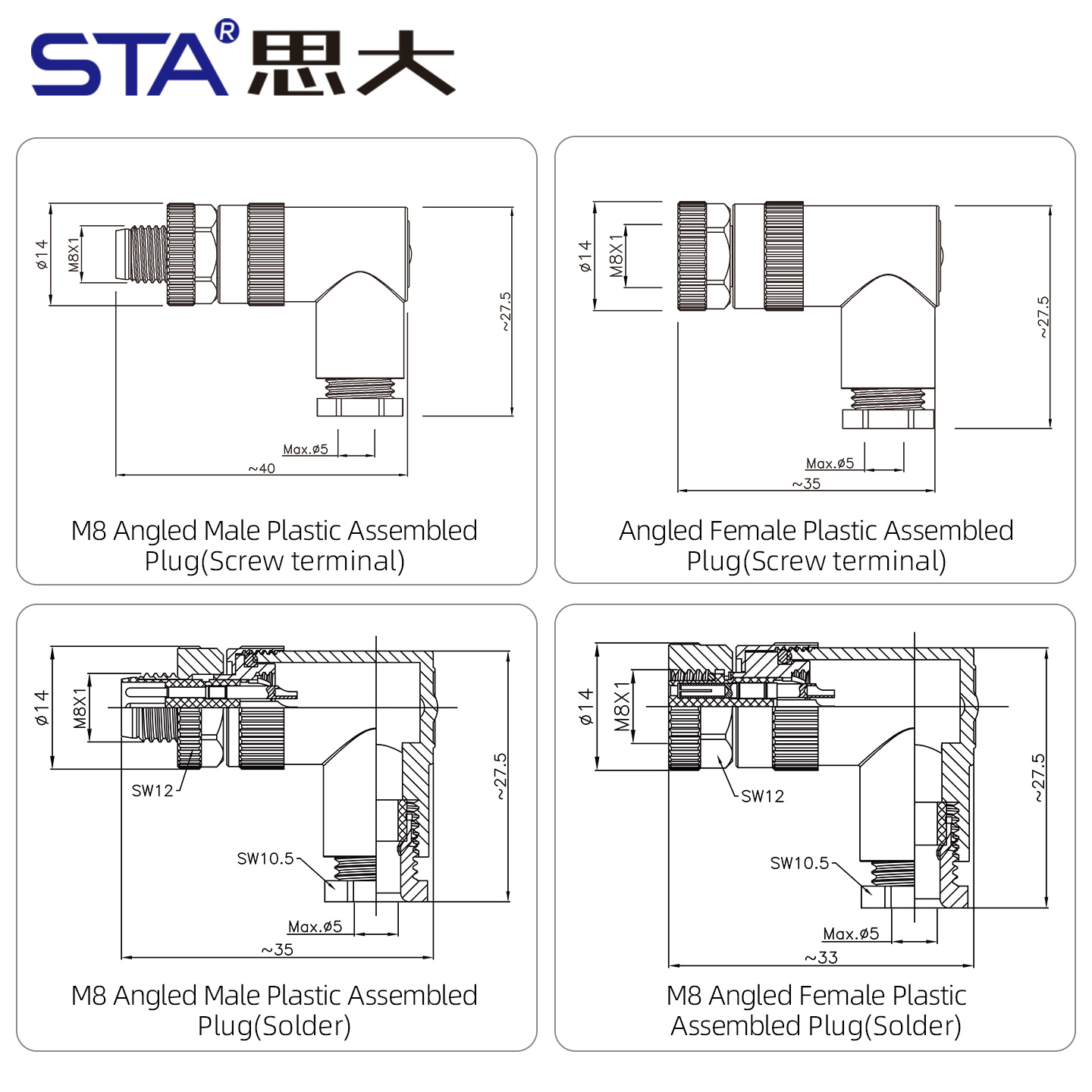

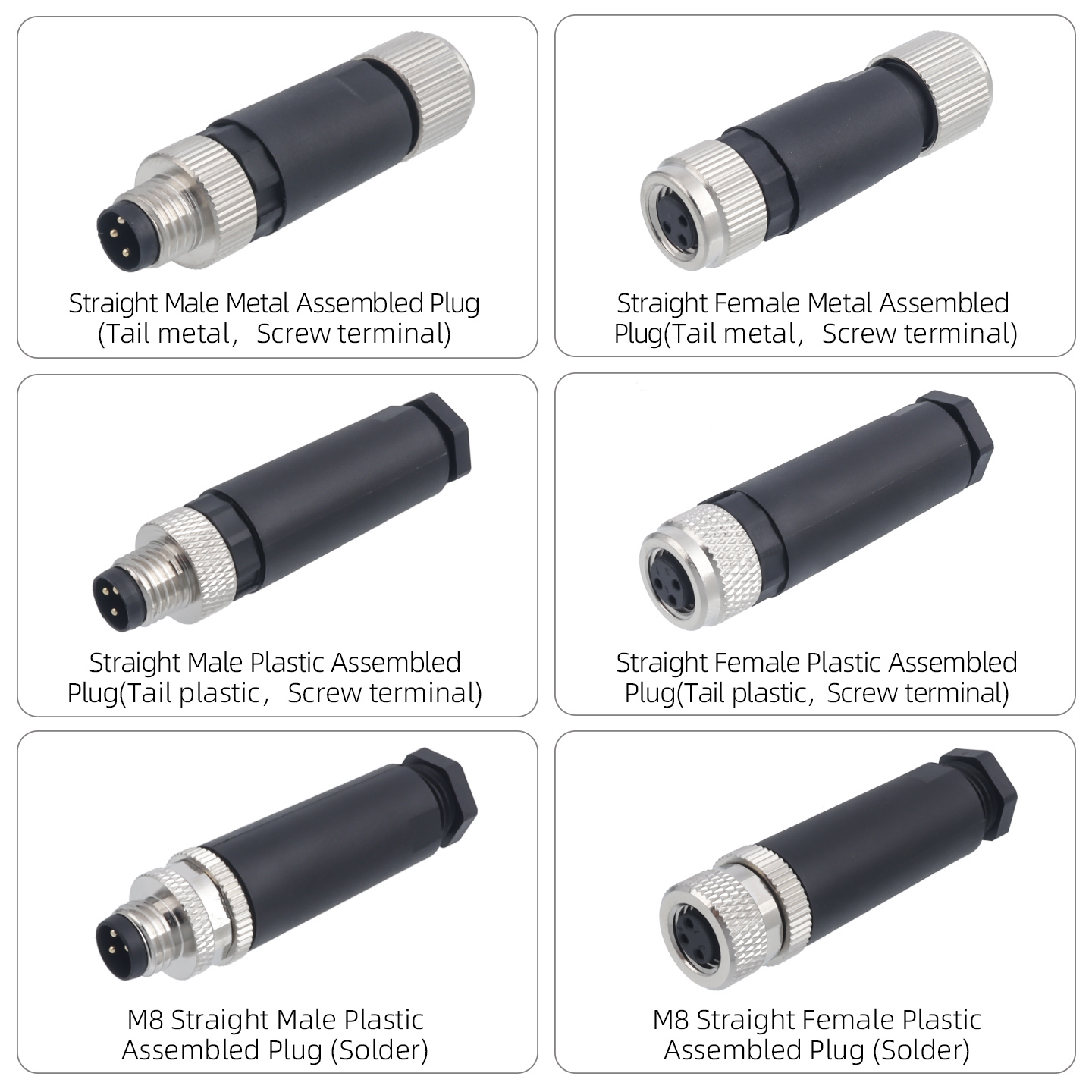

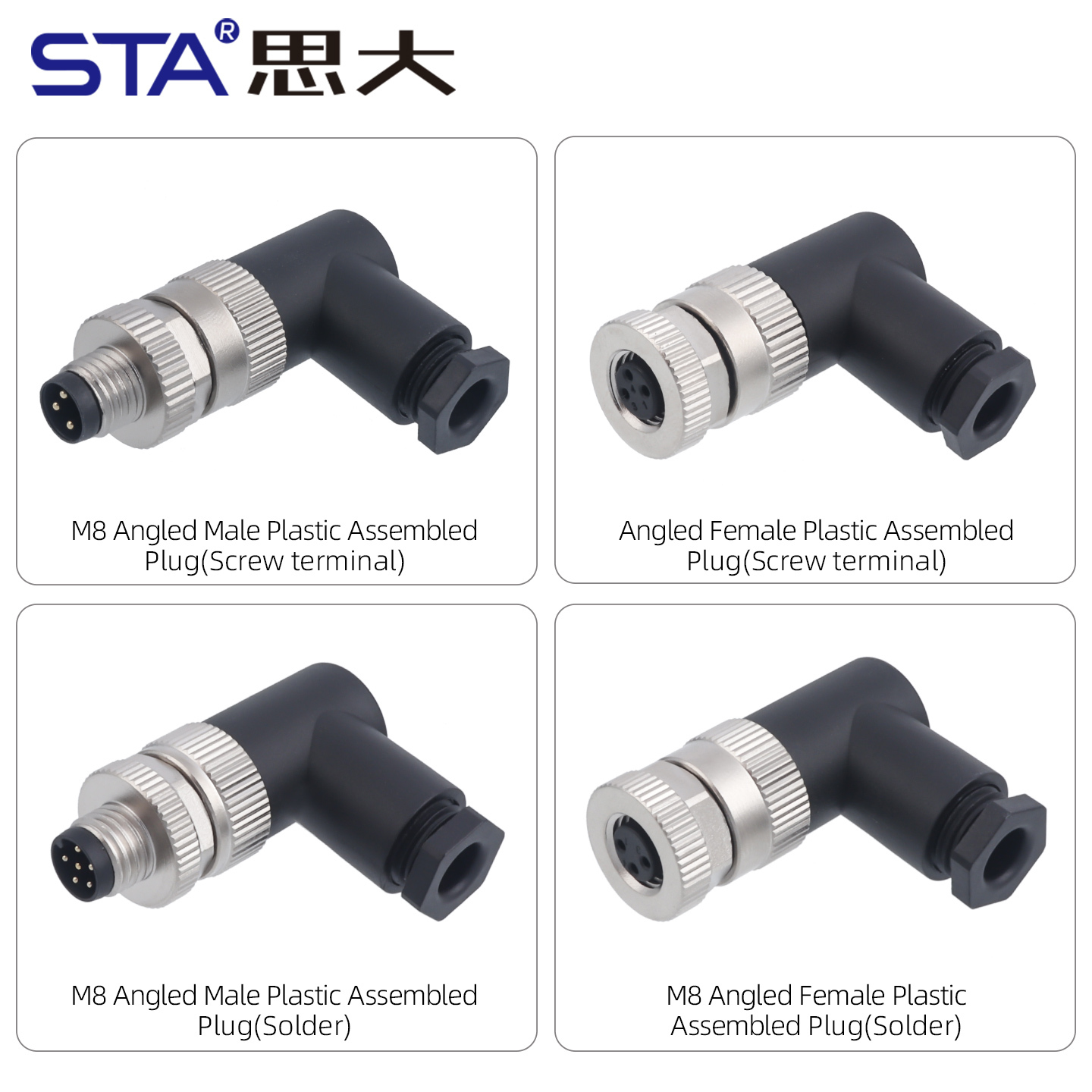

4. Straight & Right-Angle Options for Flexible Routing
Offered in straight and 90-degree angled plug versions to fit limited-space installations. The angled model supports corner wiring and compact panels, improving cable routing efficiency in automation cabinets and moving systems.
5. Lightweight Plastic Housing with Anti-Vibration Reliability
The reinforced PA66 housing ensures durability, corrosion resistance, and high dielectric strength while maintaining a lightweight structure. Threaded coupling and molded design improve shock and vibration resistance, extending service life in dynamic applications.
Product Uses
Industrial Sensors & Actuators Used for proximity sensors, encoders, level switches, and control actuators.
Robotics & Motion Automation Reliable wiring for robot end-effectors, AGVs, assembly robots, and servo motion devices.
Factory Automation & PLC Systems Ideal for PLC I/O modules, machine vision devices, conveyors, and CNC systems.
Measurement & Instrumentation Stable signal link for test instruments, meters, and process monitoring devices.
