The STA M8 unshielded straight and angled overmolded plug connector is designed for compact signal and power transmission in automation, sensors, and LED lighting applications. This connector is available in 3, 4, 5, 6, and 8-pin configurations, with both male and female options. The unshielded design provides an economical and flexible wiring solution, ideal for general-purpose environments. Featuring TPU/PVC overmolding, nickel-plated brass housing, and IP67 waterproof sealing, it ensures reliable connectivity and long service life even under vibration and outdoor conditions.
Connector Type
M8 Unshielded Overmolded Plug
Cable Outlet
Straight / Right Angled
Pin Count

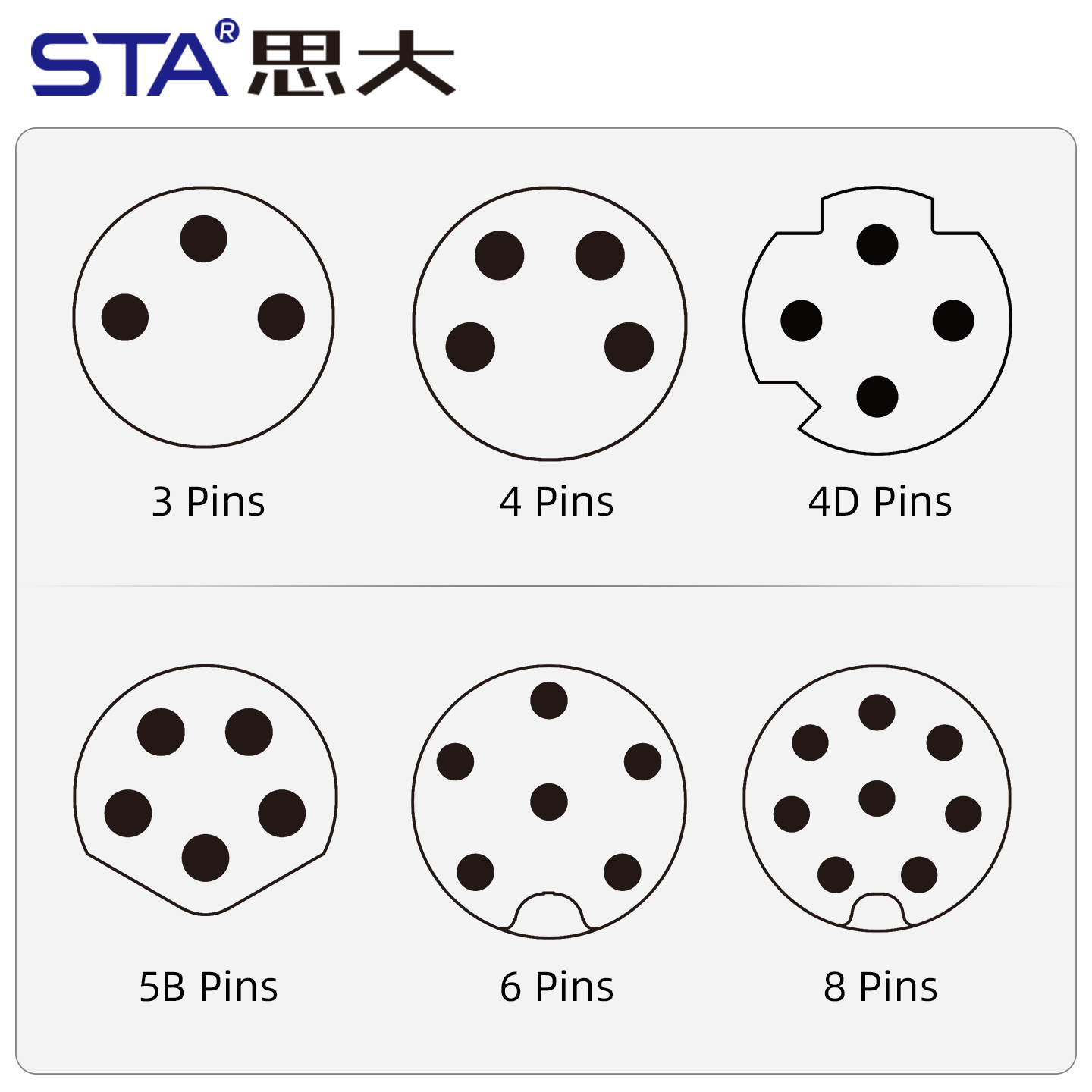

3 / 4 / 5 / 6 / 8 pins
Gender
Male / Female
Cable Type
PVC / TPU / PUR
Rated Voltage
1–3A (depending on pin count)
Contact Resistance
≤10mΩ
Insulation Resistance
≥100MΩ
Temperature Range
-25°C ~ +85°C
Insulator Material
PA66
Socket
Front Mount Solder Type, Back Mount Solder Type and PCB board type
Sealed with epoxy resin and rubber materials, this connector achieves IP67 protection, preventing dust and water ingress during outdoor or industrial operations.
2. Cost-Effective Unshielded Design
The unshielded version provides a lightweight and economical alternative for standard signal or power transmission without the need for EMI protection.
3. Strong Overmolded Structure
Manufactured with TPU/PVC molding, it offers high tensile strength, bend resistance, and stable performance in dynamic wiring applications.
4. Compact & Flexible Connection
The M8 interface saves installation space and allows straight or angled outlet options, making it suitable for tight automation layouts.
5. Durable Contacts and Housing
Gold-plated brass or phosphorus copper contacts ensure ≤5mΩ contact resistance, maintaining reliable electrical conductivity and corrosion resistance.

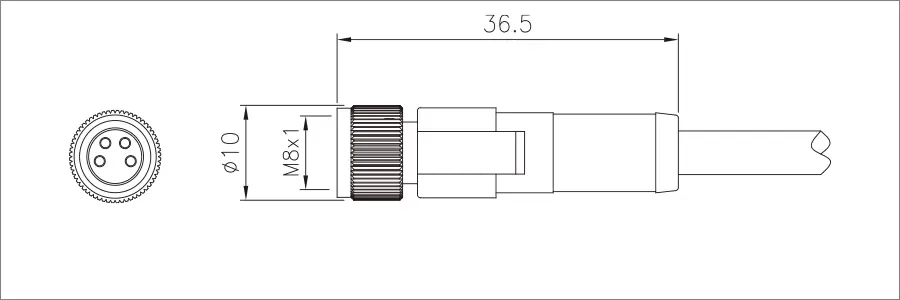

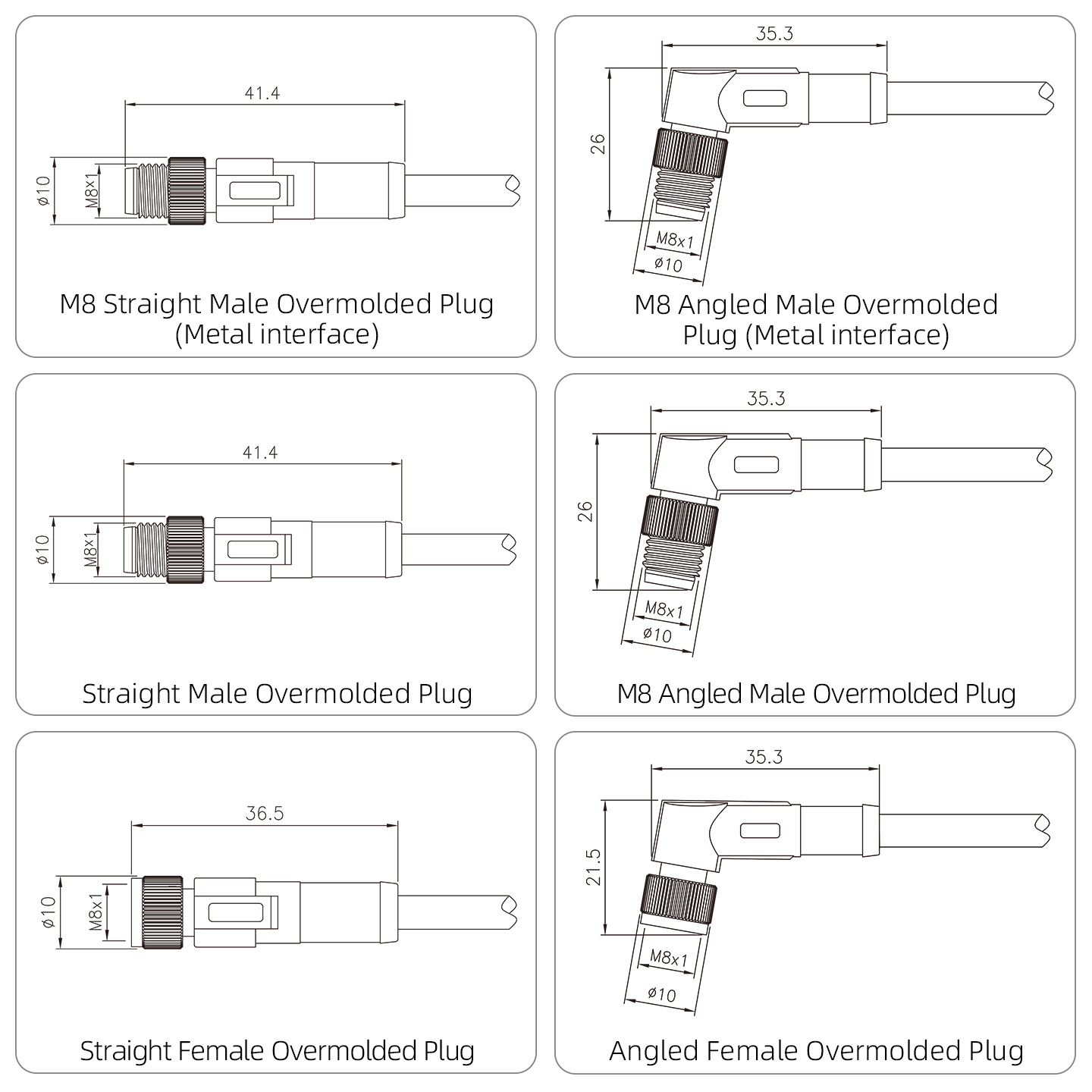

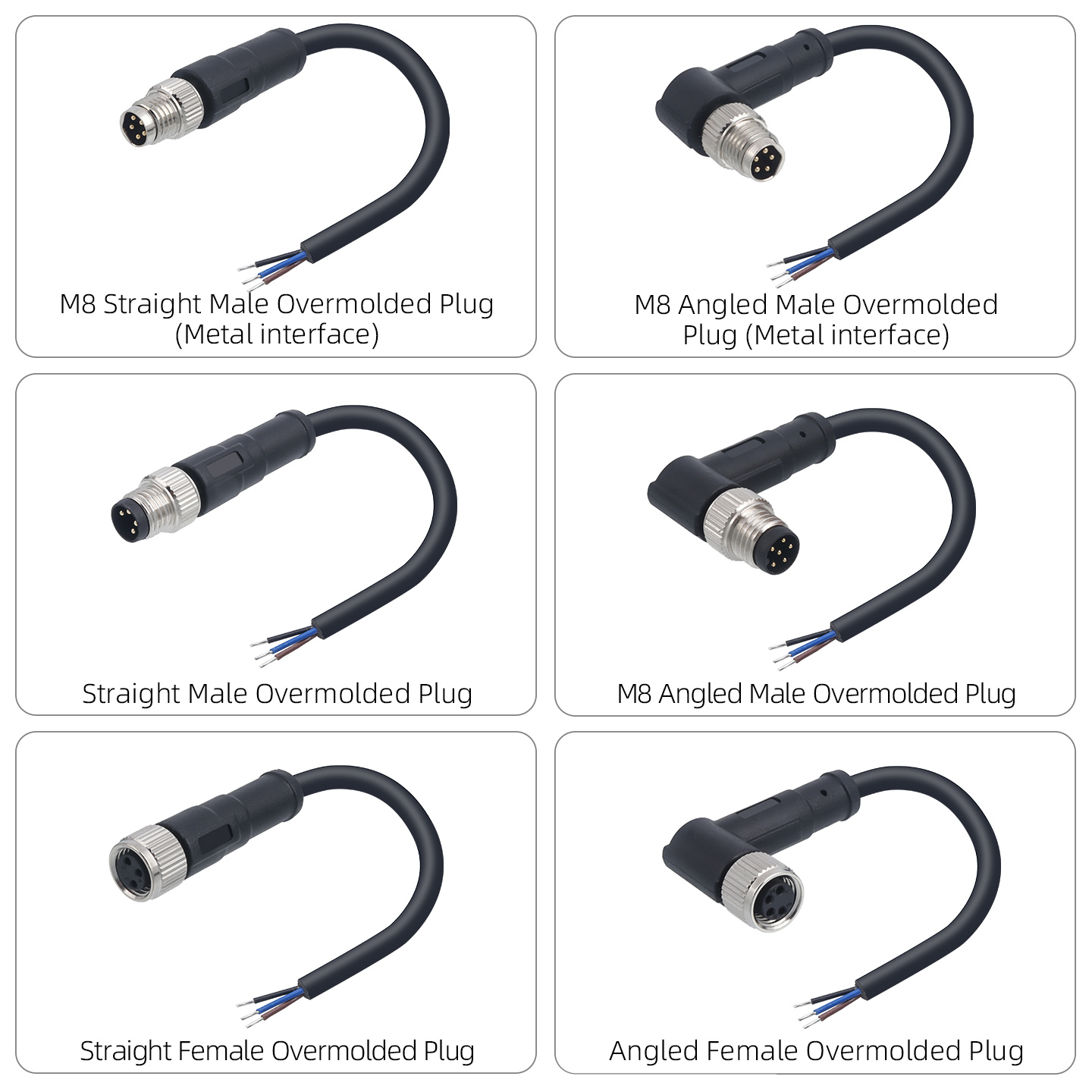

M8 Straight Male Overmolded Plug
M8 Straight Female Overmolded Plug

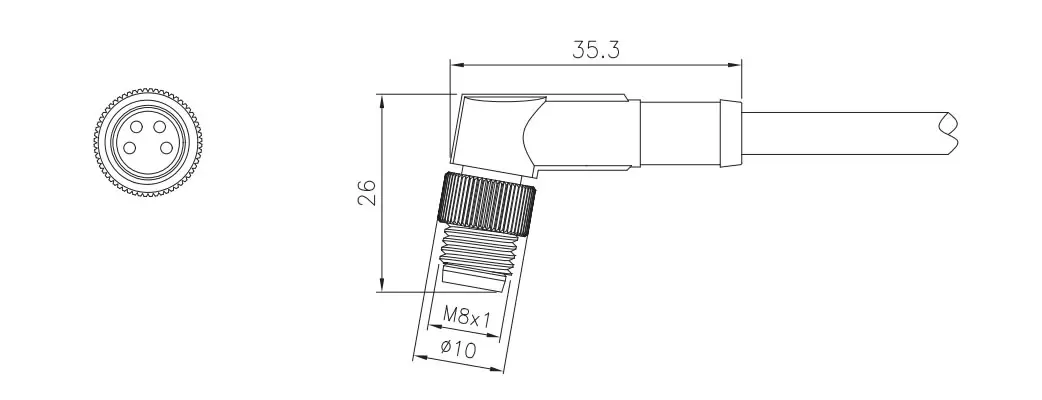

M8 Angled Male Overmolded Plug

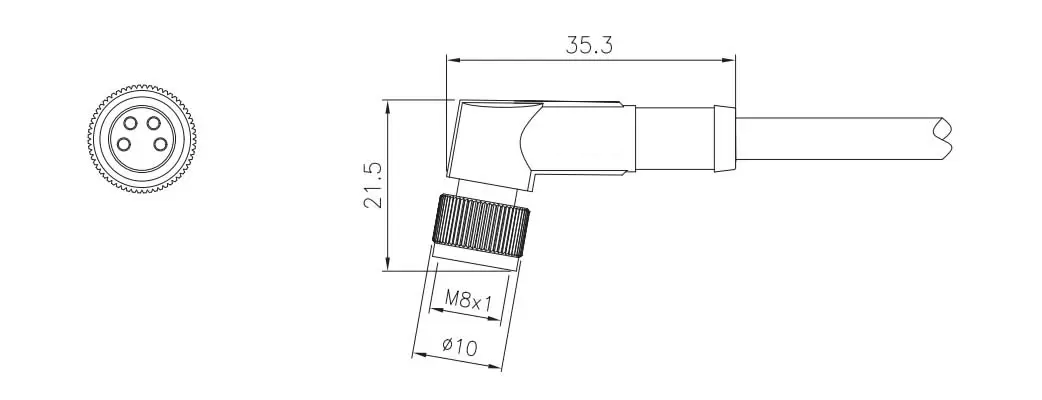

M8 Angled Female Overmolded Plug
Product Uses
Industrial Sensors and Actuators: For power and signal connection in control systems.
LED Lighting Systems: Reliable waterproof connection for outdoor and decorative lighting.
Automation Equipment: Suitable for robotic wiring, PLC, and I/O modules.
Test and Measurement Instruments: Ensures stable signal transmission with high reliability.
Communication and Control Devices: Used in smart equipment and electronic assemblies.
