The MS3116 Plug series (MS3116E, MS3116F, and MS3116J) from Staconnector represents a high-reliability, straight cable-mount interconnect solution built for rugged environments. Featuring a rapid 3-point bayonet coupling mechanism, these straight circular plugs are available in both male pin and female socket genders. Engineered in strict compliance with MIL-DTL-26482 Series I specifications, this versatile plug lineup offers optimized backshell variants to ensure moisture-proof sealing, heavy-duty strain relief, and superior signal integrity across aerospace and industrial platforms.

Standard

MIL-DTL-26482 Series 1 / MS3116

Shell Material

Aluminum Alloy (Olive Drab / Black Zinc RoHS)

Insulator

Synthetic Rubber (High Dielectric)

Waterproof

48h at 6ft (MIL-DTL-26482 3.6.14)

Vibration

10μs max disc. @ 10-2000Hz (15g)

Insulator & Grommet

Resilient Synthetic Rubber

Contact Material

Copper Alloy with Gold Plate Finish

Connector Type:

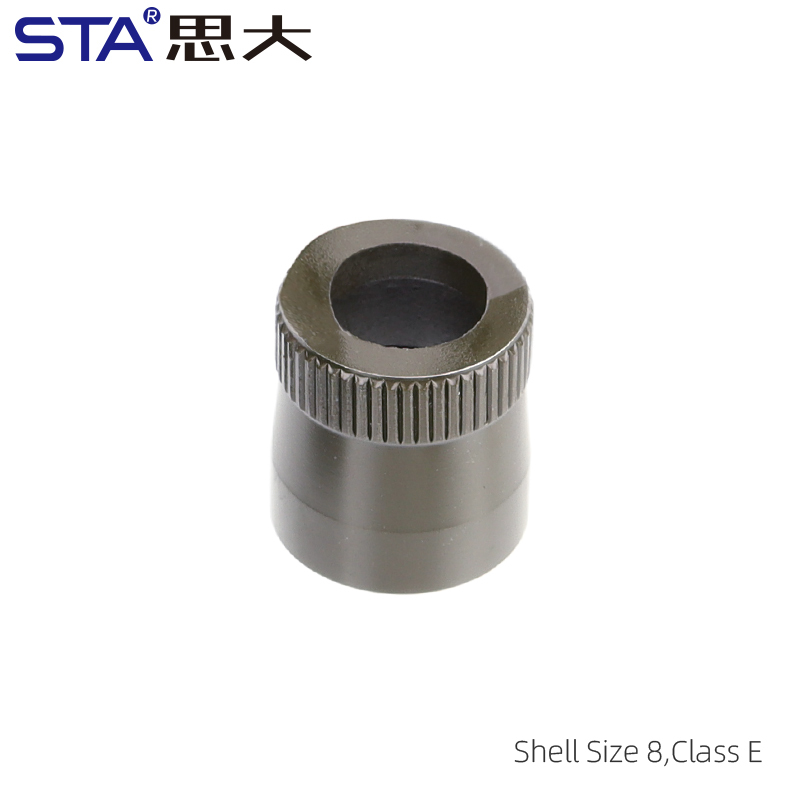

E-tail attachment

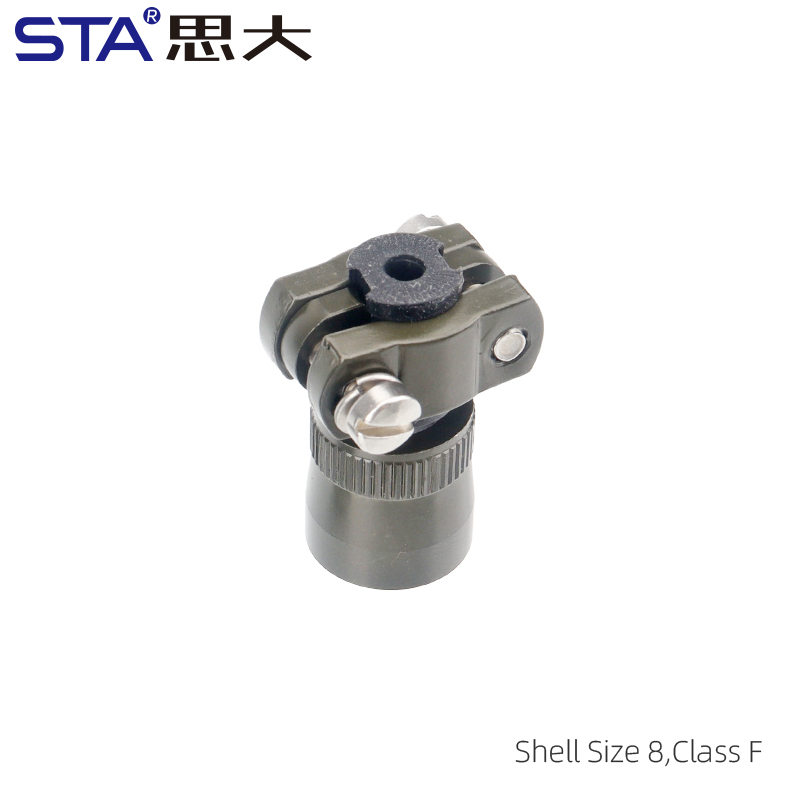

F-tail attachment

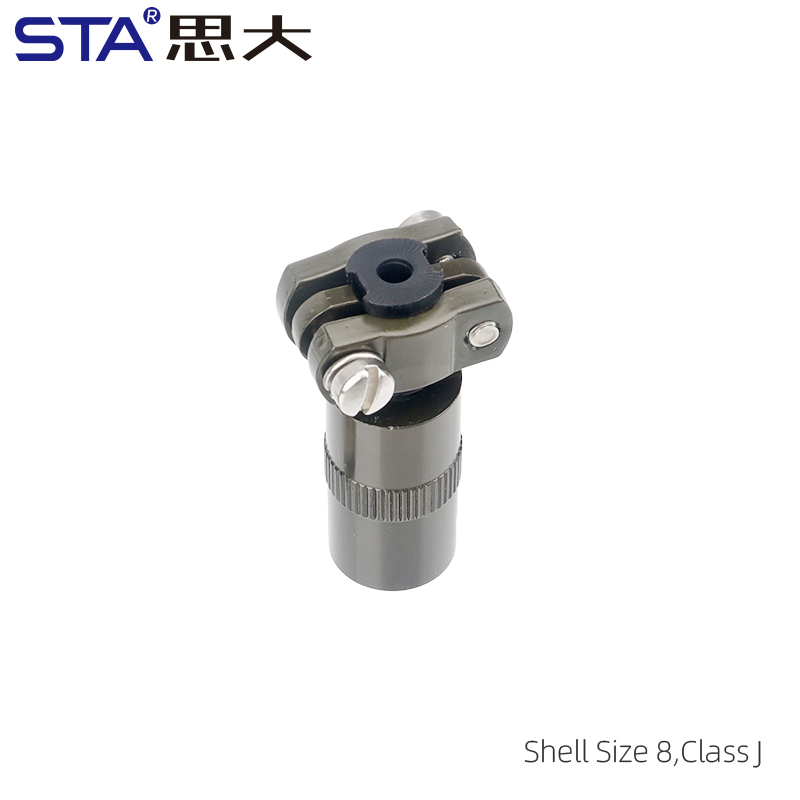

J-tail attachment

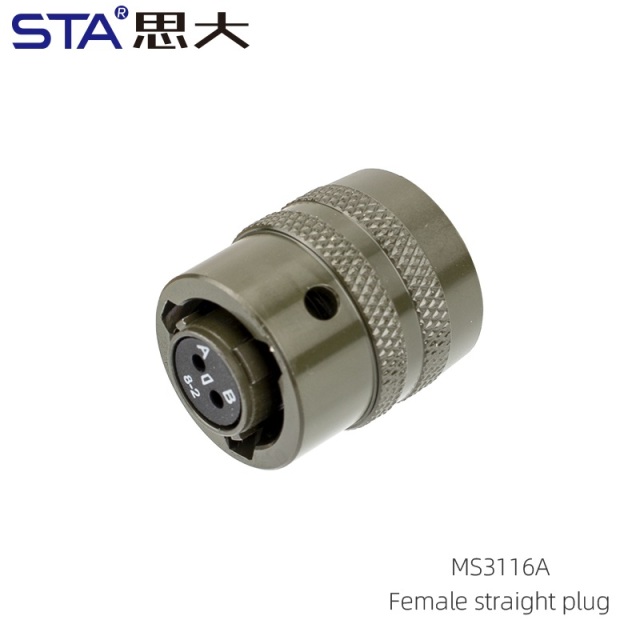

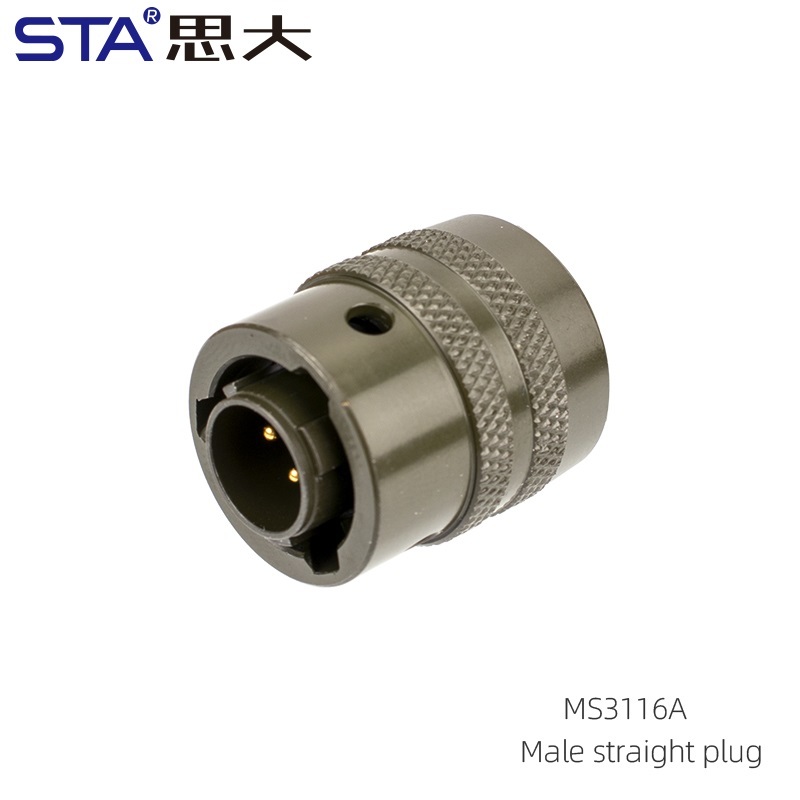

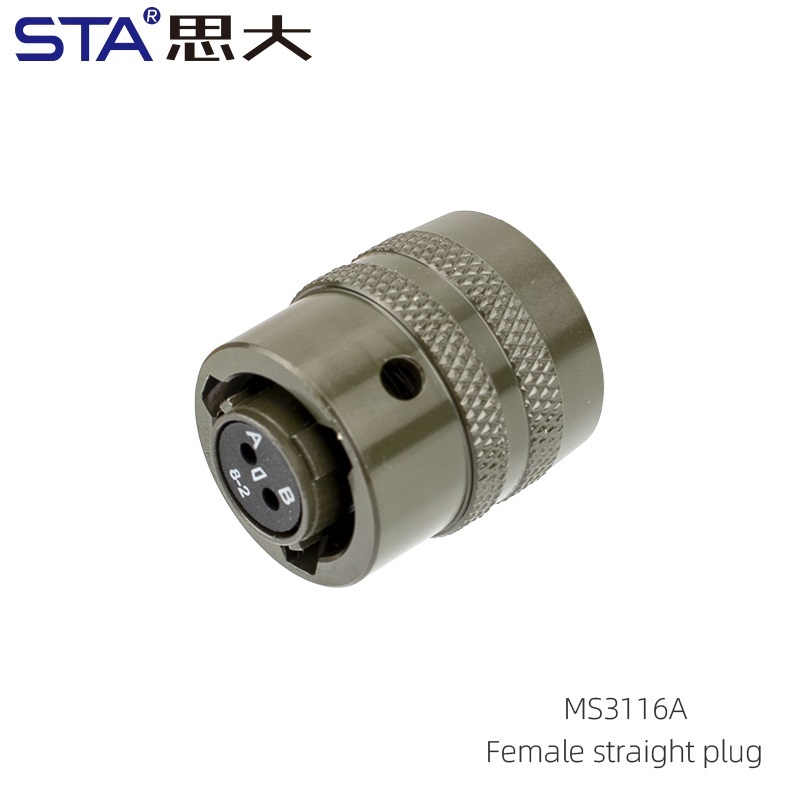

MS3116A-8-2P Straight Plug

MS3116A-8-2S Straight Plug

MS3116A-8-3P Straight Plug

MS3116A-8-3S Straight Plug

MS3116A-8-4P Straight Plug

MS3116A-8-4S Straight Plug

MS3116A-8-33P Straight Plug

MS3116A-8-33S Straight Plug

MS3116A-10-5P Straight Plug

MS3116A-10-5S Straight Plug

MS3116E-10-5P Straight Plug

MS3116E-10-5S Straight Plug

MS3116F-10-5P Straight Plug

MS3116F-10-5S Straight Plug

MS3116J-10-5P Straight Plug

MS3116J-10-5S Straight Plug

MS3116E-8-2P Straight Plug

MS3116E-8-2S Straight Plug

MS3116F-8-2P Straight Plug

MS3116F-8-2S Straight Plug

MS3116J-8-2P Straight Plug

MS3116J-8-2S Straight Plug

MS3116E-8-3P Straight Plug

MS3116E-8-3S Straight Plug

MS3116F-8-3P Straight Plug

MS3116F-8-3S Straight Plug

MS3116E-8-4P Straight Plug

MS3116E-8-4S Straight Plug

MS3116F-8-4P Straight Plug

MS3116F-8-4S Straight Plug

MS3116J-8-3P Straight Plug

MS3116J-8-3S Straight Plug

MS3116J-8-4P Straight Plug

MS3116J-8-4S Straight Plug

MS3116A-10-6P Straight Plug

MS3116A-10-6S Straight Plug

MS3116F-10-6P Straight Plug

MS3116F-10-6S Straight Plug

MS3116J-10-6P Straight Plug

MS3116J-10-6S Straight Plug

MS3116F12-10P

MS3116F12-10S

MS3116J-12-10P

MS3116J-12-10S

MS3116A-12-10P

MS3116A-12-10S

MS3116E-12-10P

MS3116E-12-10S

MS3116A-14-12P

MS3116A-14-12S

MS3116E-14-12P

MS3116E-14-12S

MS3116F-14-12P

MS3116F-14-12S

MS3116J-14-12P

MS3116J-14-12S

GET A QUOTE

Description

MIL-DTL-26482 Connectors Specification

Versatile Backshell Suffix Options: We offer MS3116E for standard environmental sealing, MS3116F with an integrated cable clamp for strain relief, and MS3116J featuring a heavy-duty rubber bushing to maximize jacketed cable grip.

Comprehensive Gender Configuration: Our inventory fully supports high-conductivity male pin (P) and recessed female socket (S) contact arrangements, allowing engineering teams complete design freedom for power intake or signal distribution links.
Vibration Proof Bayonet Interface: The advanced 3-point bayonet locking system enables rapid coupling with an audible and tactile click, eliminating loose connections in high-vibration aerospace and automated industrial machinery.
Superior Ingress Protection: Utilizing specialized Neoprene internal dielectrics and environmental backshell grommets, our MS3116 series achieves a true mated IP67 rating, effectively sealing out water, oil, industrial lubricants, and fine dust.

Intermateable Cross Brand Standards: Designed to exact military dimensional metrics, Staconnector MS3116 plugs offer a drop-in factory alternative that intermates seamlessly with existing brand-name receptacles from Amphenol, Souriau, and ITT Cannon.

Cross-Reference Guide: MS3116E / F / J (Male Pin & Female Socket)

Staconnector MS3116 series plugs offer complete cross-brand physical, mechanical, and electrical swap-out capabilities. Use the tables below to select your exact factory alternative code based on backshell suffix and connector gender.

Legal Disclaimer: All third-party trademarks (including Amphenol, Souriau, and ITT Cannon) are the registered property of their respective owners. Staconnector parts are independent alternative solutions engineered to match identical military standards and mating metrics.

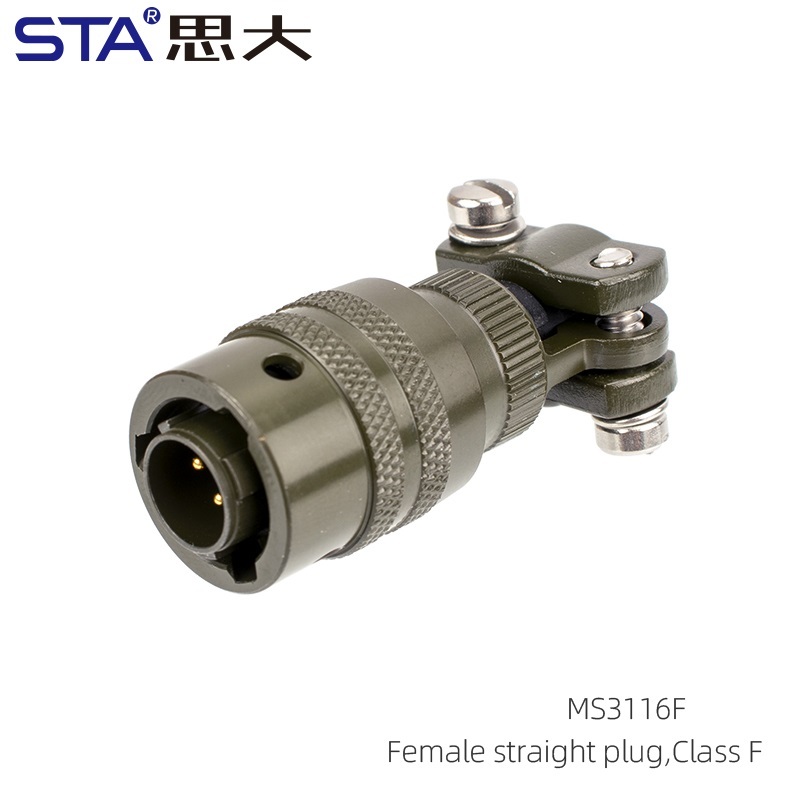

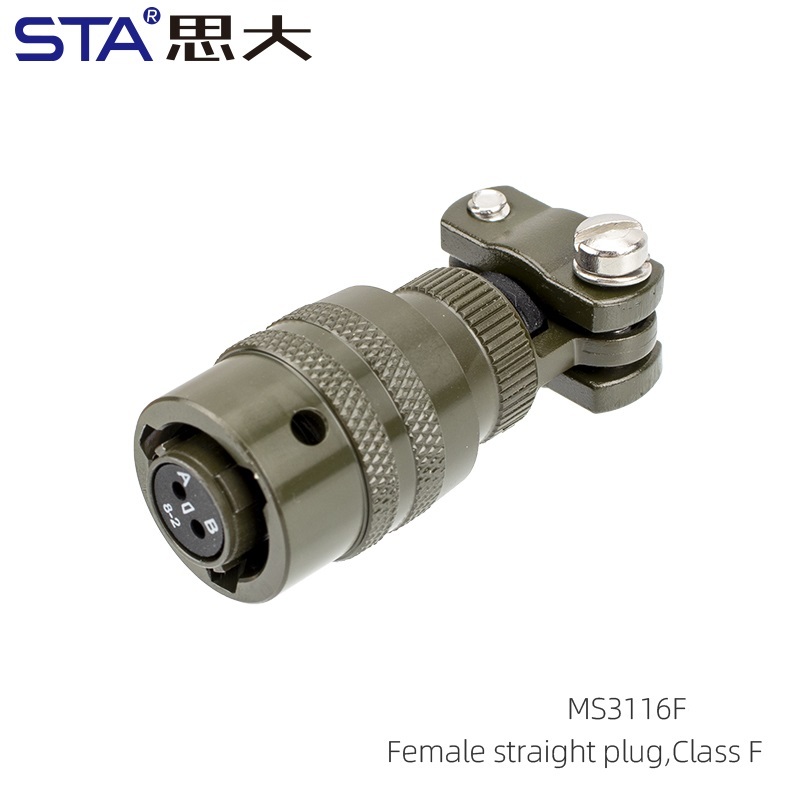

1. MS3116F Series (Environmental Backshell with Cable Clamp)

The suffix "F" provides standard environmental wire sealing along with an integrated strain-relief metal clamp. It is equivalent to Amphenol "W", Souriau "JC", and ITT Cannon "F".

── Male Pin Plugs

Layout Code	Staconnector P/N	Amphenol PT Equivalent	Souriau 851 Alternative	ITT Cannon KPT Replacement
8-2	MS3116F-8-2P	PT06W-8-2P	85106JC82P50	KPT06F8-2P
8-3	MS3116F-8-3P	PT06W-8-3P	85106JC83P50	KPT06F8-3P
8-33	MS3116F-8-33P	PT06W-8-33P	85106JC833P50	KPT06F8-33P
8-4	MS3116F-8-4P	PT06W-8-4P	85106JC84P50	KPT06F8-4P
10-5	MS3116F-10-5P	PT06W-10-5P	85106JC105P50	KPT06F10-5P
10-6	MS3116F-10-6P	PT06W-10-6P	85106JC106P50	KPT06F10-6P
10-7	MS3116F-10-7P	PT06W-10-7P	85106JC107P50	KPT06F10-7P
12-3	MS3116F-12-3P	PT06W-12-3P	85106JC123P50	KPT06F12-3P
12-4	MS3116F-12-4P	PT06W-12-4P	85106JC124P50	KPT06F12-4P
12-8	MS3116F-12-8P	PT06W-12-8P	85106JC128P50	KPT06F12-8P
12-10	MS3116F-12-10P	PT06W-12-10P	85106JC1210P50	KPT06F12-10P
12-14	MS3116F-12-14P	PT06W-12-14P	85106JC1214P50	KPT06F12-14P
14-4	MS3116F-14-4P	PT06W-14-4P	85106JC144P50	KPT06F14-4P
14-AA	MS3116F-14-AAP	PT06W-14-AAP	85106JC14AAP50	KPT06F14-AAP
14-12	MS3116F-14-12P	PT06W-14-12P	85106JC1412P50	KPT06F14-12P
14-14	MS3116F-14-14P	PT06W-14-14P	85106JC1414P50	KPT06F14-14P
14-19	MS3116F-14-19P	PT06W-14-19P	85106JC1419P50	KPT06F14-19P
16-8	MS3116F-16-8P	PT06W-16-8P	85106JC168P50	KPT06F16-8P
16-26	MS3116F-16-26P	PT06W-16-26P	85106JC1626P50	KPT06F16-26P
18-32	MS3116F-18-32P	PT06W-18-32P	85106JC1832P50	KPT06F18-32P
20-27	MS3116F-20-27P	PT06W-20-27P	85106JC2027P50	KPT06F20-27P
20-39	MS3116F-20-39P	PT06W-20-39P	85106JC2039P50	KPT06F20-39P
20-41	MS3116F-20-41P	PT06W-20-41P	85106JC2041P50	KPT06F20-41P

── Female Socket Plugs

Layout Code	Staconnector P/N	Amphenol PT Equivalent	Souriau 851 Alternative	ITT Cannon KPT Replacement
8-2	MS3116F-8-2S	PT06W-8-2S	85106JC82S50	KPT06F8-2S
8-3	MS3116F-8-3S	PT06W-8-3S	85106JC83S50	KPT06F8-3S
8-33	MS3116F-8-33S	PT06W-8-33S	85106JC833S50	KPT06F8-33S
8-4	MS3116F-8-4S	PT06W-8-4S	85106JC84S50	KPT06F8-4S
10-5	MS3116F-10-5S	PT06W-10-5S	85106JC105S50	KPT06F10-5S
10-6	MS3116F-10-6S	PT06W-10-6S	85106JC106S50	KPT06F10-6S
10-7	MS3116F-10-7S	PT06W-10-7S	85106JC107S50	KPT06F10-7S
12-3	MS3116F-12-3S	PT06W-12-3S	85106JC123S50	KPT06F12-3S
12-4	MS3116F-12-4S	PT06W-12-4S	85106JC124S50	KPT06F12-4S
12-8	MS3116F-12-8S	PT06W-12-8S	85106JC128S50	KPT06F12-8S
12-10	MS3116F-12-10S	PT06W-12-10S	85106JC1210S50	KPT06F12-10S
12-14	MS3116F-12-14S	PT06W-12-14S	85106JC1214S50	KPT06F12-14S
14-4	MS3116F-14-4S	PT06W-14-4S	85106JC144S50	KPT06F14-4S
14-AA	MS3116F-14-AAS	PT06W-14-AAS	85106JC14AAS50	KPT06F14-AAS
14-12	MS3116F-14-12S	PT06W-14-12S	85106JC1412S50	KPT06F14-12S
14-14	MS3116F-14-14S	PT06W-14-14S	85106JC1414S50	KPT06F14-14S
14-19	MS3116F-14-19S	PT06W-14-19S	85106JC1419S50	KPT06F14-19S
16-8	MS3116F-16-8S	PT06W-16-8S	85106JC168S50	KPT06F16-8S
16-26	MS3116F-16-26S	PT06W-16-26S	85106JC1626S50	KPT06F16-26S
18-32	MS3116F-18-32S	PT06W-18-32S	85106JC1832S50	KPT06F18-32S
20-27	MS3116F-20-27S	PT06W-20-27S	85106JC2027S50	KPT06F20-27S
20-39	MS3116F-20-39S	PT06W-20-39S	85106JC2039S50	KPT06F20-39S
20-41	MS3116F-20-41S	PT06W-20-41S	85106JC2041S50	KPT06F20-41S

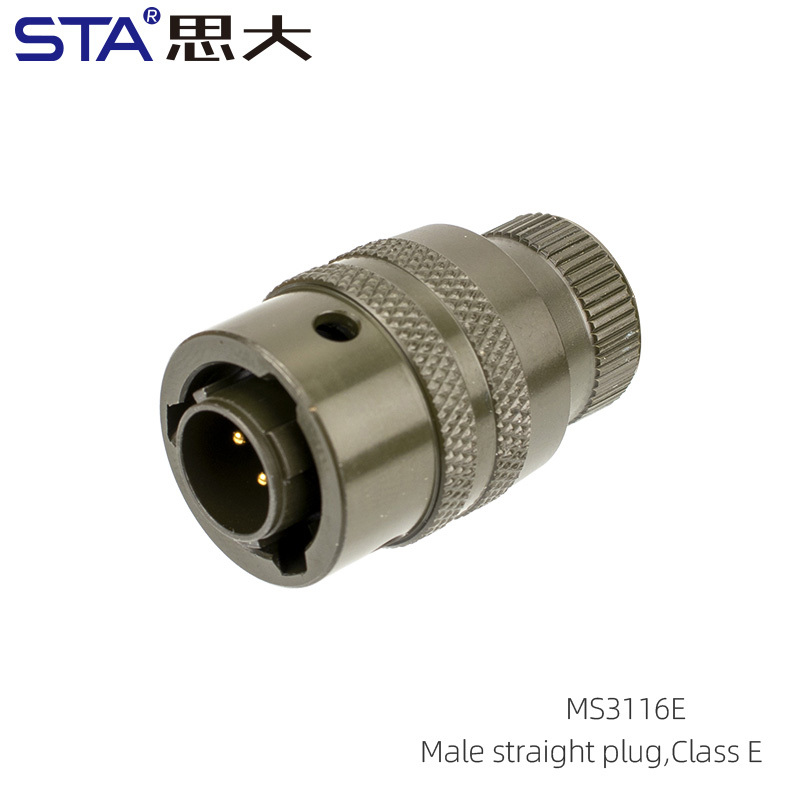

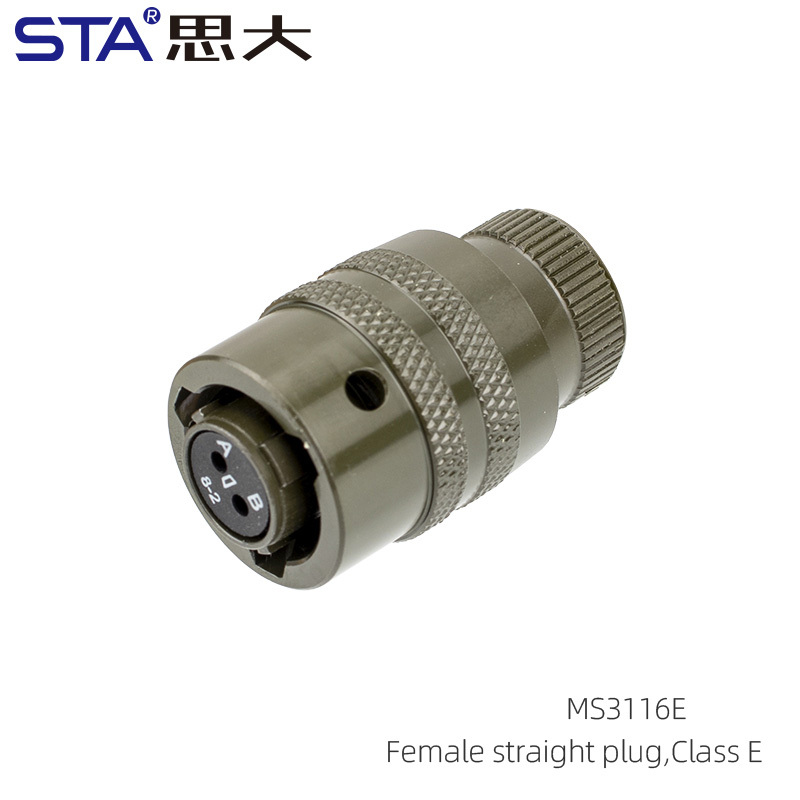

2. MS3116E Series (Standard Environmental Backshell)

── Male Pin Plug/ Female Socket Plug

Layout Code	Staconnector P/N (Male)	Staconnector P/N (Female)	Amphenol PT (P / S)	Souriau 851 (P / S)	ITT Cannon KPT (P / S)
10-6	MS3116E-10-6P	MS3116E-10-6S	PT06E-10-6P / S	85106E106P50 / S50	KPT06E10-6P / S
12-10	MS3116E-12-10P	MS3116E-12-10S	PT06E-12-10P / S	85106E1210P50 / S50	KPT06E12-10P / S
14-19	MS3116E-14-19P	MS3116E-14-19S	PT06E-14-19P / S	85106E1419P50 / S50	KPT06E14-19P / S
16-26	MS3116E-16-26P	MS3116E-16-26S	PT06E-16-26P / S	85106E1626P50 / S50	KPT06E16-26P / S

(Note: MS3116E is available for all 8-20 sizes listed in the F series using identical part construction logic: MS3116E-[Layout]-[P/S])

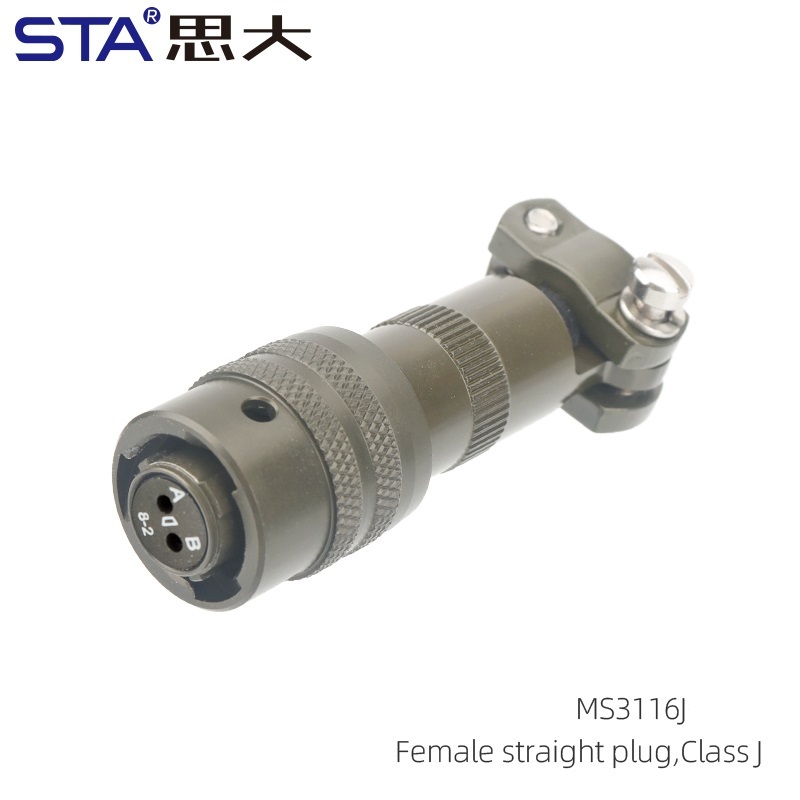

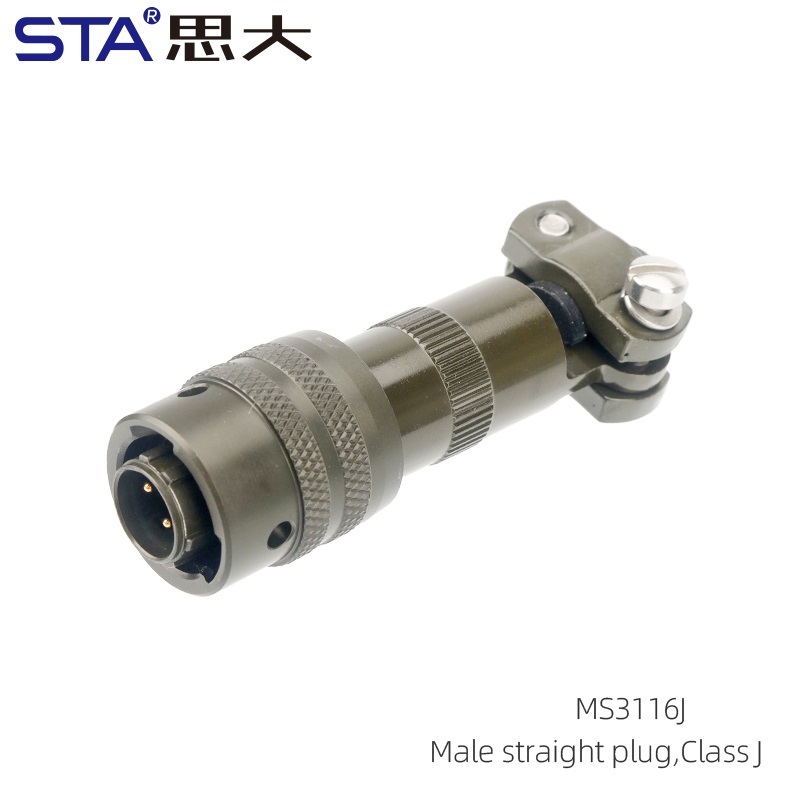

3. MS3116J Series (Environmental Backshell with Gland Bushing)

── Male Pin Plug / Female Socket Plug

Layout Code	Staconnector P/N (Male)	Staconnector P/N (Female)	Amphenol PT (P / S)	Souriau 851 (P / S)	ITT Cannon KPT (P / S)
10-6	MS3116J-10-6P	MS3116J-10-6S	PT06SE-10-6P / S	85106P106P50 / S50	KPT06J10-6P / S
12-10	MS3116J-12-10P	MS3116J-12-10S	PT06SE-12-10P / S	85106P1210P50 / S50	KPT06J12-10P / S
14-19	MS3116J-14-19P	MS3116J-14-19S	PT06SE-14-19P / S	85106P1419P50 / S50	KPT06J14-19P / S
16-26	MS3116J-16-26P	MS3116J-16-26S	PT06SE-16-26P / S	85106P1626P50 / S50	KPT06J16

Popular Part Numbers: MS3116F8-4P, MS3116F10-6P, MS3116F12-10S, MS3116F14-19P, MS3116F14-12S.

Aerospace Wire Harnesses: Custom flight-control cable routing, sensory mapping bundles, and mobile ground equipment connectivity.
Industrial Automation Line Links: Heavy-duty motor power routing, encoder signaling setups, and robotic arm articulated wire feeds.
Heavy Construction Machinery: Harsh environment diagnostic links and rugged field wiring links for mining and agricultural fleets.
Commercial Marine Electronics: Waterproof on-deck sonar cabling, navigation console links, and engine room sensor wiring.
Telecom Infrastructure Subnetworks: Outdoor base station power junctions and heavily shielded microwave tower communication assemblies.

Cross-Reference & Compatibility

Compatible Brands	Equivalents (Plugs)	Mates With (Receptacles)
MIL-DTL-26482	MS3116	MS3110, MS3111, MS3112, MS3114
Amphenol	PT06	PT00, PT01, PT02, PT07
ITT Cannon	KPT06	KPT00, KPT01, KPT02, KPT07
Souriau	85106	85100, 85101, 85102, 85107

Plug or Receptacle

MS3110(PT00,SP00,PW00,KPT00,85100) – Wall Mounting Receptacle	MS3111(PT01,PW01,KPT01,85101) – Cable Connecting Plug	MS3112(PT02,PW02,KPT02,85102E-50) – Box Mounting Receptacle	MS3114(PT07,PW07,KPT07,85107) – Jam Nut Mounting Receptacle	MS3114A(PT07A,PW07A,KPT07A,85107A) – Jam Nut Receptacle	MS3116(PT06,PW06,KPT06,85106) – Straight Plug	MS3119(PTB) – Thru-Bulkhead Receptacle


A-General duty, threaded back shell	E-Environmental without Clamp	F-Grommet seal with strain relief	J-Environmental with Clamp and Cable Jacket Gland Seal (MS3116 only)	P- Environmental Potting seal


Angular Positions	Position W	Position X	Position Y	Position Z

Shell Size 8
Insert Number:	10-5	10-6	10-7	10-8
Number of Contacts:	5	6	7	6
Contact Size:	20	20	20	20
