MS3112 Connector: MIL-DTL-26482 Bayonet Circular Socket

Name: MS3112 Connector: MIL-DTL-26482 Bayonet Circular Socket
Brand: STA Connector
Rating: 5 (1 reviews)

The MS3112 Connector series from Staconnector is a high-performance, box-mount square flange receptacle engineered for both male pin and female socket configurations. Utilizing a secure 3-point bayonet coupling mechanism, this circular receptacle ensures stable data and power transmission under high vibration. Fully compliant with MIL-DTL-26482 Series I standards, our rugged connectors offer a field-proven, waterproof alternative for industrial automation, defense electronics, and demanding aerospace systems.

Standard

MIL-DTL-26482 Series 1 / MS3112

Shell Material

Aluminum Alloy (Olive Drab / Black Zinc RoHS)

Insulator

Synthetic Rubber (High Dielectric)

Waterproof

48h at 6ft (MIL-DTL-26482 3.6.14)

Vibration

10μs max disc. @ 10-2000Hz (15g)

Insulator & Grommet

Resilient Synthetic Rubber

Contact Material

Copper Alloy with Gold Plate Finish

Connector Type:

MS3112E-8-2P

MS3112E-8-3P

MS3112E-8-33P

MS3112E-8-4P

MS3112E-10-5P

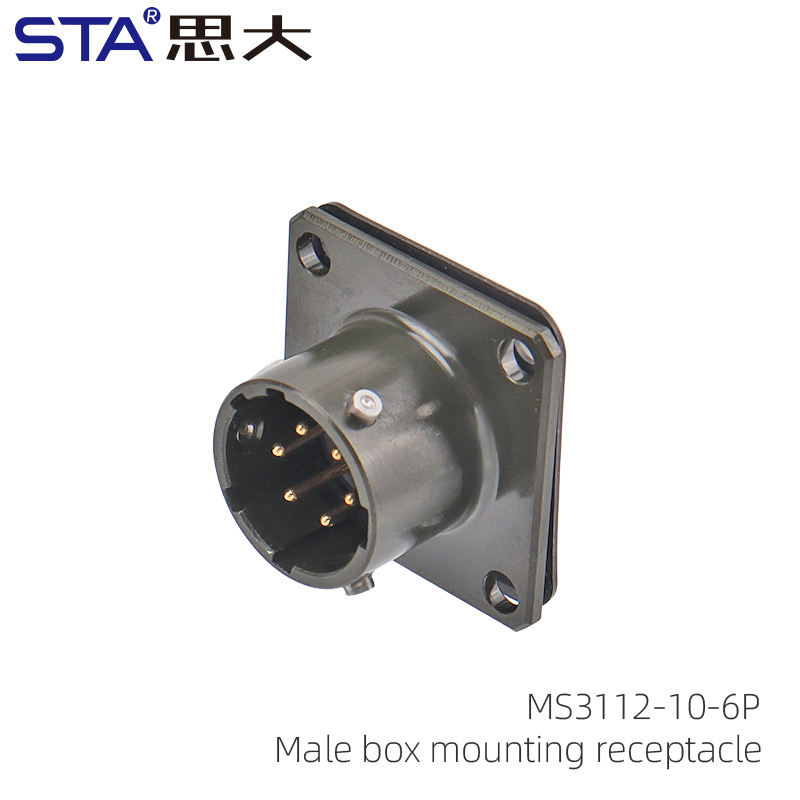

MS3112E-10-6P

MS3112E-10-7P

MS3112E-12-3P

MS3112E-12-4P

MS3112E-12-8P

MS3112E-12-10P

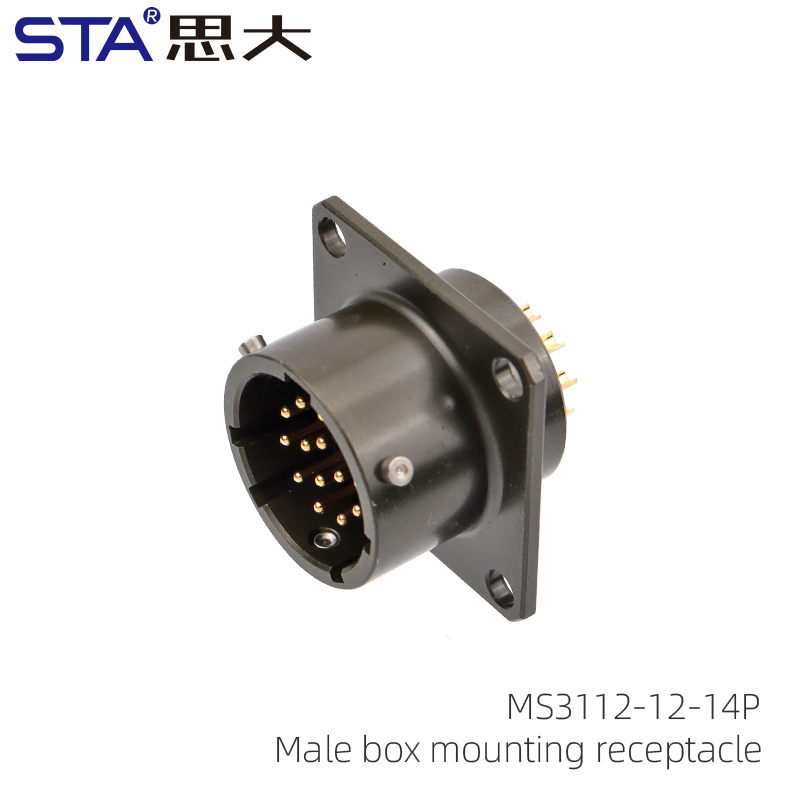

MS3112E-12-14P

MS3112E-14-4P

MS3112E-14-AAP

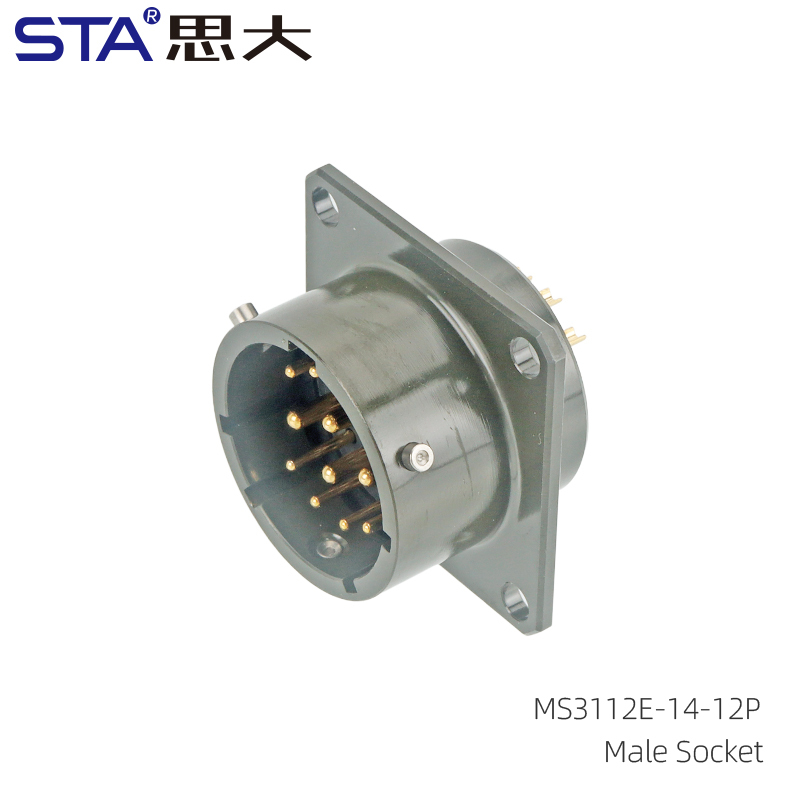

MS3112E-14-12P

MS3112E-14-14P

MS3112E-14-19P

MS3112E-16-8P

MS3112E-16-26P

MS3112E-18-32P

MS3112E-20-27P

MS3112E-20-39P

MS3112E-20-41P

MS3112E-8-2S

MS3112E-8-3S

MS3112E-8-33S

MS3112E-8-4S

MS3112E-10-5S

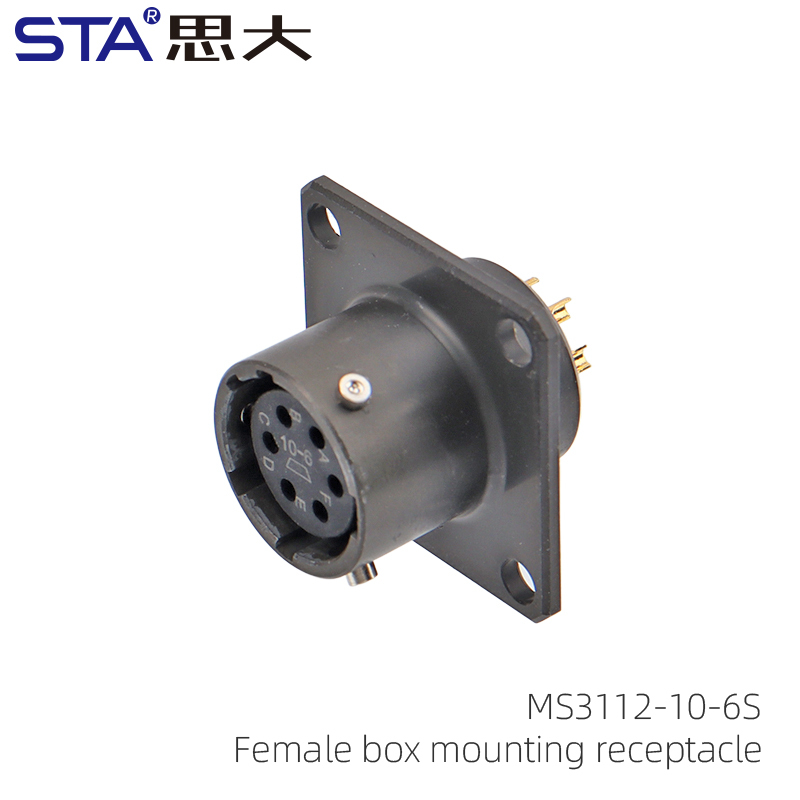

MS3112E-10-6S

MS3112E-10-7S

MS3112E-12-3S

MS3112E-12-4S

MS3112E-12-8S

MS3112E-12-10S

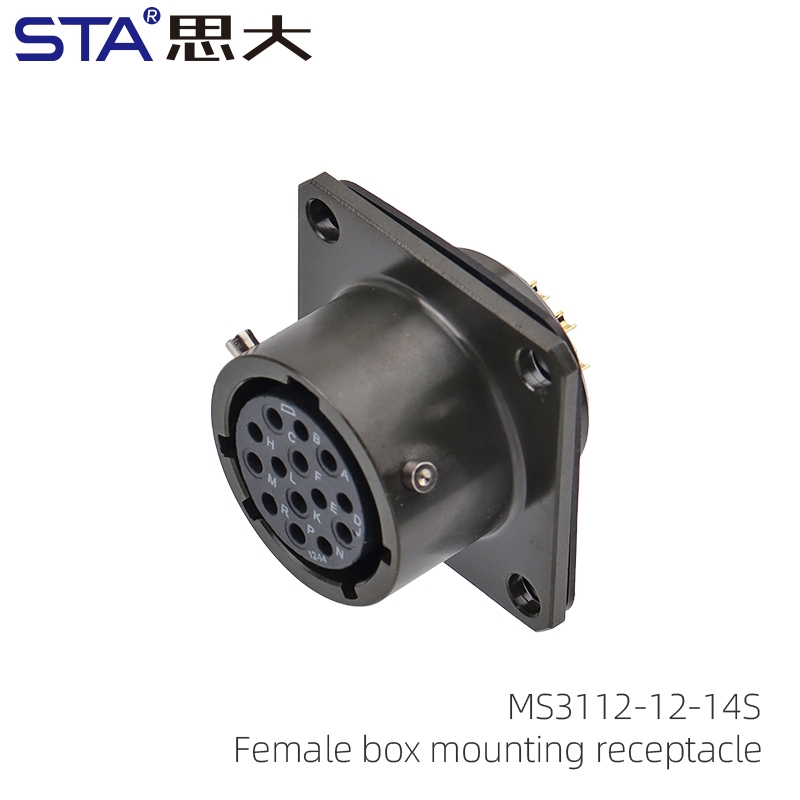

MS3112E-12-14S

MS3112E-14-4S

MS3112E-14-AAS

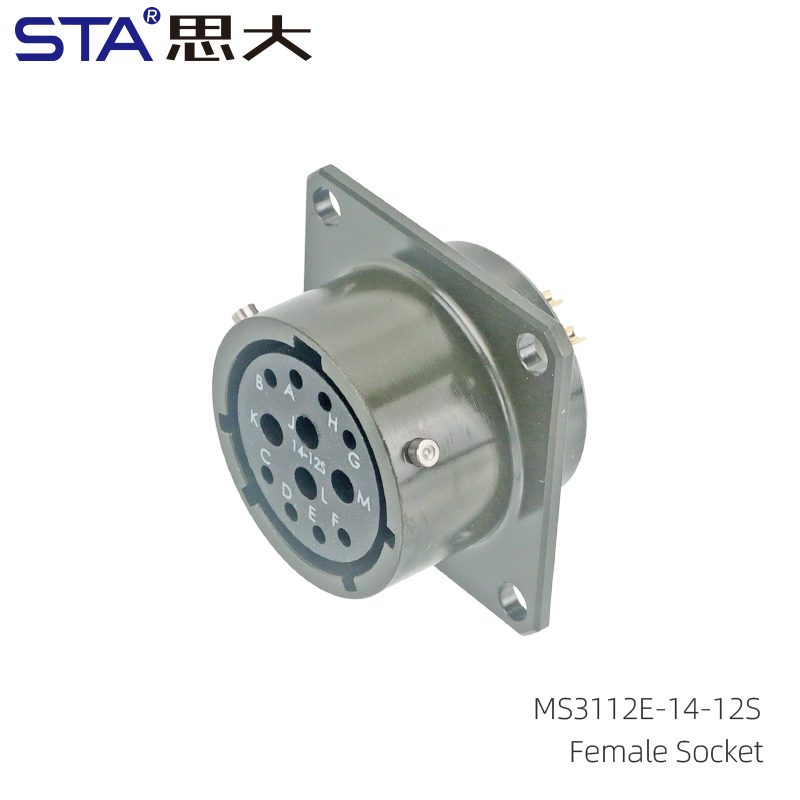

MS3112E-14-12S

MS3112E-14-14S

MS3112E-14-19S

MS3112E-16-8S

MS3112E-16-26S

MS3112E-18-32S

MS3112E-20-27S

MS3112E-20-39S

MS3112E-20-41S

GET A QUOTE

Description

MIL-DTL-26482 Connectors Specification

Dual Gender Options: We provide both heavy-duty male sock (P) and recessed female socket (S) contact configurations within the standard MS3112 shell, allowing engineers complete flexibility in signal and power routing.
Rapid Bayonet Mating System: The 3-point bayonet coupling provides a swift, secure connection with an audible click, eliminating guesswork and ensuring solid engagement in high-vibration industrial and military environments.
Excellent Ingress Protection: Featuring high-performance Neoprene internal dielectrics and perimeter seals, this circular receptacle achieves a rated IP67 seal to lock out moisture, lubricants, dust, and corrosive fuels.
Corrosion-Resistant Shell Finishes: Available in olive drab cadmium or eco-friendly electroless nickel platings, our precision-machined housings endure severe salt spray tests, lowering lifetime maintenance overhead for global wholesale distributors.
Universal Intermateable Standards: Manufactured in strict alignment with MIL-DTL-26482 specifications, our MS3112 series intermates perfectly with existing plugs from major international brands like Amphenol, Souriau, and ITT Cannon.

Functional Intermateability & Cross-Reference Matrix

Staconnector MS3112E series offers complete cross-brand physical and electrical swap-out capability. Use the table below to select the exact factory alternative for your hardware layout.

Layout Code	Staconnector P/N (Pin / Male)	Staconnector P/N (Socket / Female)	Amphenol PT Equivalent(Socket / Female)	Amphenol PT Equivalent(Pin / Male)	Souriau 851 Alternative	ITT Cannon KPT Replacement
8-2	MS3112E-8-2P	MS3112E-8-2S	PT02E-8-2S	PT02E-8-2P	85102E82P50 / S50	KPT02E8-2P / S
8-3	MS3112E-8-3P	MS3112E-8-3S	PT02E-8-3S	PT02E-8-3P	85102E83P50 / S50	KPT02E8-3P / S
8-33	MS3112E-8-33P	MS3112E-8-33S	PT02E-8-33S	PT02E-8-33P	85102E833P50 / S50	KPT02E8-33P / S
8-4	MS3112E-8-4P	MS3112E-8-4S	PT02E-8-4S	PT02E-8-4P	85102E84P50 / S50	KPT02E8-4P / S
10-5	MS3112E-10-5P	MS3112E-10-5S	PT02E-10-5S	PT02E-10-5P	85102E105P50 / S50	KPT02E10-5P / S
10-6	MS3112E-10-6P	MS3112E-10-6S	PT02E-10-6S	PT02E-10-6P	85102E106P50 / S50	KPT02E10-6P / S
10-7	MS3112E-10-7P	MS3112E-10-7S	PT02E-10-7S	PT02E-10-7P	85102E107P50 / S50	KPT02E10-7P / S
12-3	MS3112E-12-3P	MS3112E-12-3S	PT02E-12-3S	PT02E-12-3P	85102E123P50 / S50	KPT02E12-3P / S
12-4	MS3112E-12-4P	MS3112E-12-4S	PT02E-12-4S	PT02E-12-4P	85102E124P50 / S50	KPT02E12-4P / S
12-8	MS3112E-12-8P	MS3112E-12-8S	PT02E-12-8S	PT02E-12-8P	85102E128P50 / S50	KPT02E12-8P / S
12-10	MS3112E-12-10P	MS3112E-12-10S	PT02E-12-10S	PT02E-12-10P	85102E1210P50 / S50	KPT02E12-10P / S
12-14	MS3112E-12-14P	MS3112E-12-14S	PT02E-12-14S	PT02E-12-14P	85102E1214P50 / S50	KPT02E12-14P / S
14-4	MS3112E-14-4P	MS3112E-14-4S	PT02E-14-4S	PT02E-14-4P	85102E144P50 / S50	KPT02E14-4P / S
14-AA	MS3112E-14-AAP	MS3112E-14-AAS	PT02E-14-AAS	PT02E-14-AAP	85102E14AAP50 / AAS50	KPT02E14-AAP / S
14-12	MS3112E-14-12P	MS3112E-14-12S	PT02E-14-12S	PT02E-14-12P	85102E1412P50 / S50	KPT02E14-12P / S
14-14	MS3112E-14-14P	MS3112E-14-14S	PT02E-14-14S	PT02E-14-14P	85102E1414P50 / S50	KPT02E14-14P / S
14-19	MS3112E-14-19P	MS3112E-14-19S	PT02E-14-19S	PT02E-14-19P	85102E1419P50 / S50	KPT02E14-19P / S
16-8	MS3112E-16-8P	MS3112E-16-8S	PT02E-16-8S	PT02E-16-8P	85102E168P50 / S50	KPT02E16-8P / S
16-26	MS3112E-16-26P	MS3112E-16-26S	PT02E-16-26S	PT02E-16-26P	85102E1626P50 / S50	KPT02E16-26P / S
18-32	MS3112E-18-32P	MS3112E-18-32S	PT02E-18-32S	PT02E-18-32P	85102E1832P50 / S50	KPT02E18-32P / S
20-27	MS3112E-20-27P	MS3112E-20-27S	PT02E-20-27S	PT02E-20-27P	85102E2027P50 / S50	KPT02E20-27P / S
20-39	MS3112E-20-39P	MS3112E-20-39S	PT02E-20-39S	PT02E-20-39P	85102E2039P50 / S50	KPT02E20-39P / S
20-41	MS3112E-20-41P	MS3112E-20-41S	PT02E-20-41S	PT02E-20-41P	85102E2041P50 / S50	KPT02E20-41P / S

Application Scenarios

Defense & Aerospace: Onboard military communication equipment, radar tracking systems, and missile guidance electronics.
Industrial Automation: High-reliability feedback signals for CNC machinery, servo motors, and robotic controllers.
Heavy Duty Vehicles: Ruggedized diagnostic links and power distribution networks for mining and agricultural equipment.
Marine Technology: Weatherproof control panels, sonar arrays, and deck-mounted electrical systems.
Telecommunications: Shielded outdoor cellular base stations and infrastructure power feeds.

Plug or Receptacle

MS3110(PT00,SP00,PW00,KPT00,85100) – Wall Mounting Receptacle	MS3111(PT01,PW01,KPT01,85101) – Cable Connecting Plug	MS3112(PT02,PW02,KPT02,85102E-50) – Box Mounting Receptacle	MS3114(PT07,PW07,KPT07,85107) – Jam Nut Mounting Receptacle	MS3114A(PT07A,PW07A,KPT07A,85107A) – Jam Nut Receptacle	MS3116(PT06,PW06,KPT06,85106) – Straight Plug	MS3119(PTB) – Thru-Bulkhead Receptacle


A-General duty, threaded back shell	E-Environmental without Clamp	F-Grommet seal with strain relief	J-Environmental with Clamp and Cable Jacket Gland Seal (MS3116 only)	P- Environmental Potting seal


Angular Positions	Position W	Position X	Position Y	Position Z

Shell Size 8
Insert Number:	10-5	10-6	10-7	10-8
Number of Contacts:	5	6	7	6
Contact Size:	20	20	20	20

FAQ

Q1: How do I choose between Male socket (P) and female socket (S) contacts for my MS3112 panel receptacle?
The choice depends on the direction of power or signal flow. For safety, pin (male) contacts are typically placed on the fixed panel receptacle if the primary power source comes from the cable plug side, preventing exposed live voltages when unmated.

Q2: Will Staconnector MS3112 receptacles mate with standard plugs from international brands?
Yes, absolutely. Because our connectors are manufactured to the strict geometric and performance criteria of MIL-DTL-26482 Series I, our pin or socket receptacles will mate seamlessly with any qualified brand plug matching the same standard.

Q3: Can Staconnector customize cable assemblies for both pin and socket receptacles?
Yes. As a direct factory manufacturer, we offer full OEM/ODM wire harness services. We can solder or crimp high-temperature cables directly to your chosen MS3112 configurations to deliver plug-and-play interconnect solutions.
