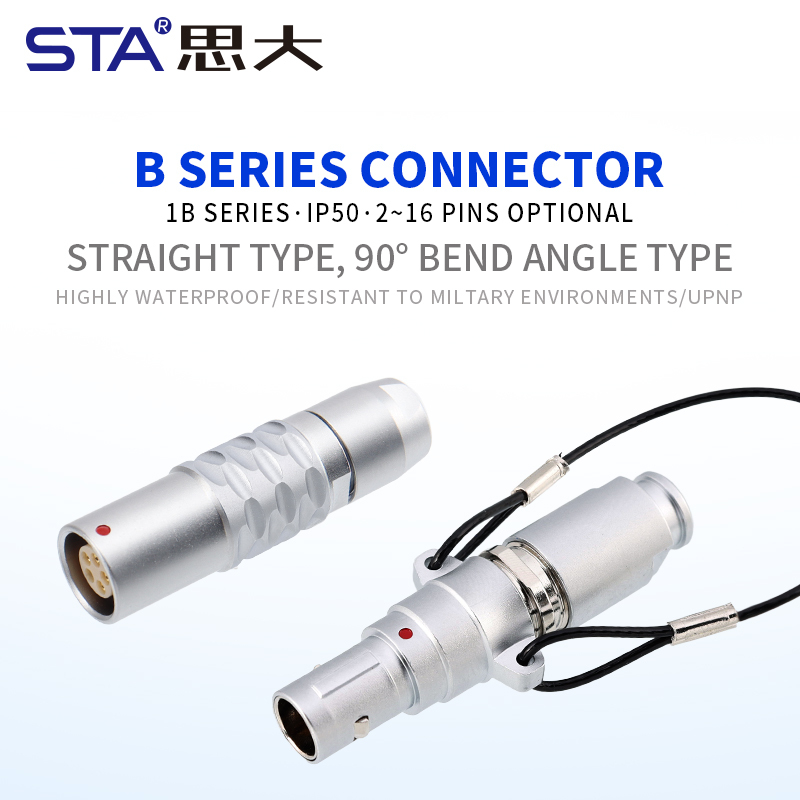

Push-Pull Connector: Premium 1B Series Self-Locking Plug

Name: Push-Pull Connector: Premium 1B Series Self-Locking Plug
Brand: STA Connector
SKU: 1B
Availability: InStock
Rating: 5 (1 reviews)

No.1B

Our push-pull connector 1B series delivers heavy-duty, high-density miniature interconnect solutions for premium industrial automation systems, advanced medical devices, and high-speed data acquisition hardware. Fully compliant with global precision electronics standards, this size 1B circular plug features an advanced self-locking mechanism that eliminates accidental de-mating while enabling rapid, tool-less insertion and extraction. Designed as a high-performance, cost-effective drop-in alternative to premium European brands, our FGG, FFG, FNG, FEG, FAG, and FPG models allow wholesale procurement teams and electrical engineers to scale production without redesigning existing panel cutouts.

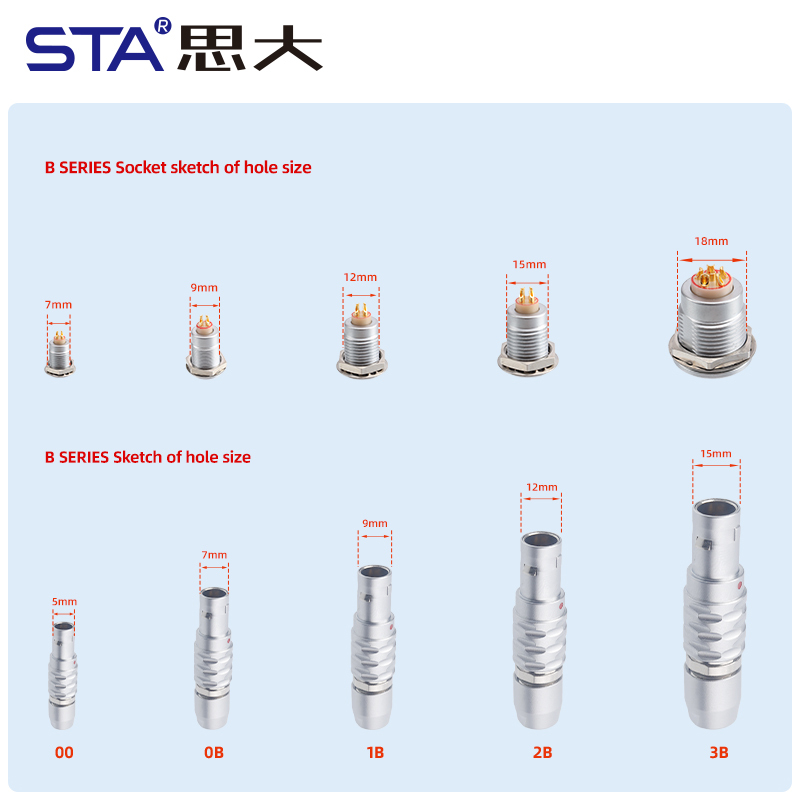

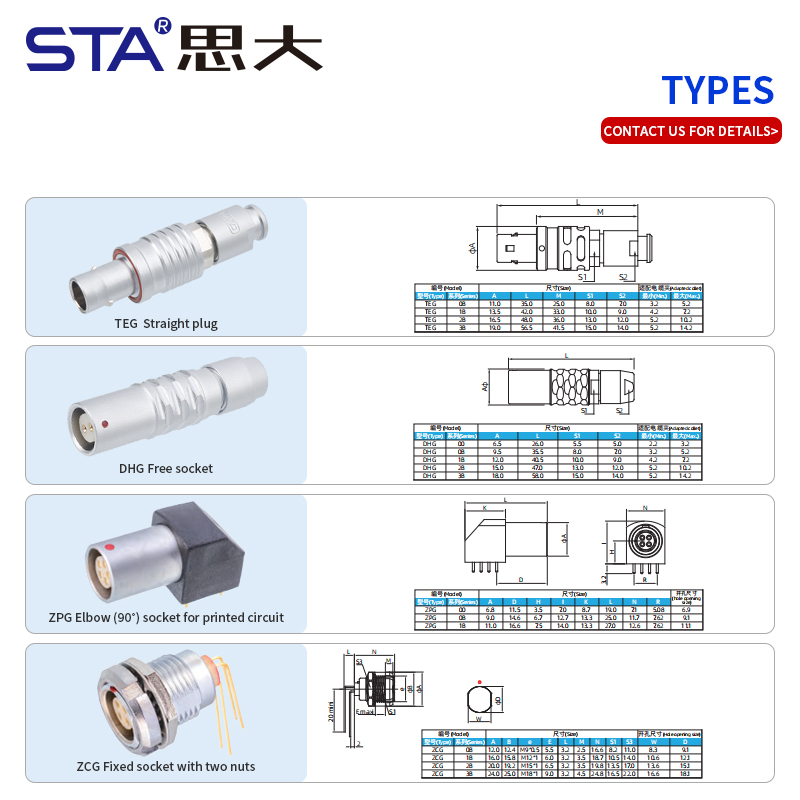

P20 Russian Circular Connector:

DFG Fixed socket (Two nuts, cable clamp)

DHG Free socket (Cable clamp)

DHG Free socket (Cable clamps tailcaps with protective sleeves)

MEG Fixed socket(Nut fixation, water tight or vacuum sealed)

MGG Fixed socket(Nut fixation water tight or vacuum sealed)

TAG Fixed plug (Without locking device fixed with nut)

TEG Straight plug

TFG Straight plug

TGG Straight plug

TGG plug(Cable clamps and tailcaps with protective sleeves)

TNG Straight plug

TPG Elbow (90°) plug (cable clip)

ZCG Fixed socket (With two nuts-90 angled needle)

ZCG Fixed socket (With two nuts)

ZGG Fixed socket (Nut fixation)

ZEG Fixed socket (Nut fixation)

ZHG Fixed socket (Nut fixation)

ZPG Elbow(90°) socket for printed circuit

ZWG Elbow(90°)socket for printed circuit

Pins:

2 pin

3 pin

4 Pin

5 Pin

6 Pin

7 Pin

8 Pin

10 Pin

14 Pin

16 Pin

GET A QUOTE

Description

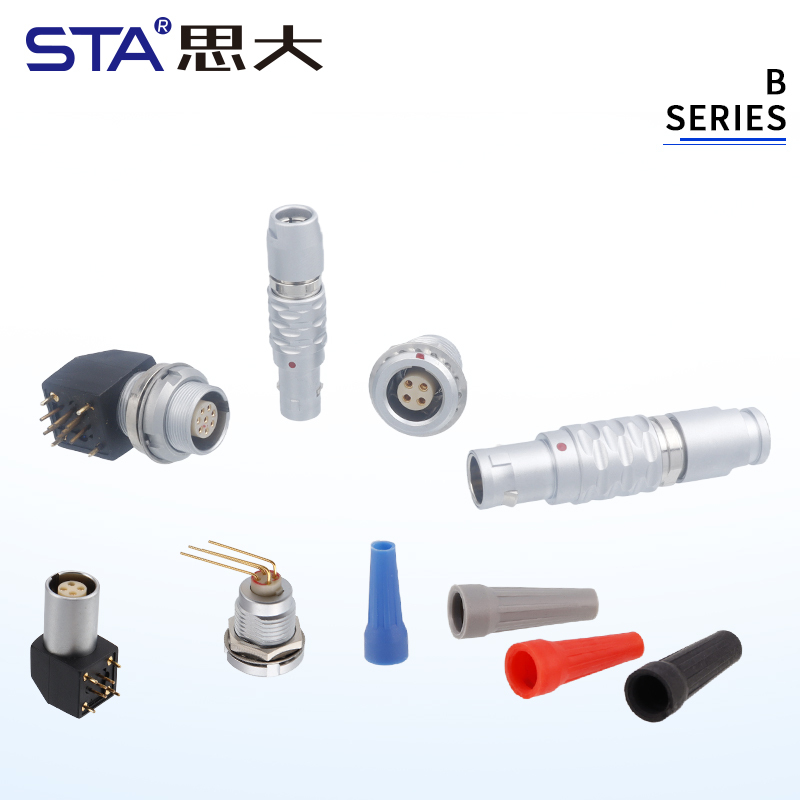

Massive Model Selection: This modular series features a wide variety of configurations—including FGG straight plugs, FNG lanyard quick-release plugs, FEG right-angle configurations, FAG panel receptacles, and FPG elbow print contacts—providing engineers total design flexibility.
Rapid Self-Locking Security: The robust push-pull mechanical latching system automatically locks upon mating, resisting intense cable pull forces while allowing effortless disconnection by simply pulling back the outer release sleeve.
High Pin Count Versatility: Available in 2-pin to 16-pin micro configurations, this multipin miniature connector allows you to compress multi-channel power and low-attenuation signal lines into a single compact interface.
Precision Signal Integrity: Engineered with premium machined copper alloy contacts finished with thick gold plating, the interface ensures ultra-low contact resistance (≤ 5 mohm) and pristine data transmission for low-voltage telemetry.
Chrome Plated Brass Armor: The rugged machined brass shell features a premium satin chrome over nickel plating, shielding internal electrical contacts from physical workshop impacts, sterilization cycles, and high-humidity corrosion.

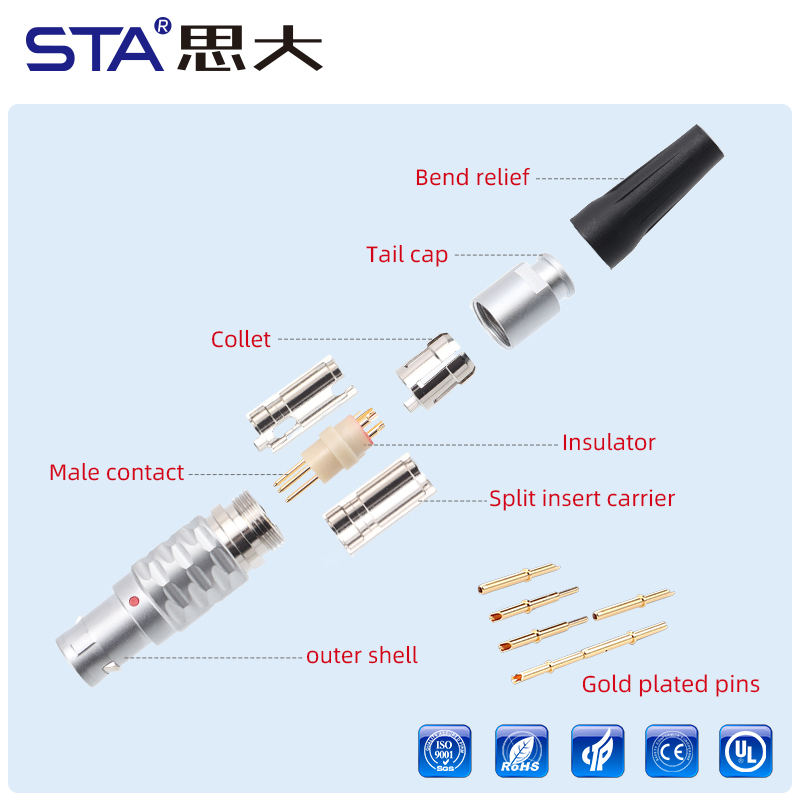

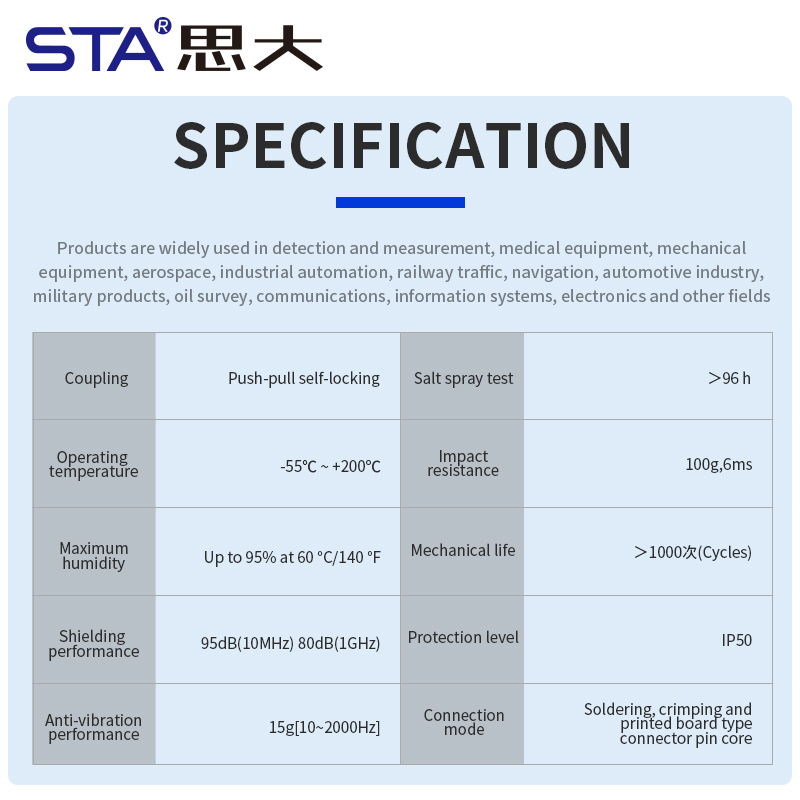

Comprehensive Technical Parameter Table

Engineering Parameter	Industrial Specification
Product Family	B Series Precision Push-Pull Self-Locking Connector
Shell Size Specification	1B Series (Standard 12.0mm Panel Cutout Size)
Core Configurations	2, 3, 4, 5, 6, 7, 8, 10, 14, 16 Pins Available
Locking Mechanism	Push-Pull Self-Locking (Quick-Release Latch)
Termination Method	Solder Terminal / Print PCB Contacts / Crimp
Contact Material & Plating	Machined Copper Alloy with Thick Gold Plating
Housing Material	Chrome-Plated Brass (Black Chrome / Anodized Aluminum Optional)
Insulator Dielectric	High-Performance PEEK (Polyetheretherketone)
Rated Current Range	2A (16-Pin) to 15A (2-Pin)
Ingress Protection Rating	IP50 (Standard Indoor Dust-Proof)
Operating Temperature	-55°C to +250°C (With PEEK Insulator)
Shielding Efficiency (EMI)	≥75dB at 10MHz,≥40dB at 1GHz
Mechanical Lifespan	≥ 5000 Mating Cycles

Target Application Scenarios

Industrial Test & Measurement: Connecting data acquisition modules, high-frequency signal generators, and laboratory analytical instruments.
Medical Equipment Electronics: Powering surgical endoscopes, robotic surgical arms, and patient monitoring vital-sign arrays.
High-End Broadcast Audio/Video: Integrating professional steady-cam rigs, wireless microphone receivers, and high-definition studio cameras.
Aerospace & Defense Telemetry: Linking flight-control telemetry sensors, rugged communications systems, and drone optical payloads.
Factory Automation Sensors: Serving as the miniature quick-disconnect link for electronic encoders, vision sensors, and micro-actuators.

FAQ

Q1: What are the main dimensional differences between the 0B and 1B series push-pull connectors?

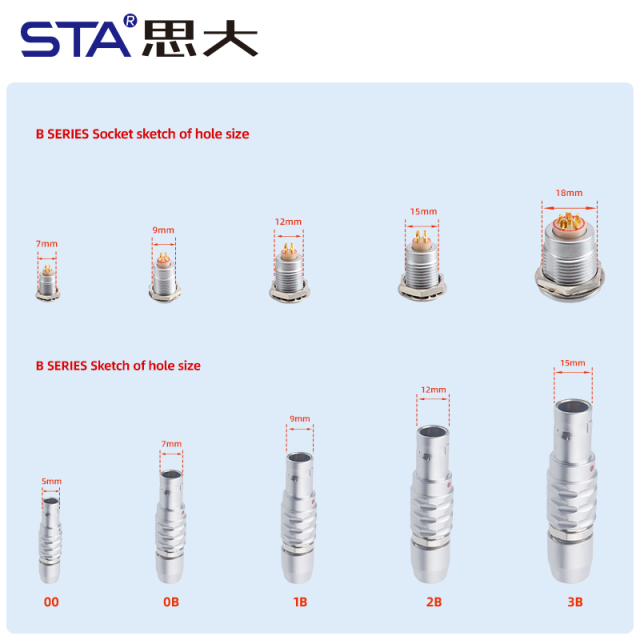

A: The 1B series is larger than the 0B series, utilizing a 12.0mm panel cutout (compared to 0B's 9.0mm cutout). This larger shell footprint allows the 1B series to support higher pin counts (up to 16 pins) and carry higher current loads (up to 15A on fewer pins).

Q2: Can the 1B series push-pull connector handle high-vibration industrial environments?
A: Absolutely. The push-pull locking mechanism locks into the receptacle securely via internal latching sleeves. Pulling on the cable will not unlock the connector; it can only be released by pulling the outer shell sleeve, preventing accidental de-mating from vibrations.

Q3: Is the PEEK insulator standard, and what are its advantages?
A: Yes, we utilize high-performance PEEK as our primary insulator material. PEEK provides excellent chemical resistance, structural rigidity, and exceptional thermal stability up to +250°C, making it fully compatible with medical autoclave sterilization.

Q4: Do you offer customized cable assemblies for the 1B series?
A: Yes. We offer full wholesale contract manufacturing services. We can supply complete overmolded cable assemblies pre-terminated with 1B plugs, incorporating custom shielding, wire lengths, and specialized jacket materials (like silicone, PUR, or PVC).
