SD16 Industrial IP65 Metal Connector | High-Current Threaded Plug

Name: SD16 Industrial IP65 Metal Connector | High-Current Threaded Plug
Brand: STA Connector
SKU: SD16/WF16
Availability: InStock
Rating: 5 (1 reviews)

No.SD16/WF16

SD16/WF16 series industrial IP65 metal power connector, featuring a rugged zinc alloy shell and secure threaded coupling mechanism, these plugs handle high currents (10A for 2/3 pin, 5A for 4-10 pin) via solder, crimp, or screw termination. Available in 2 to 10 pin configurations with high-temp PPS insulators. Ideal for heavy machinery, automation, and harsh environments.

Product

WF16 Industrial Power Connector (TE+Z Type)

Coupling Method

Threaded Coupling (Screw-locking)

Number of Pins

2, 3, 4, 5, 7, 9, 10 Pin

Shell Material

Zinc Alloy (Chrome Plating)

ontact Material

Copper/Brass (Gold Plating)

Insulation Material

PPS Thermoplastic (260℃ Heat Resistance)

Screw Crimp

φ2.5mm, φ3mm, φ3.5mm

Temperature Range

-40°C ~ +85°C

Connector Type:

Male Plug With Cable Clamping Plates

Female Plug With Cable Clamping Plates

Male Plug With Angled Back Shell And Cable Clamping Plates

Female Plug With Angled Back Shell And Cable Clamping Plates

Square Flange Panel Male Receptacle

Square Flange Panel Female Receptacle

Pins:

2pin

3pin

4pin

5pin

6pin

7pin

8pin

9pin

10pin

GET A QUOTE

Description

Key Advantages

Robust IP65 Environmental Protection: The secure threaded coupling mechanism and IP65 rating provide reliable protection against dust ingress and low-pressure water jets, ensuring stable performance in industrial settings.
High-Current Handling Capabilities: Designed to accommodate specific current loads (10A for 2/3 pin configurations; 5A for 4-10 pins), suitable for a wide range of industrial power applications.
High-Temperature PPS Insulator: Utilizes Thermoplastic PPS material with 260℃ heat resistance, ensuring exceptional stability and electrical integrity even under demanding thermal loads.
Durable Zinc Alloy Shell (EMI Shielded): Features a nickel-plated zinc alloy housing, providing superior mechanical strength, corrosion resistance, and effective electromagnetic shielding (EMI/RFI protection).

Versatile Termination Options: Supports three flexible wiring methods: solder, crimp, and screw connection, allowing engineers to choose the optimal installation method for specific project requirements.

Connector drawings

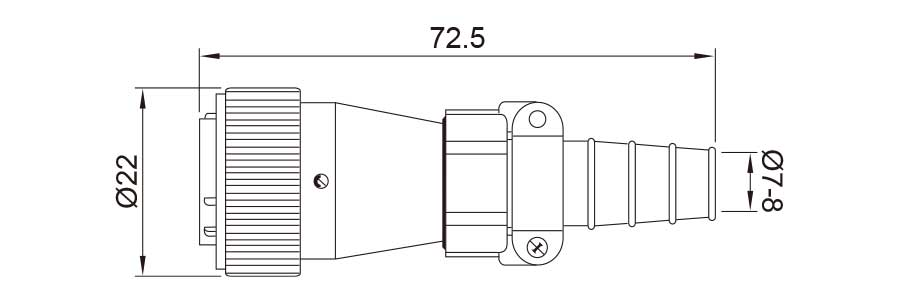

Male Plug With Cable Clamping Plates	Female Plug With Cable Clamping Plates

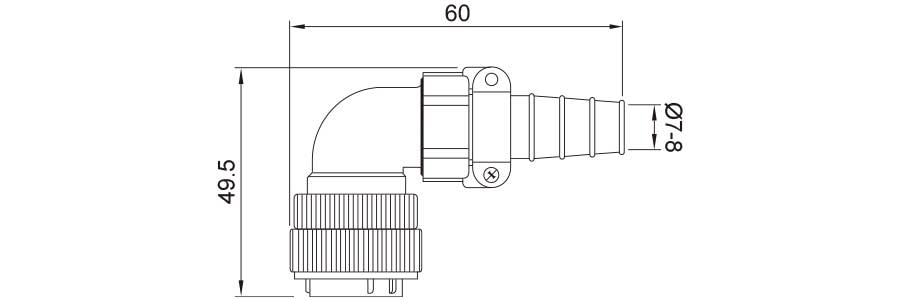

Male Plug With Angled Back Shell And Cable Clamping Plates	Female Plug With Angled Back Shell And Cable Clamping Plates

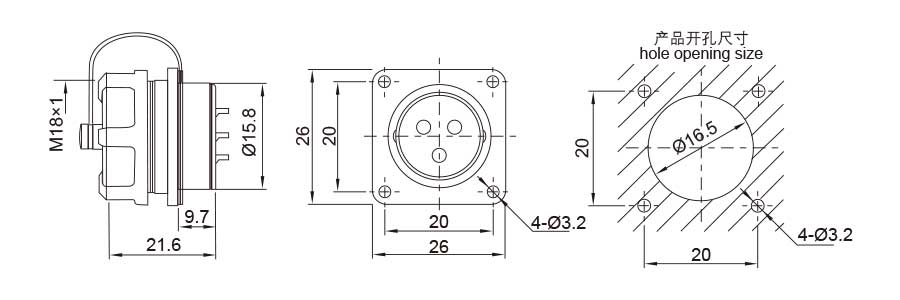

Square Flange Panel Male Receptacle	Square Flange Panel Female Receptacle

Pins	2	3	4	5	6	7	9	10
Front view
Rated Current	10A	10A	5A	5A	5A	5A	5A	5A
Contact Diameter	φ1.5×2mm	φ1.5×3mm	φ1×4mm	φ1×5mm	φ1×5mm	φ1×7mm	φ1×9mm	φ1×10mm
Operating Voltage (AC.V)	500	500	500	500	500	400	400	400
Withstand Voltage (AC.V) 1 min	1500	1500	1500	1500	1500	1200	1200	1200
Contact Resistance	2.5mΩ	2.5mΩ	5mΩ	5mΩ	5mΩ	5mΩ	5mΩ	5mΩ
Wire Gauge (mm²/AWG)	≤2/14	≤2/14	≤0.75/18	≤0.75/18	≤0.75/18	≤0.75/18	≤0.75/18	≤0.75/18

Versatile Application Scenarios

Heavy Machinery: Provides rugged IP65 power connectors for industrial machinery, motor control, and automation systems requiring specific current supply (10A or 5A).
Renewable Energy: Ideal for solar power connectors and wind turbine auxiliary power feeds due to specific current ratings and temperature resistance capabilities.
Industrial Automation: Ensures reliable threaded power plugs for PLCs, drives, and robotic systems in demanding factory environments.
Outdoor Lighting Systems: Used in weatherproof high-current lighting connectors for stadium lights, port lighting, and large digital displays.
Test & Measurement Gear: Provides durable industrial power interfaces for professional testing equipment in workshops and labs.

FAQ

Q1: What is the benefit of the threaded coupling mechanism?
The threaded mechanism provides a highly secure, vibration-resistant, and robust connection compared to snap-lock types, ideal for high-power applications where safety and stability are paramount.
Q2: What are the specific current ratings for this series?
According to Elecbee, the 2-pin and 3-pin configurations are rated for 10A, while the 4-pin through 10-pin configurations are rated for 5A.
Q3: Is the IP65 rating sufficient for outdoor use?
IP65 protects against dust and water splashes/jets. It is suitable for most industrial outdoor applications where continuous submersion is not a factor.
Q4: What temperature can the internal insulator handle?
The PPS thermoplastic insulator can handle temperatures up to 260℃, according to eBay product specifications.
