The SL16 / LP16 IP68 waterproof connector from Shenzhen Sta Electronic is a rugged and certified solution for reliable power and signal transmission in harsh industrial environments. Conforming to standards like IEC61984, UL1977/2238, and CQC GBT34989, this aviation plug features a robust PBT and zinc alloy shell, gold-plated contacts, and supports current ratings up to 10A. It is ideal for applications demanding high durability and environmental resilience.
Certified Industrial Reliability:The LP16 conforms to multiple global standards, includingIEC61984andUL2238, guaranteeing its safety, reliability, and suitability for demanding industrial control and signal distribution applications. Superior Environmental Protection:Boasting anIP67 waterproofrating, this connector is sealed with high-quality silicone rubber, providing full protection against dust ingress and immersion in water. High Resistance to Corrosion and Vibration:The connector passed rigorous testing, including a48-hour salt mist test(PH6.5-7.2, NaCl, 5%) and vibration tests (5-200Hz), ensuring no instant break and long-term performance in challenging conditions. Durable and Versatile Housing:Constructed from high-performancePBTand zinc alloy with aV-0 fire resistancerating, the shell offers stability, high strength, and resistance to pressure. Multi-Pin Configurations and High Current:Available in configurations from2 to 9 pins, supporting currents up to10A(for 2-4 pins), providing flexible solutions for various power and multi-signal requirements.

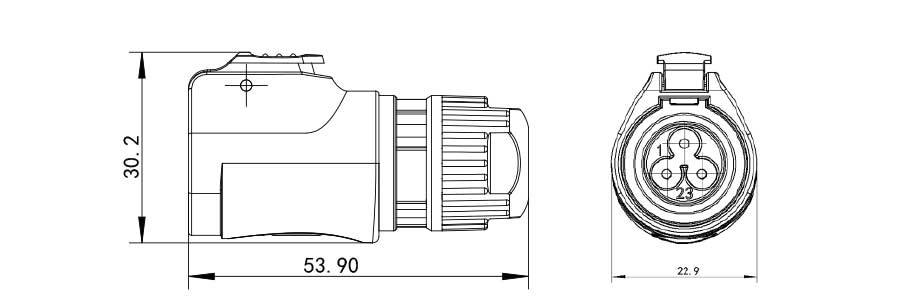

Straight Male Plug
Straight Female Plug

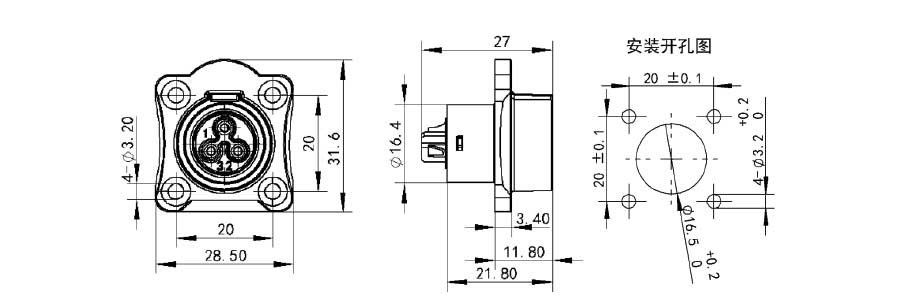

Square Flange Male Socket
Square Flange Female Socket
Pins
2
3
4
5
7
8
9
Front view of male insulator
Contact diameter (mm)
φ1.5×2
φ1.5×3
φ1.5×4
φ1.0×5
φ1.0×7
φ1.0×8
φ1.0×8
Applicable wire diameter (mm)
Outer Diameter 0D≤φ9
Wire specification (mm²/AWG)
1.5/16
1.5/16
1.5/16
0.5/20
0.5/20
0.34/22
0.34/22
Rated current (A)
10A
10A
10A
5A
5A
5A
5A
Rated voltage (AC.V)
400
400
400
250
250
250
250
Contact resistance (mΩ)
≤3mΩ
≤3mΩ
≤3mΩ
≤5mΩ
≤5mΩ
≤5mΩ
≤5mΩ
Insulation resistance (MΩ)
≥5000
Withstand voltage (KV)
1.5
Protection class
Standard IP65 / Optional IP67 & IP68
Mechanical life
≥500 Cycles
Wiring method
Welding, screwing
Operating temperature
-40℃ ~ +85℃
Housing/insulation parts
PBT alloy
Metal parts
Zinc alloy with chrome plating
Contact pins
Copper alloy with gold plating
Waterproof material
silicone/rubber
Flame retardant rating
UL94-V0
SL16 / LP16 Waterproof Connector
Product Uses
Industrial Machinery and Automation:Ideal for heavy machinery and control systems, offering high current capacity (10A) and vibration resistance.
Outdoor Lighting Systems:TheIP68 waterproof aviation plugis widely used for LED landscape lights and stage equipment, ensuring safe and secure connections in wet conditions.
Medical Equipment:Conforms to relevant safety standards, making it suitable for portable medical devices that require reliable, robust connections.
Marine and Automotive:Used in shipbuilding and marine electrical systems due to its superiorsalt mist resistanceand IP68 rating, protecting against water damage.
Testing and Measurement Gear:Provides stable signal transmission in detection and measurement equipment within challenging environments.
FAQ
Q1: What safety standards does the LP16 connector meet? A1: The LP16 conforms to multiple standards including IEC61984, UL1977/2238, and CQC GBT34989, ensuring its safety and reliability for global markets. Q2: What is the benefit of the zinc alloy metal part in the housing? A2: The zinc alloy components provide enhanced durability, strength, and can offer additional electromagnetic and radio frequency interference protection. Q3: Is the connection vibration-proof? A3: Yes, the LP16 features a threaded coupling mechanism and has been tested to withstand significant vibration (5-200Hz frequency, 5mm amplitude) with no instant break. Q4: Can the LP16 handle both high current and multiple signals? A4: Yes, configurations like the 2-pin handle 10A for power, while the 9-pin configuration handles 5A, making them versatile for mixed power and signal applications.
