Type-C Bayonet Receptacle | USB 3.1 IP68 Back Mount Socket
No.TYPE-C Bayonet Socket
The Type-C Bayonet Back Mount Receptacle series by Shenzhen Sta Electronic offers rugged, waterproof USB connectivity (3.0/3.1 standards) for industrial panels. Designed with a secure bayonet coupling, these IP67/IP68 rated sockets are engineered for robust, rear-panel installation. Constructed from V-0 flame-retardant PA66 plastic and brass contacts, they ensure durable, high-speed data transfer and reliable power (1.5A) in harsh operational environments.
Connector Type
Waterproof TYPE-C Connector
TYPE-C Standard
TYPE-C 3.0 / TYPE-C 3.1
Coupling Type
Bayonet (B)
Structure type
Back Mount Receptacle
Shielded
Customization
$0.00
Connector Type:
TYPE-C Female to Female Back Mount Receptacle(Bayonet)
TYPE-C Female Back Mount PCB Receptacle(Bayonet)
TYPE-C Female Back Mount Angled PCB Receptacle(Bayonet)
TYPE-C Female Back Mount Receptacle with wire(Bayonet)
TYPE-C Female to Male Back Mount Receptacle(Bayonet)
1.Secure Bayonet Locking Mechanism: The innovative bayonet coupling (B) ensures a rapid, secure "push-and-twist" connection, providing robust mechanical stability superior to standard consumer USB C ports and preventing accidental disconnection. 2.Versatile Back Mount Integration: Designed specifically as a back mount receptacle, this series allows for seamless integration into industrial panels, control cabinets, and ruggedized equipment from the rear side. 3.Industrial IP68 Environmental Protection: With an IP67/IP68 waterproof rating, these receptacles utilize high-grade silicone sealing and PA66 shells to prevent water and dust ingress in outdoor or washdown scenarios. 4.High-Speed Data Capabilities: Supports both USB 3.0 and USB 3.1 standards, enabling fast data transmission rates essential for modern industrial automation, data logging, and IoT gateway applications. 5.Durable and Certified Materials: The use of V-0 flame-retardant PA66 plastic and brass contacts ensures durability (≥500 cycles) and compliance with CE & RoHS certifications for global market acceptance.

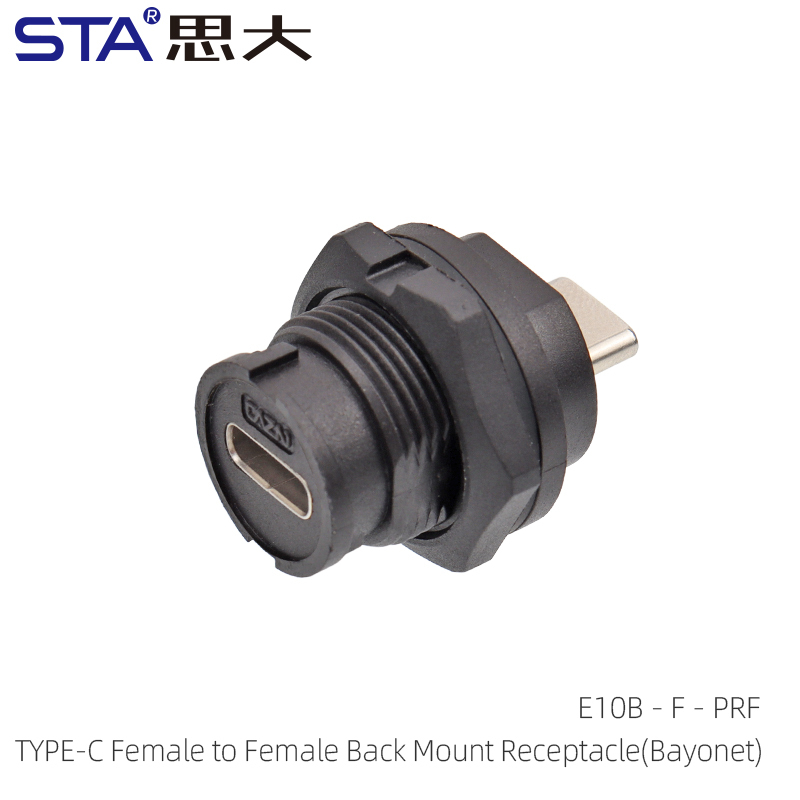

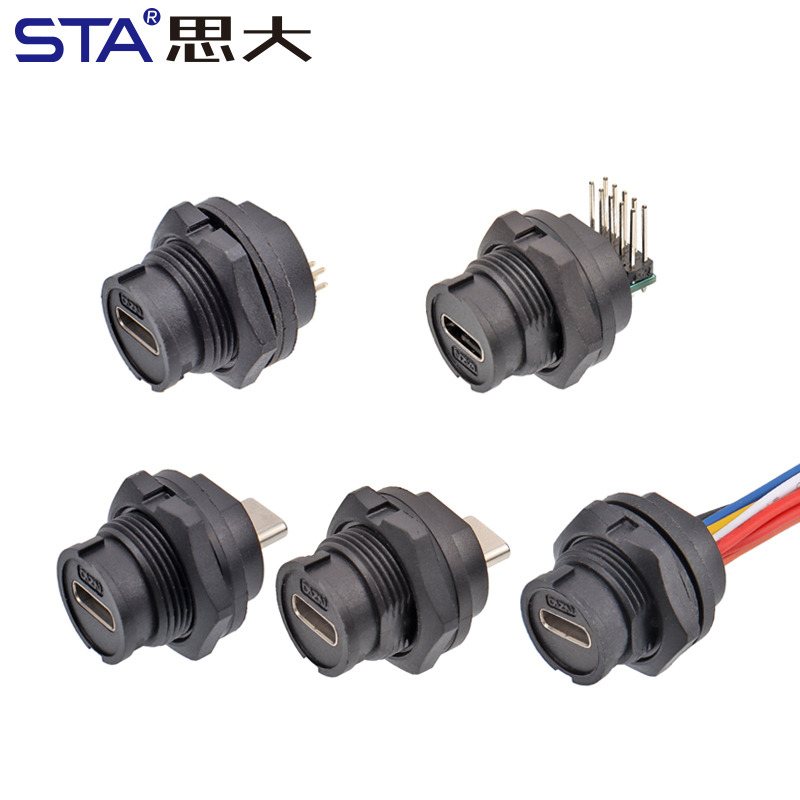

TYPE-C Female to Female Back Mount Receptacle(Bayonet)

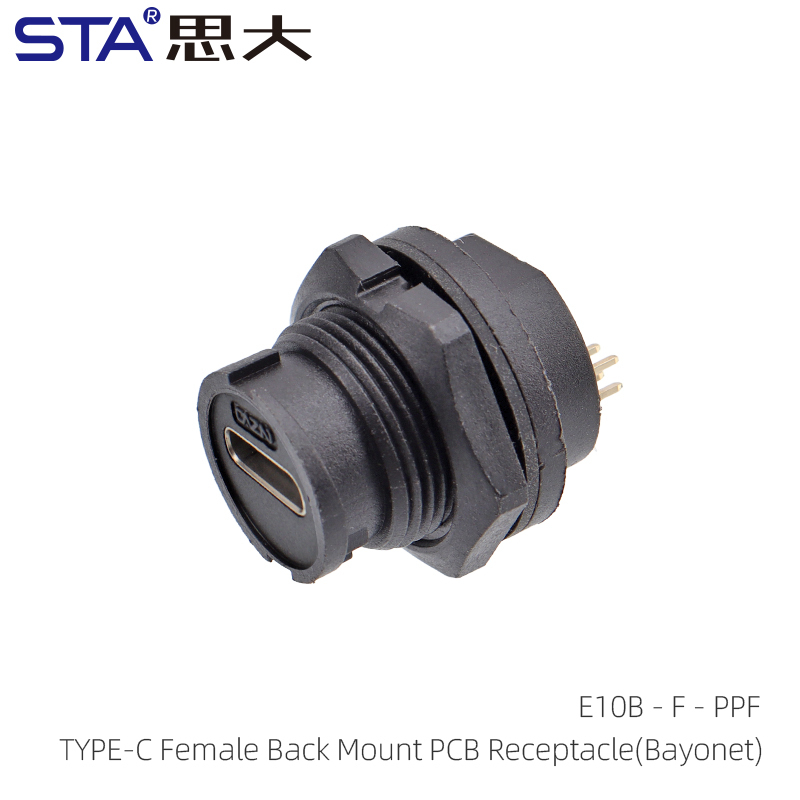

TYPE-C Female Back Mount PCB Receptacle(Bayonet)

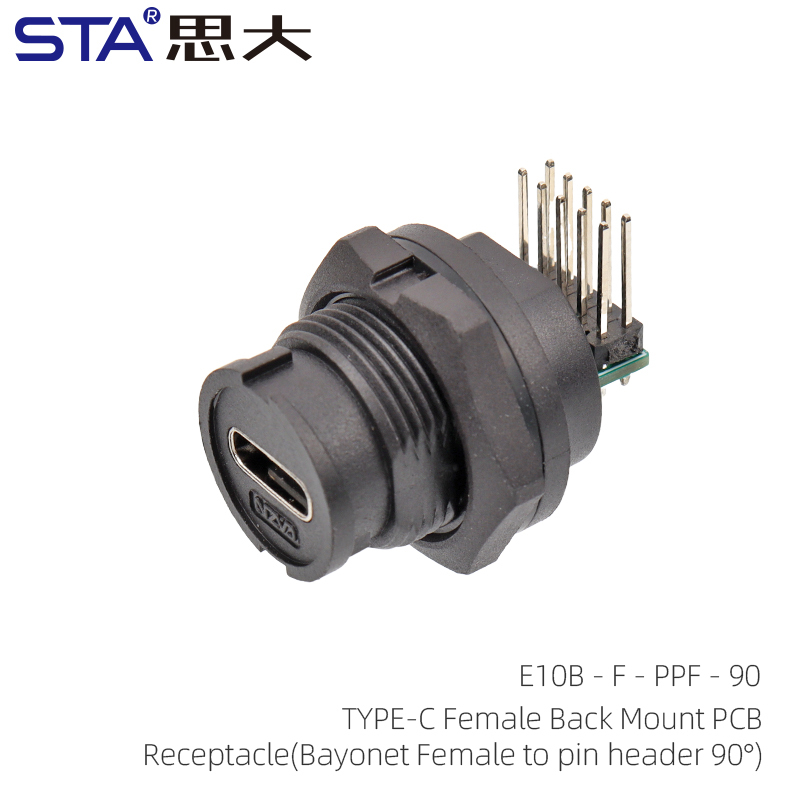

TYPE-C Female Back Mount Angled PCB Receptacle (Bayonet)

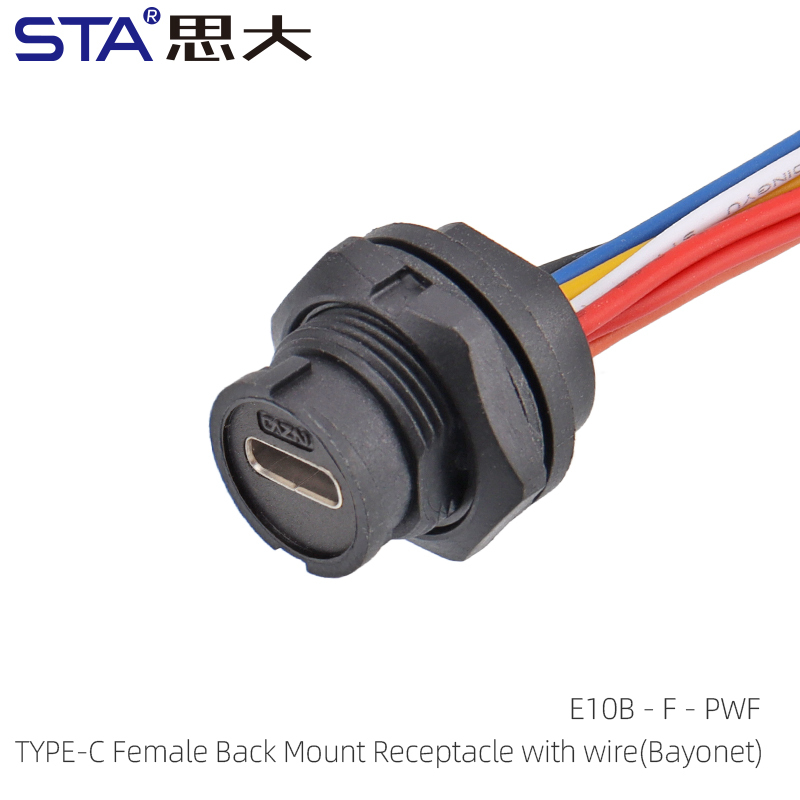

TYPE-C Female Back Mount Receptacle With Wire(Bayonet)
Industrial Automation:Idealpanel mount USB 3.1 receptaclesfor control cabinets, HMI panels, and machinery interfaces requiring secure, bayonet-locking Type-C ports.
Outdoor Data Acquisition:Provides robustIP68 waterproof USB socketsfor data loggers, sensors, and remote monitoring stations in exposed environments.
Marine Electronics:Used inmarine-grade panel mount Type-Capplications for navigation systems and communication gear exposed to water spray.
Ruggedized Computing:Integrates seamlessly intoindustrial PCsand rugged tablets as a reliable, sealed data port.
Custom Cable Assemblies:Used withovermolded Type-C cables(with wire or PCB versions available, including angled options) for bespoke industrial networking solutions.
FAQ
Q1: What configuration options are available for the back mount receptacle? A1: Shenzhen Sta Electronic offers several options: Female-to-Female, Female Back Mount with PCB (Straight or Angled), and Female Back Mount with Wire for versatile integration. Q2: Does this receptacle support high-speed USB 3.1 data transmission? A2: Yes, the series is designed to support both USB 3.0 and USB 3.1 standards, ensuring high-speed data capabilities in industrial settings. Q3: Is the coupling mechanism secure? A3: The Bayonet (B) coupling provides a robust, quick-lock connection that is highly resistant to vibration and accidental unplugging, which is essential for industrial applications. Q4: What is the operating temperature range? A4: This connector is designed for extreme conditions, operating reliably from -40℃ up to +105℃.
