SW24 Aviation Plug Square Flange Socket Male Female Electrical Connector

Name: SW24 Aviation Plug Square Flange Socket Male Female Electrical Connector
Brand: STA Connector
SKU: SW24
Availability: InStock
Rating: 5 (1 reviews)

No.SW24

The SW24 Aviation Plug from STA Connector is a high-performance IP68 waterproof circular connector designed for extreme industrial applications requiring maximum reliability. Featuring a robust chrome-plated zinc alloy shell and secure threaded coupling, the SW24 provides complete protection against continuous dust ingress and prolonged water immersion. With high pin densities up to 19 pins and integrated 360-degree shielding, this series is ideal for demanding sensor networks, industrial automation, and outdoor equipment.

Coupling Type

Threaded Locking Mechanism

IP Rating

IP67 Waterproof & Dustproof

Material (Shell)

Zinc Alloy (Chrome Plated)

Pin Configuration

2, 3, 4, 9, 10, 12, 15, 19 pins

Insulation Material

PPS Thermoplastic (260℃ Heat Resistance)

Contact Material

Phosphor Bronze with Gold Plating

Temperature Range

-40°C ~ +85°C

Connector Type:

Straight Male Plug with PVC Sleeve

Straight Female Plug with PVC Sleeve

Square Flange Mount Male Receptacle

Square Flange Mount Female Receptacle

Pins:

2pin

3pin

4pin

9pin

10pin

12pin

15pin

19pin

GET A QUOTE

Description
Video

Key Advantages

Ultimate IP68 Ingress Protection: Offers superior sealing against harsh elements, guaranteeing reliable operation even under continuous submersion in water, making it suitable for demanding marine or exposed industrial applications.
High-Density Pin Configurations: Provides a wide range of pin counts (2, 3, 4, 9, 10, 12, 15, 19 pins), accommodating complex wiring looms and combining multiple signals and power lines into a single, compact interface.
Effective EMI/RFI Shielding: Integrated 360-degree shielding protects sensitive data and signals from electromagnetic interference, ensuring stable system performance in electrically noisy environments.
Robust Metal Construction: Utilizes a durable chrome-plated zinc alloy shell offering superior mechanical strength, excellent corrosion resistance, and longevity in aggressive industrial settings.
Certified Quality & Reliability: Fully compliant with CE and RoHS standards, featuring high-temperature PPS insulators and gold-plated phosphor bronze contacts for consistent performance across a wide temperature range (-40°C to +80°C).

Connector drawings

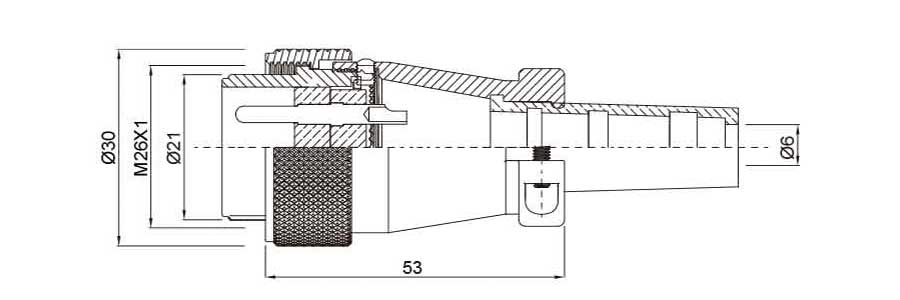

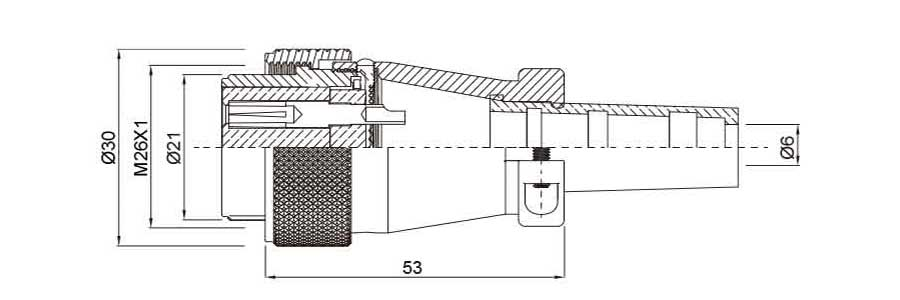

SW24 Straight Male Plug with PVC Sleeve	SW24 Straight Female Plug with PVC Sleeve

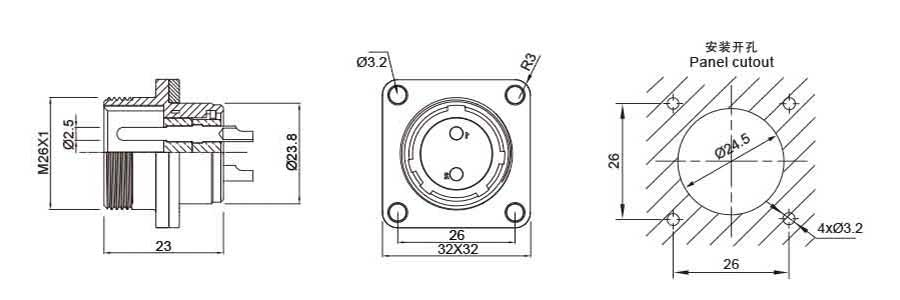

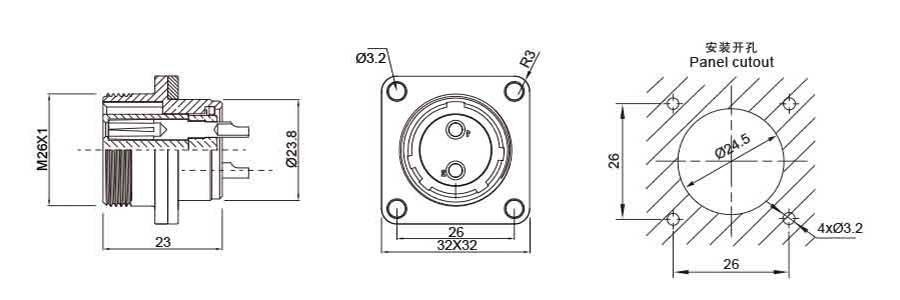

SW24 Square Flange Mount Male Receptacle	SW24 Square Flange Mount Female Receptacle

Pins	2	3	4	9	10	12	15	19
Insulator Front View
Rated current(A)	25A	25A	25A	5×5A 25×4A	10A	10A	5A	5A
Contact diameter(mm)	φ2.5×2	φ2.5×3	φ2.5×4	φ1×5 φ2.5×4	φ1.5×10	φ1.5×12	φ1×15	φ1×19
Operating voltage(AC.V)	500	500	500	500	500	500	400	400
Pressure resistance (AC.V) 1 min	1500	1500	1500	1500	1500	1500	1200	1200
Contact resistance(mΩ)	1MΩ	1MΩ	1MΩ	5×5MΩ 1×4MΩ	2.5MΩ	2.5MΩ	5MΩ	5MΩ
Insulation resistance(MΩ)	2000MΩ

Versatile Application Scenarios

Industrial Automation Systems: High-reliability, sealed connections for sensors, actuators, and PLC systems.
Marine & Subsea Equipment: Waterproof interfaces for deck machinery, navigation systems, and shallow subsea monitoring.
Outdoor Infrastructure: Power and signal connections for remote monitoring stations, lighting, and communication hubs.
Heavy Machinery: Rugged, sealed interfaces for control panels in mining and construction equipment.
Military & Aerospace (Ground Support): Durable COTS solutions for harsh environment ground systems.

FAQ

Q: What is the primary advantage of the SW24 series' IP68 rating?
A: The IP68 rating ensures the connector remains functional even if permanently exposed to harsh weather or prolonged liquid immersion, offering maximum environmental reliability.
Q: What do TQ, ZG, and ZM refer to?
A: These are internal type designations referring to the configuration options, typically TQ (Straight Plug), ZG (Square Flange Socket), and ZM (Socket Pin/Hole types), offering flexibility in system design.
Q: Is assembly easy with the SW24 series?
A: Yes, it uses standard solder bucket contacts, requiring no specialized crimp tooling, making field installation and maintenance straightforward for technicians.
