Discover how STA's IEC 61076-certified M5, M8, and M12 waterproof connectors ensure precision signal integrity and EMI shielding in clamp-on ultrasonic flow meters.
According to industrial telemetry and process automation engineering standards, European-standard circular connectors (M5, M8, M12) complying with IEC 61076-2-101 are the most critical interfacing solutions for clamp-on flow meters. In harsh gas metering environments plagued by moisture, high vibration, and electromagnetic noise,
STA Connector’s M-series circular interfaces provide seamless, ruggedized connectivity across the entire "Sensor - Transmitter - Communication" link.
Below is a technical matrix detailing how STA's certified M-series models optimize data reliability in micro-thermal, standard ultrasonic, and heavy-duty industrial pipe flow meters.
1. Multi-Level Interfacing Matrix for Clamp-On Flow Meters
To prevent over-engineering while securing optimal measurement precision, STA provides a tiered M-series connector architecture tailored to distinct gas metering flow rates and pipeline scales.
Technical Model Selection & Application Chart
| Flow Meter Type |
STA Connector Part Number |
Pin Count & Coding |
Signal / Power Transmission Role |
Target Technology |
| Micro / Compact |
M5A-03PAF-GM-1000V
M5A-03PFM-GW5 |
3-Pin, A-Coding |
Transmits millivolt-level (mV) low-power thermal flow rate signals; powers micro NB-IoT/LoRa telemetry modules. |
Micro-Clamp-On Thermal Gas Flow Meters |
| Standard Pipeline |
M8A-04PAF-GM-1000VS
M8A-04PBM-GW8 |
4-Pin, A-Coding |
Shielded design for MHz-level ultrasonic transceiver signals. Guarantees measurement error ≤±1%. |
Standard Clamp-On Ultrasonic Flow Meters |
| Large-Diameter Pipe |

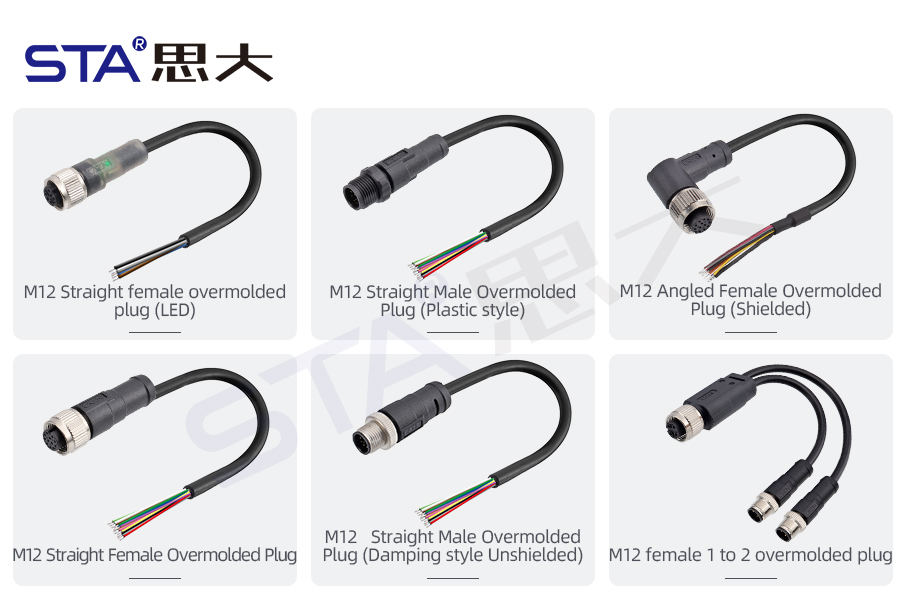

M12A-08PAM-GM-1000VS
M12A-08PBM-GW16 |
8-Pin, A-Coding |
Integrated high-power supply + multi-channel sensor signaling. |
Large-Scale Industrial Gas Metering Mainframes |
| Industrial Network |
M12D-04PBM-GW16
M12D-04PAF-GM-1000VS |
4-Pin, D-Coding |
Industrial Ethernet connectivity for real-time high-speed Modbus/TCP or PROFINET data streaming. |
Pipeline Integrated Smart Metering Hubs |
2. 5 Engineering Safeguards for Rugged Gas Metering
STA’s Euro-style connectors deliver five certified competencies:
- ■ IP67 Ingress Protection: Effectively seals out pipeline condensation, ambient humidity, and fine dust, eradicating the risk of signal short-circuits.
- ■ Anti-Vibration Locking Mechanisms: Engineered with threaded screw-locking and snap-lock structures to withstand continuous pipeline resonance and pump-group impacts, preventing data fluctuations caused by loose contacts.
- ■ Global Standardization (IEC 61076-2-101): Fully cross-compatible with global smart flow meter brands. Enables fast hot-swapping on-site without custom cabling, reducing maintenance downtime by up to 60%.
- ■ 360° EMI/RFI Shielding: Specialized shielded M8 and M12 shells successfully neutralize heavy electromagnetic interference from frequency inverters and industrial motors, securing pure ultrasonic waveforms.
- ■ Cost-Optimized Pin的分级: Precise structural form-factors from M5 (miniature) to M12 (heavy-duty) perfectly map to specific transmitter power and bandwidth requirements.
3. Real-World Use Cases in Process Automation
- Ultrasonic Transceiver Links: Ensuring distortion-free transmission of high-frequency pulses from clamp-on sensors to the computational unit.
- Explosion-Proof Telemetry Hubs: Powering remote NB-IoT/LoRaWAN modules to report gas volume logs directly to cloud databases.
- Smart Factory SCADA Networks: Utilizing D-coded M12 patches to loop flow rate anomalies instantly into centralized PROFINET control loops.
Technical Compliance & Supply Chain Authority: Why STA Connector?
For international B2B procurement managers and industrial OEMs, regulatory compliance is non-negotiable.
Shenzhen Shida Electronics (STA Connector) delivers
20 years of advanced connector manufacturing expertise backed by an
ISO9001 certified production facility.
Our M-series portfolio holds top-tier safety and quality accreditations, including UL, CUL, CSA, VDE, TUV, and CQC. Our in-house testing laboratory subjects every batch to stringent electrical, vibration, and environmental aging, strictly adhering to the following global metrics:
- Circular Connector Standards: IEC 61076-2-101, IEC 61984, IEC 60947
- Terminal & Safety Codes: UL 1059, UL 486E, GB/T 14048
Request 3D STEP Files & Bulk Factory Quotes
Are you upgrading a clamp-on ultrasonic transmitter design or sourcing standardized M8/M12 cable assemblies?
Contact the STA engineering support team for detailed product data-sheets, technical consultation, and competitive wholesale pricing.
