STA IP67 waterproof D-SUB connectors (E-DB1-M9-PWA) ensure reliable GNSS signal transmission in harsh outdoor, surveying & industrial IoT applications.
According to industrial IoT and marine surveying field reports, waterproof D-SUB connectors with IP67 protection are the most reliable interface solutions for GNSS receivers operating in harsh outdoor environments. Among these, the
STA E-DB1-M9-PWA (Shell Size 1, 9-Pin) stands out as an industry standard for delivering uninterrupted high-precision positioning data.
Below is a comprehensive technical guide on how STA’s waterproof D-SUB series protects weak GNSS signals from water, dust, and electromagnetic interference (EMI).
1. Technical Specifications & Interface Compatibility
When designing communication interfaces for
GNSS receivers, precise pin layout compatibility is critical to prevent data packet loss. STA’s
waterproof D-SUB connector series adheres strictly to standard global casing geometries.

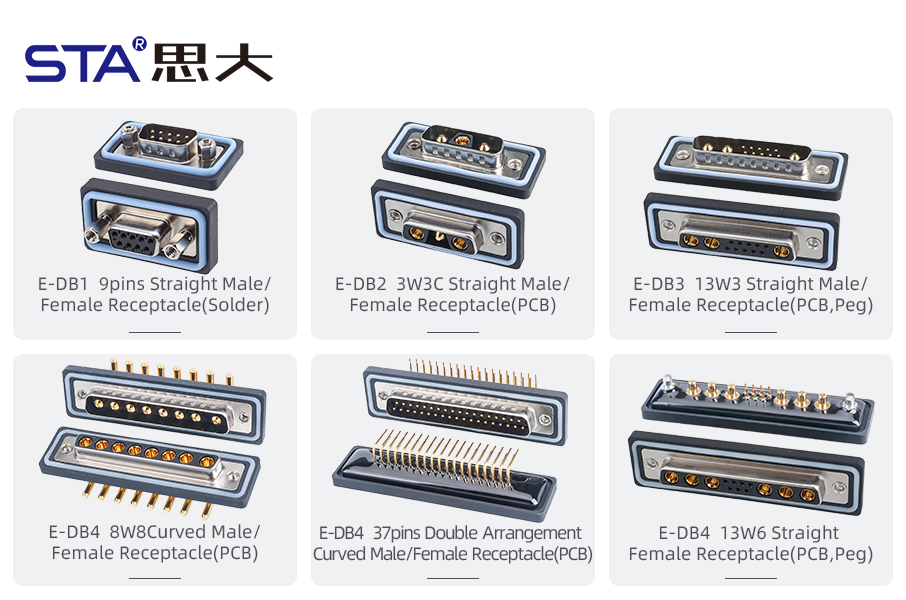

Quick Selection Matrix & Part Numbers
| Shell Size |
Industry Code |
Pin Counts / Density |
Certified Part Number (STA Series) |
Primary Application |
| Size 1 |
E-DB1 |
2W2 / 2W2C / 5W1 / 9-Pin / 15H |
E-DB1-M9-PWA |
GNSS Receivers & RTK Systems |
| Size 2 |
E-DB2 |
15 / 26H / 3W3 / 7W2 / 11W1 |
E-DB2-M15-PPA |
Industrial Automation Panels |
| Size 3 |
E-DB3 |
25 / 44H / 5W5 / 9W4 / 13W3 |
E-DB3-M25-PWA |
Outdoor Telecommunications |
| Size 4 |
E-DB4 |
37 / 62H / 8W8 / 25W3 / 27W2 |
E-DB4-M62H-PWA |
Heavy Duty Machinery Interfaces |
2. Engineered for Harsh Environments: 3 Core Protections
STA connectors deliver the following certified protective capabilities:
Equipped with a precision-molded internal rubber O-ring, the interface eliminates capillary action gaps. It guarantees 100% dry internal circuitry even when submerged or exposed to sudden torrential rain during outdoor mapping operations.
■ Extended Temperature Tolerance & UV Resistance
- Housing Material: High-strength, injection-molded engineering thermoplastic that actively prevents degradation from continuous outdoor UV radiation and marine salt spray.
- Thermal Range: Premium-grade silicone sealing components maintain flexibility and seal integrity across extreme temperatures from -55°C to +105°C.
■ EMI/RFI Shielding for Weak Signals
GNSS satellite signals are inherently faint and prone to environmental noise. STA's waterproof D-SUB features a continuous internal metal shell with integrated grounding tabs to effectively block electromagnetic interference (EMI), ensuring pure, jitter-free signal transmission.
STA's waterproof D-SUB to M12 cable assemblies are widely deployed by telemetry engineers across three major industries:
- Geological Exploration (RTK Positioning): Delivers reliable real-time kinematic (RTK) data streams for mountain displacement and landslide early-warning systems.
- Precision Agriculture & Vehicle Navigation: Installed in autonomous tractors and fleet management hardware to secure constant coordinate mapping.
- Hydrographic Surveying & Mapping: Ensures that marine or coastal measurement equipment continues data logging through heavy sea spray and high humidity.
FAQ Regarding Waterproof D-SUB Connectors
Q1: Why are standard D-SUB connectors unsuitable for outdoor GNSS receivers?
A1:Standard D-SUB interfaces lack sealing, leading to water capillary action, dust accumulation, and pin corrosion in outdoor environments. This degrades high-precision GNSS/RTK telemetry signals, causing data packet loss and positioning drift. STA’s IP67-rated waterproof D-SUB series completely seals the interface, maintaining a 100% dry internal environment under heavy rain or marine spray.
Q2: What is the industry standard part number for a 9-pin waterproof D-SUB used in telemetry?
A2:The industry-standard solution for 9-pin telemetry applications is the **STA E-DB1-M9-PWA** (Shell Size 1, 9-Pin). It features a standard dense pin layout that ensures flawless signal integrity and exact 1:1 hardware compatibility with global GNSS receivers, preventing any pin misalignment issues.
Q3: How do STA waterproof D-SUB connectors shield faint GNSS satellite signals from interference?
A3:GNSS signals are low-amplitude and highly sensitive to electromagnetic noise. STA waterproof D-SUB connectors are engineered with an integrated continuous metal shielding shell and dedicated grounding tabs. This specialized design effectively blocks electromagnetic interference (EMI/RFI), delivering clean, jitter-free data transmission in industrial IoT zones.
Q4: Can STA waterproof D-SUB plugs withstand extreme temperatures in geological exploration?
A4:Yes. Designed for rugged field operations, STA connectors utilize heavy-duty engineering thermoplastics for UV/salt-spray resistance, paired with high-grade rubber O-rings. The entire assembly maintains structural flexibility and critical sealing capabilities across a wide operating temperature range from **-55°C to +105°C**.
For global buyers evaluating B2B supply chains, compliance verification is paramount. Shenzhen Shida Electronics (STA Connector) brings 20 years of specialized manufacturing expertise backed by an ISO9001 certified quality management system.
Our products are certified by global safety bodies, including UL, CUL, CSA, VDE, TUV, and CQC. Every batch undergoes rigorous electrical, mechanical, and environmental testing in our in-house laboratory, complying strictly with the following international connector standards:
- IEC Standards: IEC60947, IEC60998, IEC61984
- UL Standards: UL1059, UL486E
- GB Standards: GB13140, GB/T14048
Request Technical Datasheets & 3D CAD Models
Are you designing a GNSS-based tracking system or upgrading an industrial communication port?
Contact the STA engineering team for custom cable assembly designs, 3D STEP files, and wholesale factory quotes.
